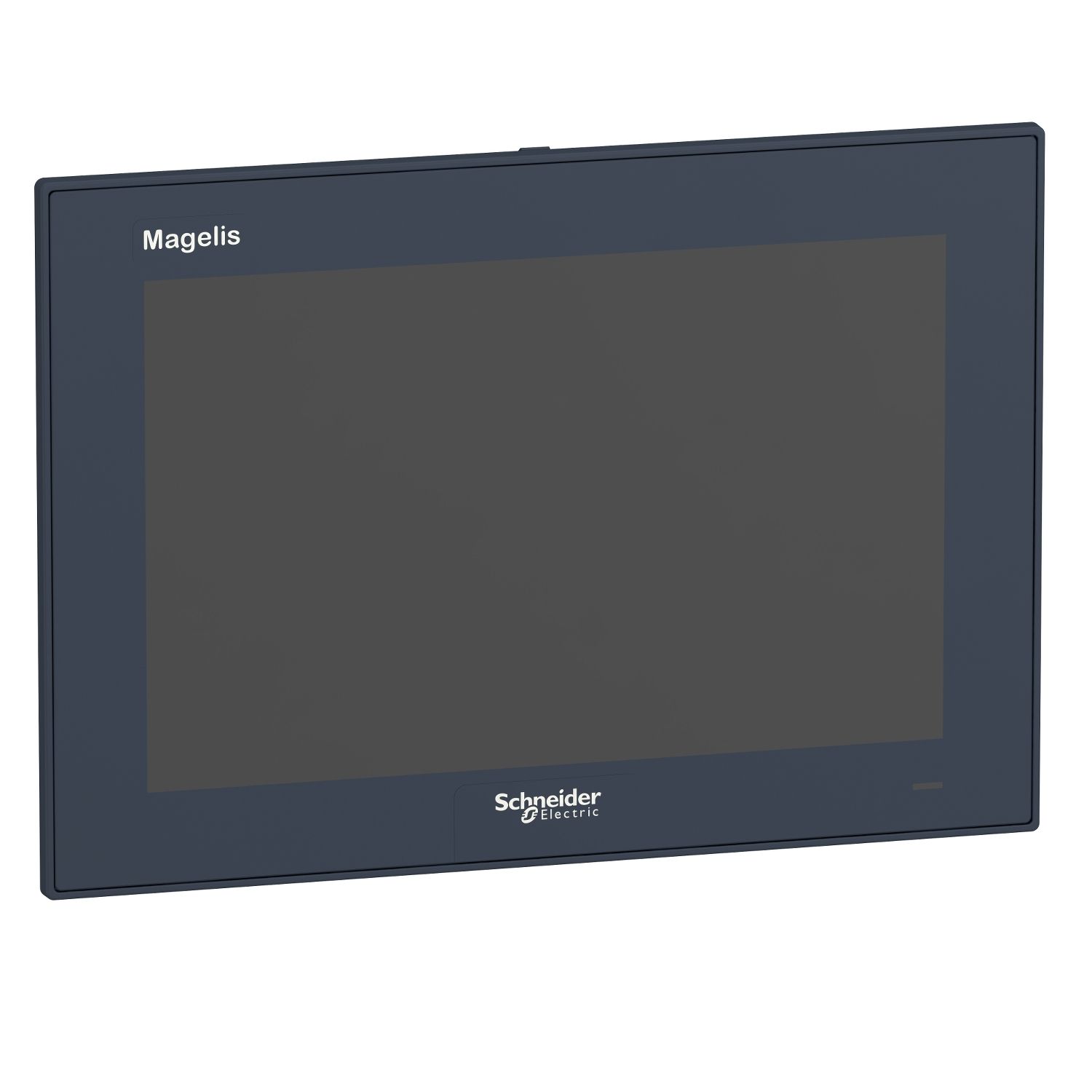

flat screen, Harmony iPC, 12inch wide display, multi touch, for modular box pc
Manufacturer: Schneider Electric
SKU: HMIDM6521
GTIN: 3606481245540
Old price: $2,417.80 inc GST
$2,182.06 inc GST
Supported cards
Supported cards
This product is part of the Harmony iPC range, an offer of Harmony HMIDM Modular Displays. This monitor is designed to be easily integrated with Harmony HMIBM Modular Box PCs to make a Panel PC and Harmony HMIDAD Display Adapter to make a Panel monitor. It features a 12" LED and LCD multi-touch screen with 1280 x 800 pixels with WXGA display resolution. It can be easily integrated with Harmony HMIBM Modular Box and Harmony HMIDAD Display Adapter. This product works at a power consumption from 53.65W to 58.65W and a rated voltage from 18V to 36V DC. Its dimensions are 488.3mm (width) x 309mm (height) x 28mm (depth) and weighs 2.25 kg. This display comes with IP66 degree of protection. It is CCC, C-Tick, EAC, IEC-Ex certified and conforms to UL 6110-2-201, CSA C22.2 No 142, Class I division 2 CSA, Class I division 2 ANSI/ISA standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.

Products specifications

Attribute name Attribute value
Main
Device mounting flush
Product compatibility Modular Box PC
Range of product Harmony iPC
Terminal type touchscreen display
Product or component type flat screen
Complementary
Display colour 16777216 colors
Display resolution 1280 x 800 pixels WXGA
Display size 12.1 inch
Touch panel multi-touch projected capactive technology (PCT)
Contrast ratio 500:1
Display type LED, colour TFT LCD
Supply voltage limits 18-36 V
Function available operate with water on screen
Backlight lifespan 50000 hours at 25 °C
Depth 7 mm, 28 mm enclosure:
Height 309 mm
Aspect ratio 16:9
Width 488.3 mm
Local signalling status LED
View angle horizontal x vertical 140 x 115°
Net weight 2.25 kg
Luminance 300 cd/m²
Touchscreen resolution 2048 x 2048
Inrush current 8.9 A
[Us] rated supply voltage 100...240 V AC power supply, 24 V DC power supply
Power consumption in W 53.65 W (Box PC HMIBMU), 58.65 W (Box PC HMIBMP)
Environment
Relative humidity 10-95 % non-condensing
Ambient air temperature for storage -30-70 °C
Pollution degree 2
IP degree of protection IP66
Product certifications C-Tick, CE, EAC, IEC-Ex
Standards class I division 2 ANSI/ISA 12-12-01,  UL 6110-2-201, CSA C22.2 No 142, class I division 2 CSA C22.2 No 213
Ambient air temperature for operation 0-55 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 4X
Vibration resistance 2 gn (f = 5-500 Hz) Cfast card, 2 gn (f = 5-500 Hz) SSD, 1 gn (f = 5-500 Hz) HDD
