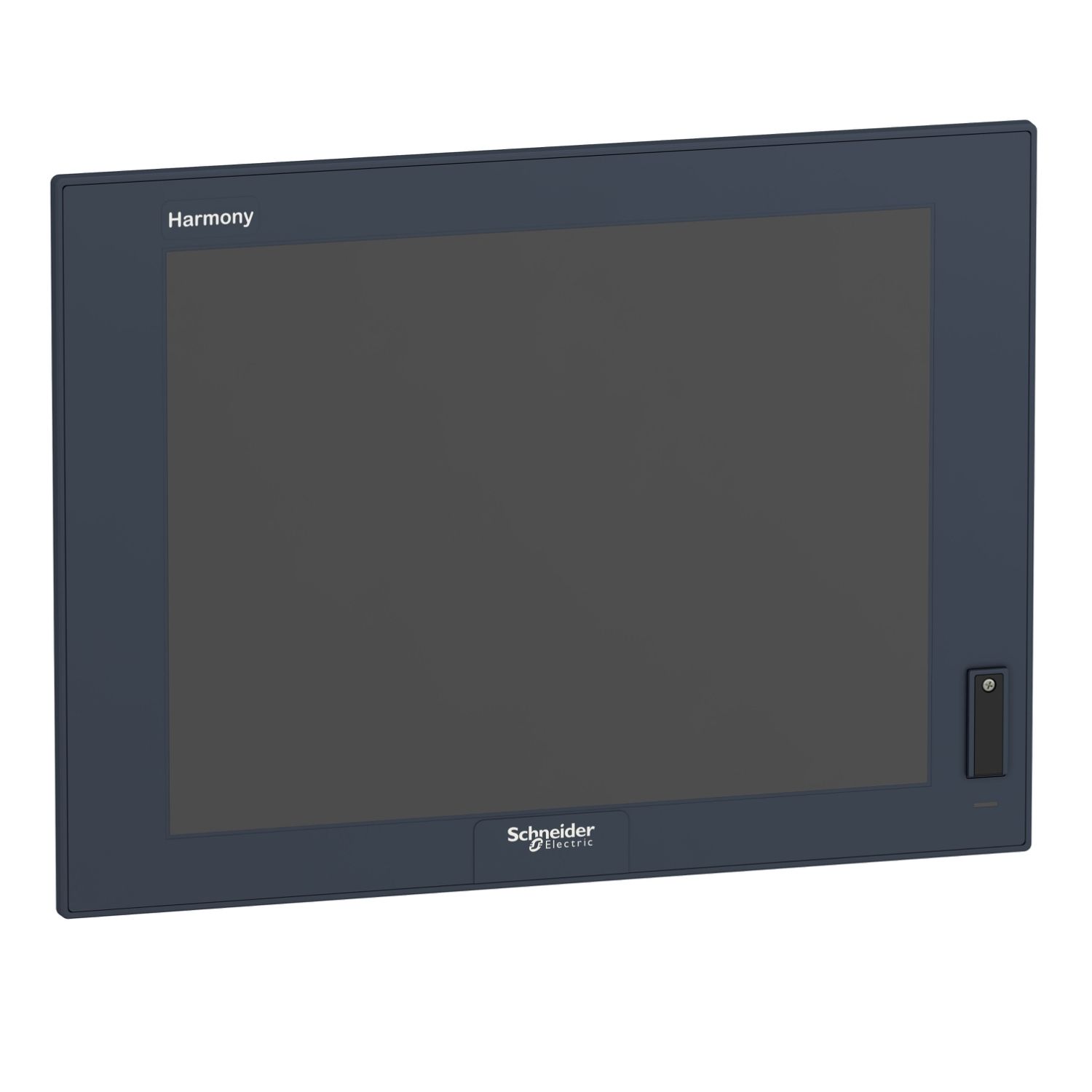

flat screen, Harmony iPC, 15inch wide display, single touch, for modular box pc
Manufacturer: Schneider Electric
SKU: HMIDM7421
GTIN: 3606480853661
Availability: Out of stock
Old price: $2,246.20 inc GST
$2,027.20 inc GST
Supported cards
Supported cards
This product is part of the Harmony iPC range, an offer of Industrial PC, Edge Box and Display. The touchscreen display features 15inch LED, colour TFT LCD display and supports 1024 x 768 pixels XGA resolution. It is a flat touchscreen display with a contrast ratio of 500/1 and a view angle of 140 x 115°. It supports 16777216 colours and 300cd/m² luminance with 50000 hours of backlight lifespan at 25°C. It is an IP66 and NEMA 4X rated product. Its dimensions are 390.7mm (width) x 28mm (depth) x 290mm (height) and weighs 4.2kg. This product is certified by ATEX, CE, IEC, C-Tick, GL and EAC. It meets Class I division 2 CSA C22.2 No 213, CSA C22.2 No 142, UL 6110-2-201 and Class I division 2 ANSI/ISA 12-12-01 standards. Harmony iPCs (formerly known as Magelis iPC) and Edge Box run at the Edge Control level of EcoStruxure, the Schneider Electric IIoT architecture. They enable secured communication from shop floor to IT. They offer smart application design and engineering to leverage asset performance, with end-to-end cybersecurity.

Products specifications

Attribute name Attribute value
Main
Device mounting flush
Terminal type touchscreen display
Product compatibility Modular Box PC
Range of product Harmony iPC
Product or component type flat screen
Complementary
Display colour 16777216 colors
Display size 15 inch
Touch panel single touch analogue resistive
Contrast ratio 500:1
Display type colour TFT LCD, LED
Supply voltage limits 18-36 V
Function available operate with water on screen
Depth 7 mm, 28 mm enclosure:
Height 290 mm
Aspect ratio 4:3
Integrated connection type USB 2.0 type A
View angle horizontal x vertical 140 x 115°
Net weight 4.2 kg
Luminance 300 cd/m²
Touchscreen resolution 2048 x 2048
Display resolution 1024 x 768 pixels XGA
Backlight lifespan 50000 hours at 25 °C
Width 390.7 mm
Local signalling status LED
Inrush current 8.9 A
[Us] rated supply voltage 100...240 V AC power supply, 24 V DC power supply
Pixel resolution 2048 x 2048
Power consumption in W 48.04 W (Box PC HMIBMU), 53.04 W (Box PC HMIBMP)
Environment
Ambient air temperature for storage -30-70 °C
Standards class I division 2 ANSI/ISA 12-12-01,  UL 6110-2-201, CSA C22.2 No 142, class I division 2 CSA C22.2 No 213
Operating altitude 2000 m
Relative humidity 10-95 % non-condensing
Pollution degree 2
IP degree of protection IP66
Product certifications CE, Marine GL Bridge, IEC-Ex, C-Tick, ATEX, EAC
Ambient air temperature for operation 0-55 °C
NEMA degree of protection NEMA 4X
Vibration resistance 2 gn (f = 5-500 Hz) Cfast card, 2 gn (f = 5-500 Hz) SSD, 1 gn (f = 5-500 Hz) HDD
