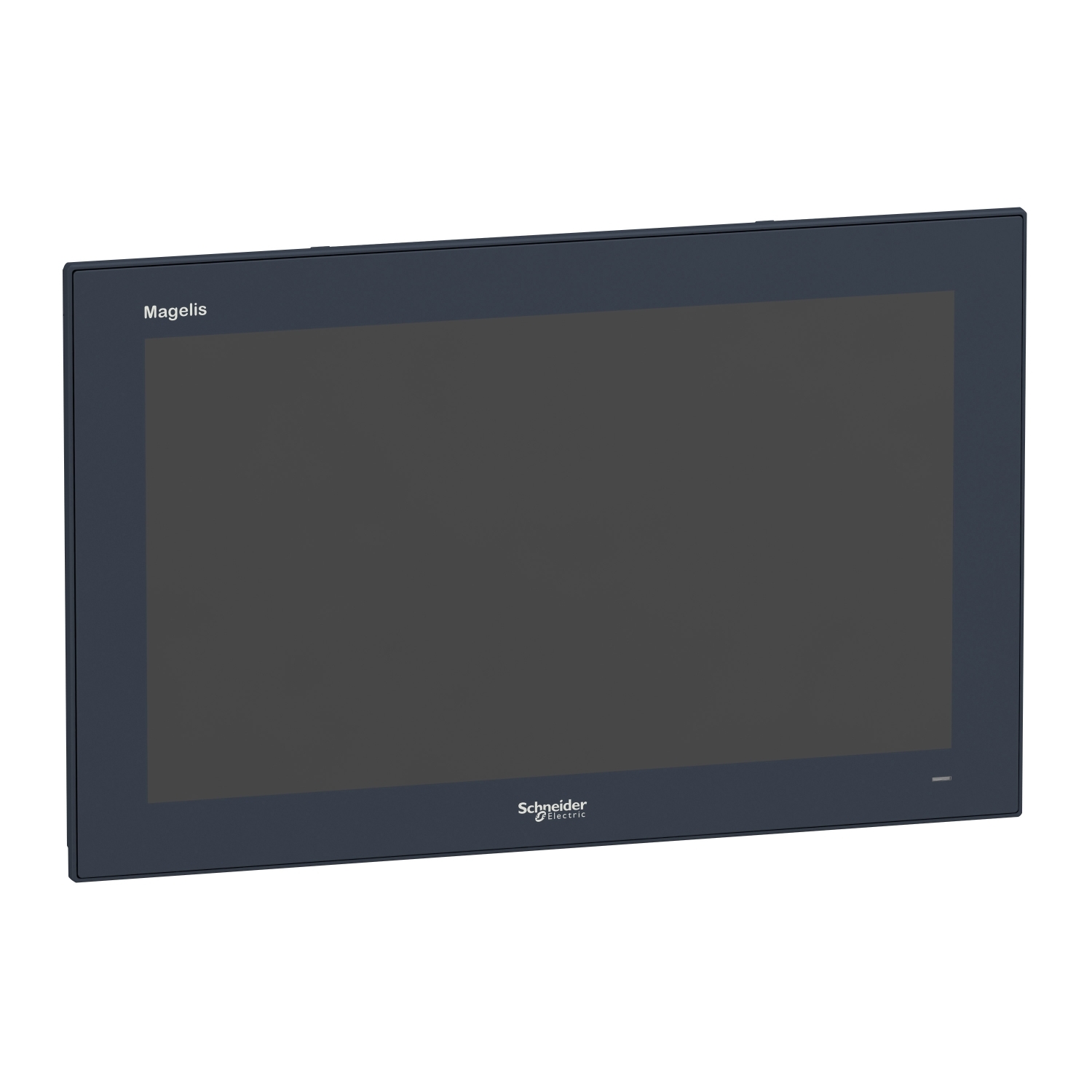

This product is part of the Harmony iPC range, an offer of Harmony HMIDM Modular Displays. This monitor is designed to be easily integrated with Harmony HMIBM Modular Box PCs to make a Panel PC and Harmony HMIDAD Display Adapter to make a Panel monitor. It features a 19" LED and LCD multi-touch screen with 1366 x 768 pixels with full HD display resolution. It can be easily integrated with Harmony HMIBM Modular Box and Harmony HMIDAD Display Adapter. This product works at a power consumption from 58.28W to 63.28W and a rated voltage of 24V DC. Its dimensions are 488.3mm (width) x 309mm (height) x 28mm (depth) and weighs 5.2 kg. This display comes with IP66 degree of protection. It is CCC, C-Tick, EAC certified and conforms to UL 60950, CSA C22.2 No 60950 standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device mounting | flush |
| Terminal type | touchscreen display |
| Product compatibility | Modular Box PC |
| Range of product | Harmony iPC |
| Product or component type | flat screen |
| Complementary | |
| Display colour | 16777216 colors |
| Display size | 18.5 inch |
| Touch panel | multi-touch projected capactive technology (PCT) |
| Contrast ratio | 500:1 |
| Display type | LED, colour TFT LCD |
| Supply voltage limits | 18-36 V |
| Function available | operate with water on screen |
| Depth | 7 mm, 28 mm enclosure: |
| Height | 309 mm |
| Aspect ratio | 16:9 |
| View angle horizontal x vertical | 150 x 140° |
| Net weight | 5.2 kg |
| Luminance | 300 cd/m² |
| Touchscreen resolution | 4096 x 4096 |
| Display resolution | 1366 x 768 pixels WHD FWXGA |
| Backlight lifespan | 50000 hours at 25 °C |
| Width | 488.3 mm |
| Local signalling | status LED |
| Inrush current | 8.9 A |
| [Us] rated supply voltage | 100...240 V AC power supply, 24 V DC power supply |
| Pixel resolution | 1366 x 768 |
| Power consumption in W | 58.28 W (Box PC HMIBMU), 63.28 W (Box PC HMIBMP) |
| Environment | |
| Ambient air temperature for storage | -30-70 °C |
| Standards | CSA C22.2 No 60950, UL 60950 |
| Operating altitude | 2000 m |
| Relative humidity | 10-95 % non-condensing |
| Pollution degree | 2 |
| IP degree of protection | IP66 |
| Product certifications | CCC, C-Tick, EAC |
| Ambient air temperature for operation | 0-55 °C |
| NEMA degree of protection | NEMA 4X |
| Vibration resistance | 2 gn (f = 5-500 Hz) Cfast card, 2 gn (f = 5-500 Hz) SSD, 1 gn (f = 5-500 Hz) HDD |
