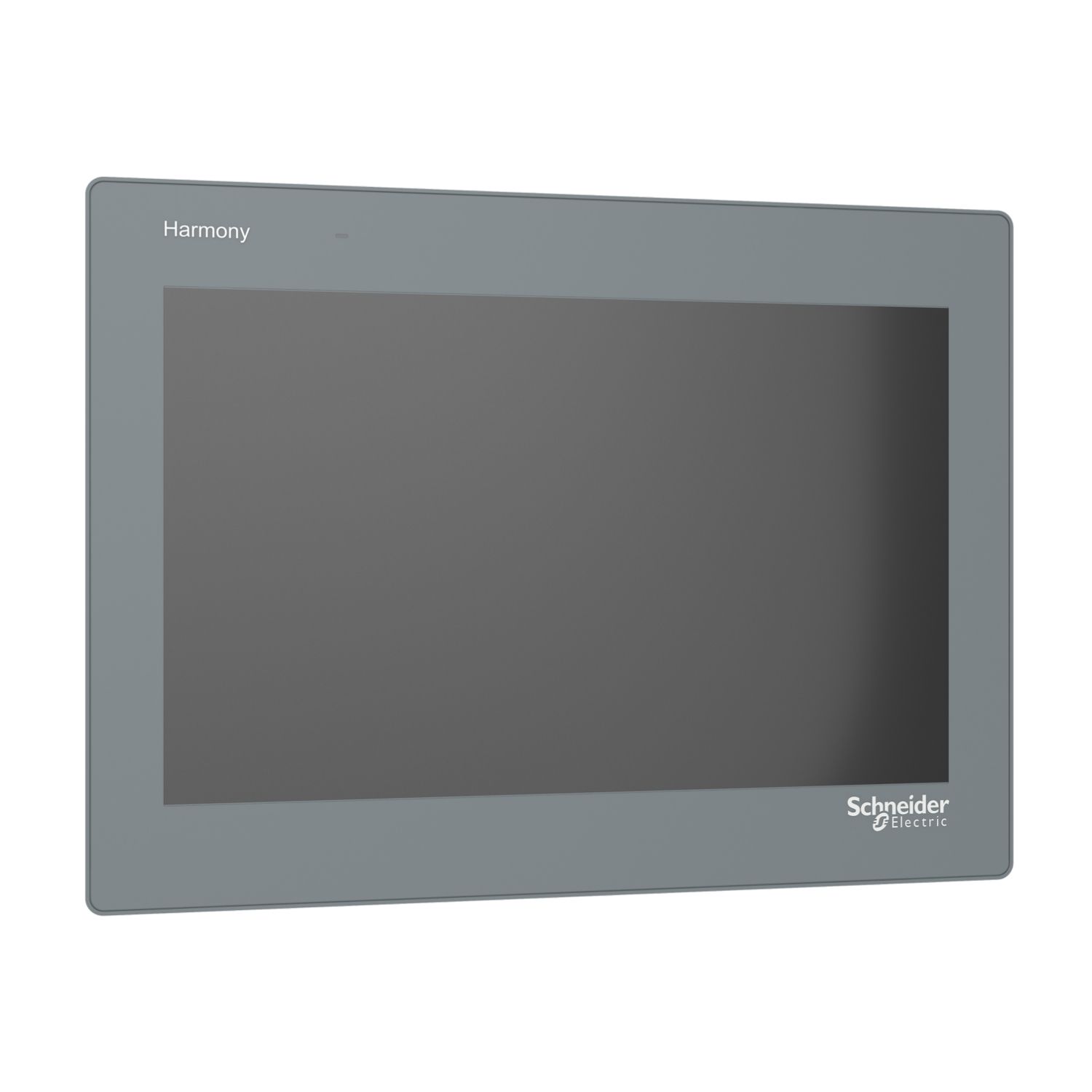

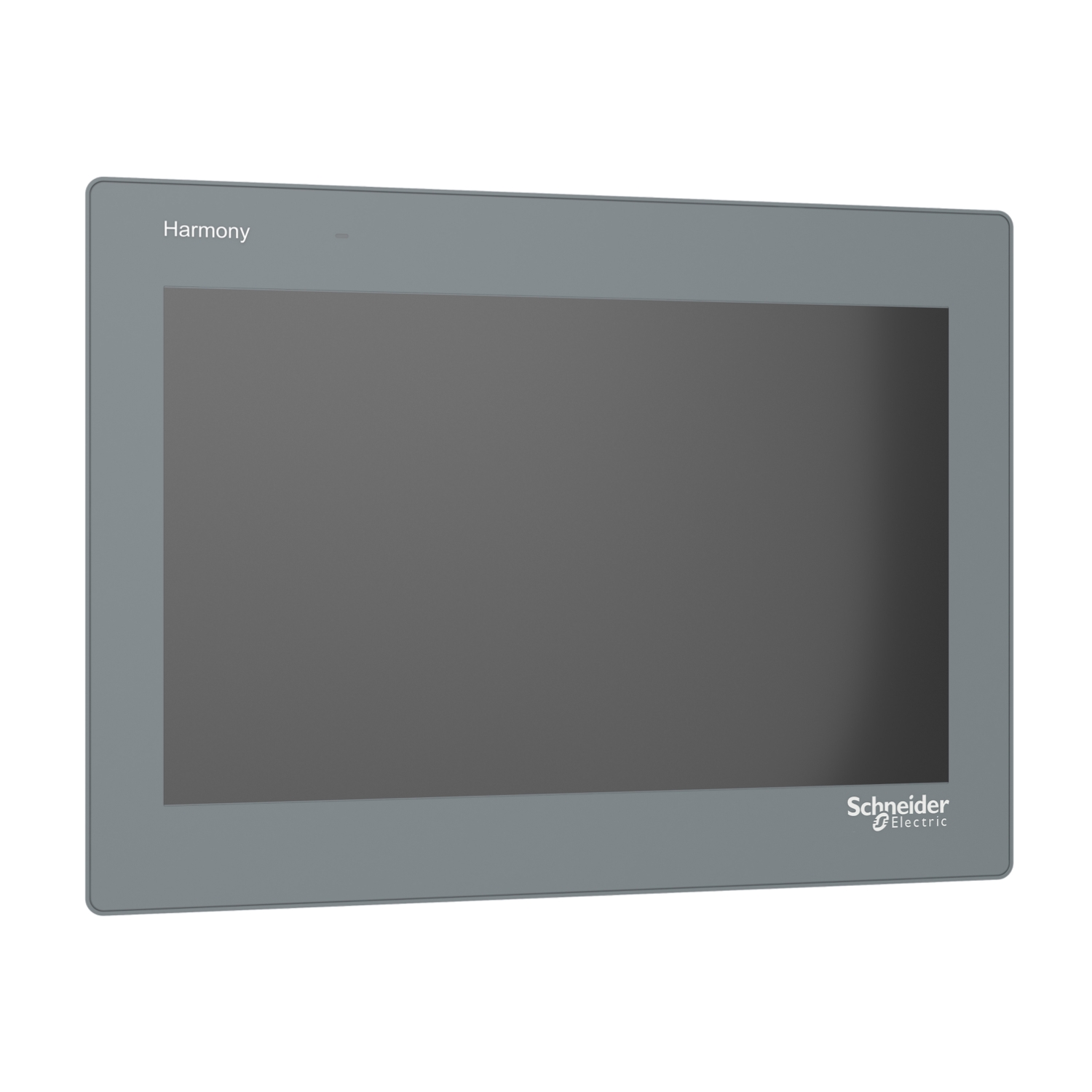

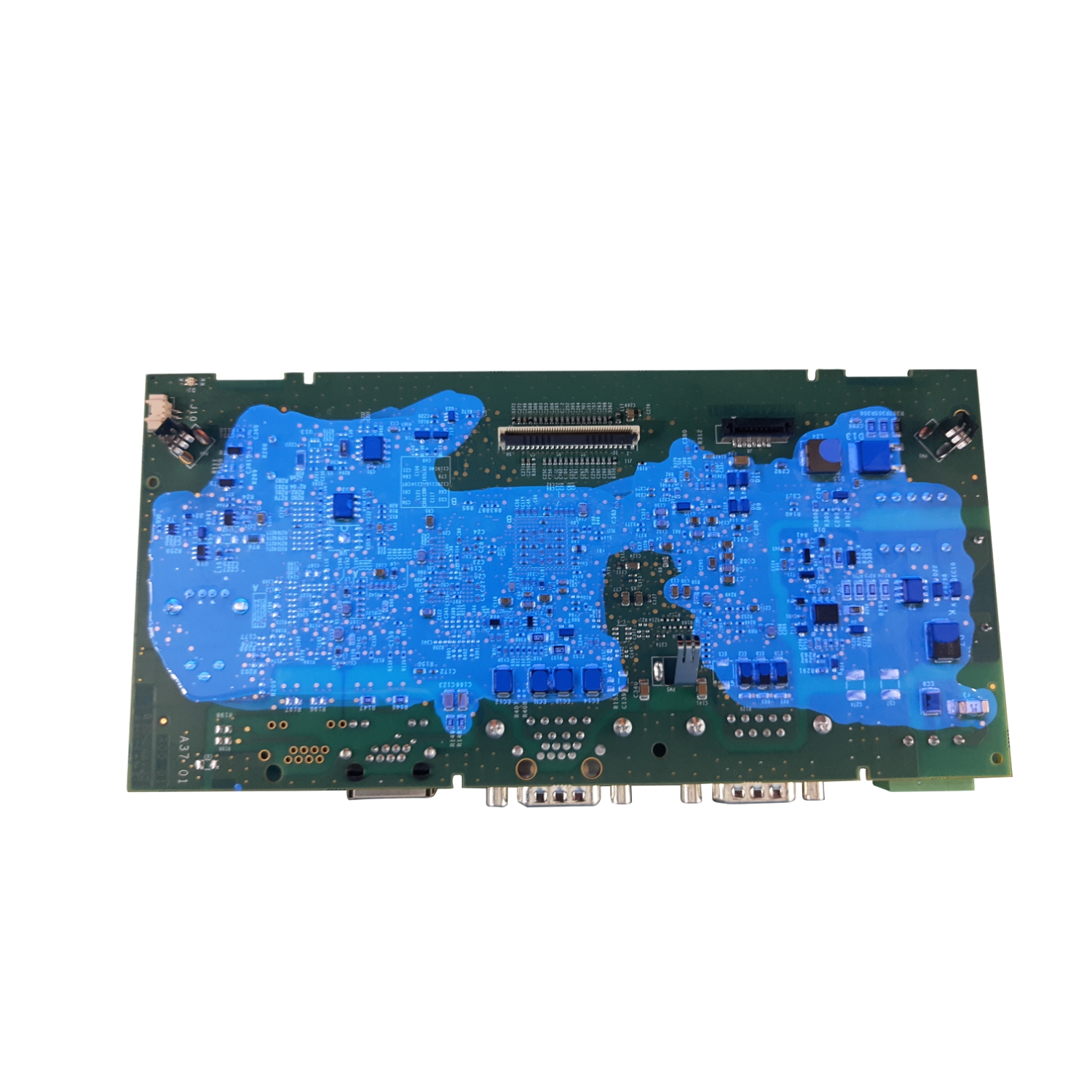

HMIET6600 is an essential touchscreen panel of the Schneider Electric's Easy Harmony ET6 range. This single touch resistive HMI Ethernet panel has high resolution and more colors. This HMI interface is 12.1 inch wide with 16 million colors and 1,280 x 800 pixel resolution (WXGA). It is powered by Vijeo Designer Basic software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 256 MB as system and application memory, 128 KB nonvolatile memory. This HMI ET6 supports Ethernet port, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 310.5mm (width) x 232.5mm (height) x 50mm (depth) and weighs 1.62Kg. This is intended for industries like Packaging, HVAC, Pump, Electronics, battery, machine tools and material working etc. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like UL, CE, KC, EAC, China RoHS, REACH. The maintenance accessories (installation fastener screw, power supply connector, battery, etc.) and external options (USB download cable, USB extension cable, screen protection sheet, etc.) are available with HMI ET6. It is designed for panel mounting by 4 or 6 fastener screws (the quantity of screws depends on screen size). This range is designed with high resolution screen, more colors, and Ethernet capability to enable OEMs to optimize their HMI design and investment. The degree of protection is IP65F.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Processor name | ARM Cortex-A8 |
| Range of product | Easy Harmony ET6 |
| Software designation | Vijeo Designer Basic |
| Operating system | VxWorks |
| Product or component type | touch panel screen |
| Complementary | |
| Memory description | backup memory 128 kB, user data memory 256 MB, device memory 256 MB |
| Character font | Taiwanese (traditional Chinese), Korean, Katakana, Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII (European characters), ASCII |
| Display type | colour TFT LCD |
| Display colour | 16 million colours |
| Downloadable protocols | third party protocols, Uni-TE, Modbus |
| Display size | 12 inch |
| Fixing mode | by 4 screws, mounting on 1.6...5 mm thick panel |
| Processor frequency | 800 MHz |
| Power consumption in W | 14 W |
| Height | 233 mm |
| Depth | 50 mm |
| Realtime clock | built-in 10...90 % RH, built-in 0...50 °C |
| Width | 311 mm |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 USB 2.0 type micro Bback, 1 USB 2.0 type Aback, 1 Ethernetbottom, COM2 serial link (rate: 2400...187500 bps)bottom, 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom, 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom |
| Local signalling | status LED, off for power supply (OFF), status LED red, steady for power supply (ON), status LED orange, steady for software starting up, status LED green, steady for operating |
| Touch panel | single touch analogue resistive |
| Net weight | 1.62 kg |
| Display resolution | 1280 x 800 pixels WXGA |
| Supply | external supply |
| Cut-out dimensions | 295 x 217 mm panel cut dimension |
| Inrush current | 30 A |
| Brightness | 16 levels |
| Number of pages | 200 application pages |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Product brand | Schneider Electric |
| Environment | |
| Relative humidity | 10-90 % non-condensing |
| Ambient air temperature for storage | -20-60 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| IP degree of protection | IP65 (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2 |
| Electromagnetic compatibility | electrostatic discharge immunity test - test level: 8 kV (air discharge), electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3, electrical fast transient/burst immunity test - test level: 1 kV (signal ports), electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 |
| Immunity to microbreaks | 5 ms |
| Ambient air temperature for operation | 0-50 °C |
| Operating altitude | 2000 m |
| Front material | plastic |
| Enclosure material | PC |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2 |
| Vibration resistance | 9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 |
| Standards | CSA C22.2 No 61010-1-201, UL 61010-2-201, EN 61131-2, EN 61000-6-2, EN 61000-6-4 |
| Product certifications | KC-Mark (pending), EAC (pending), UL, CE |
