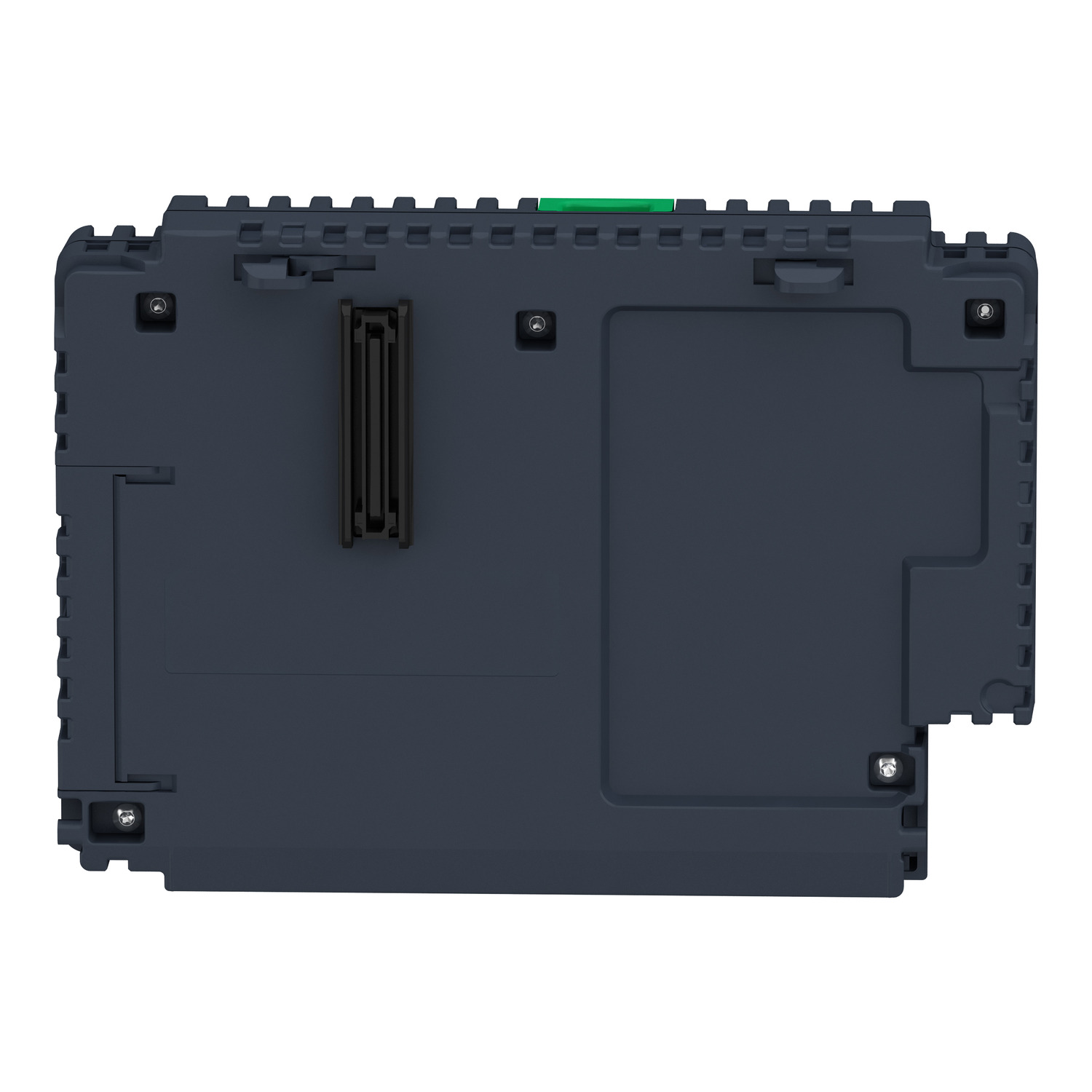

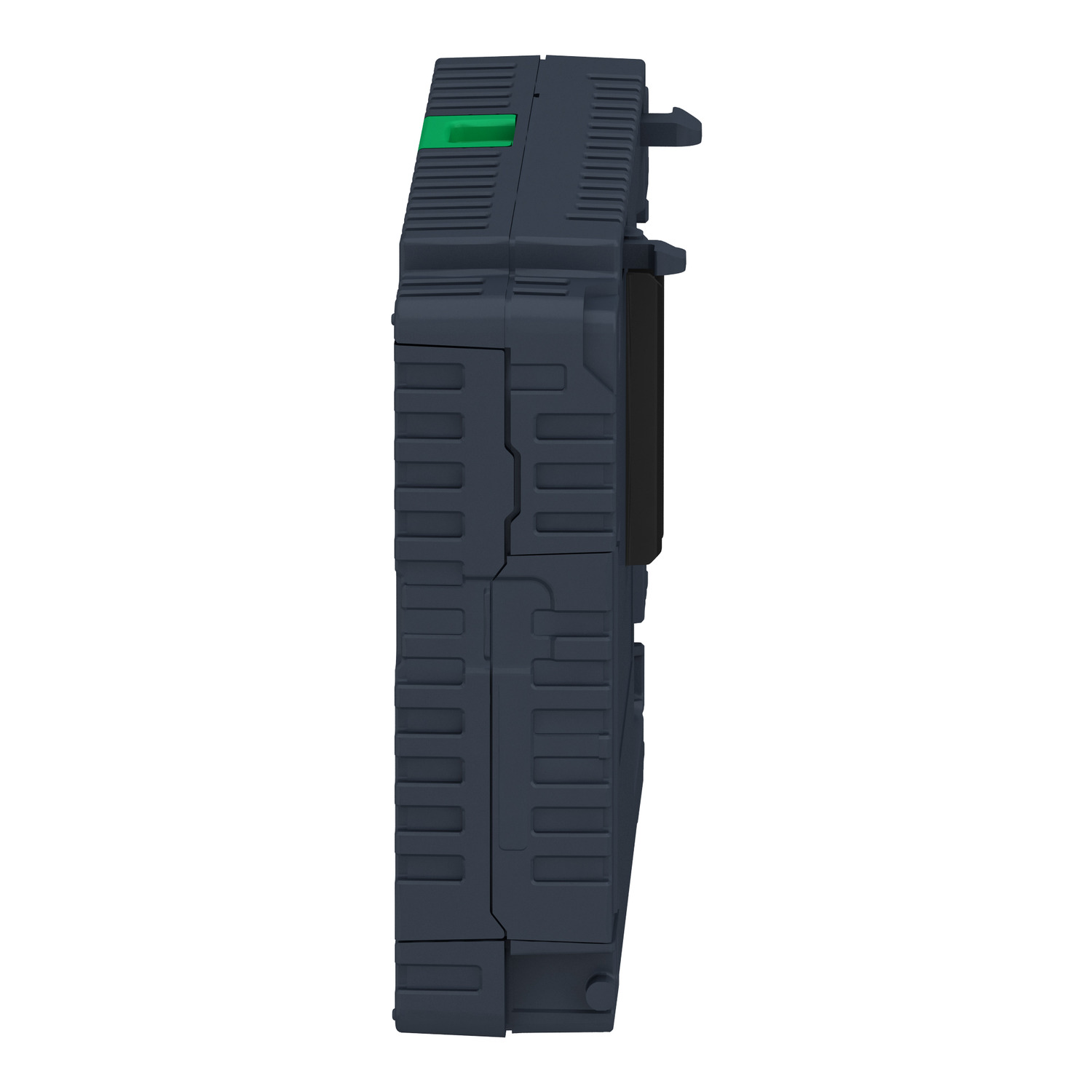

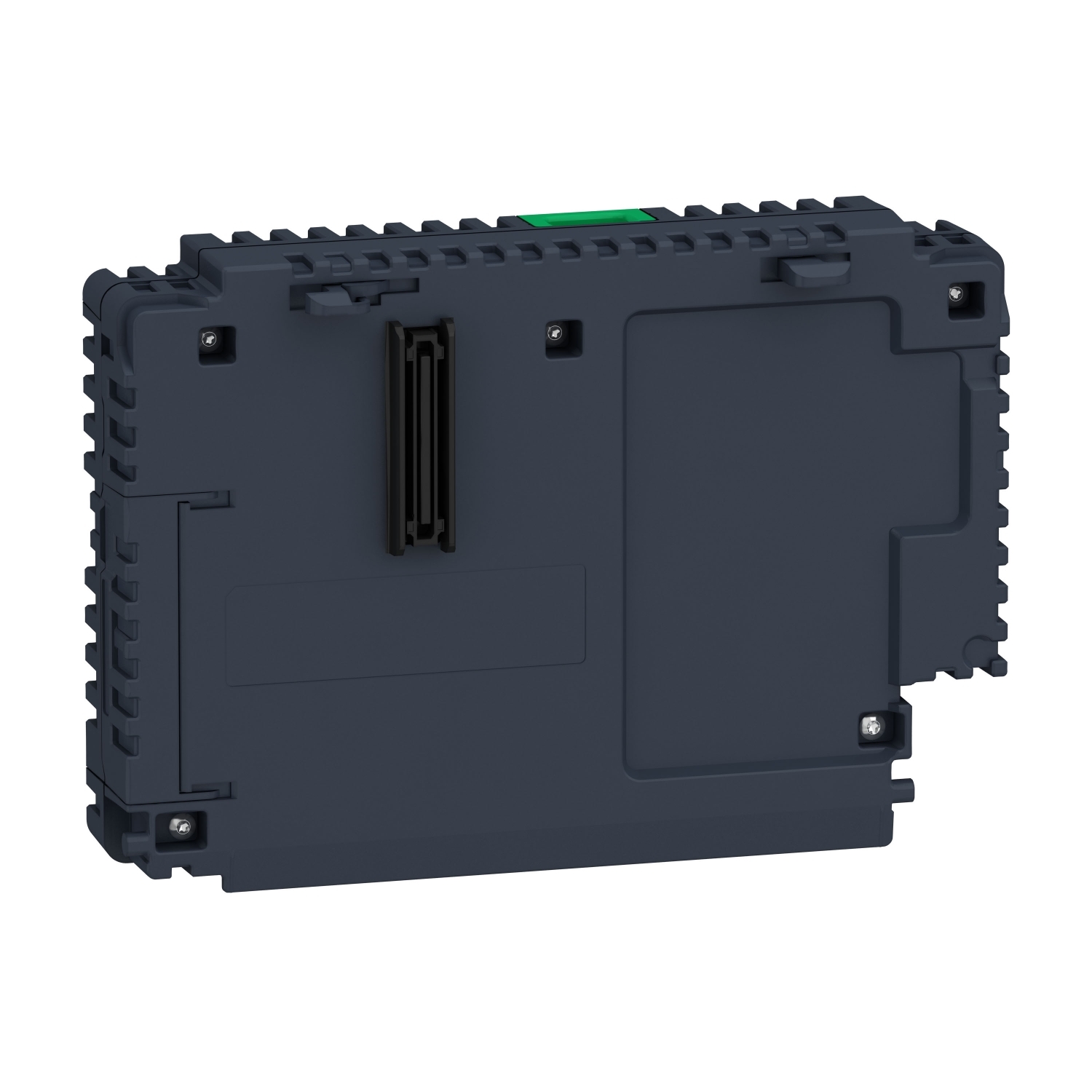

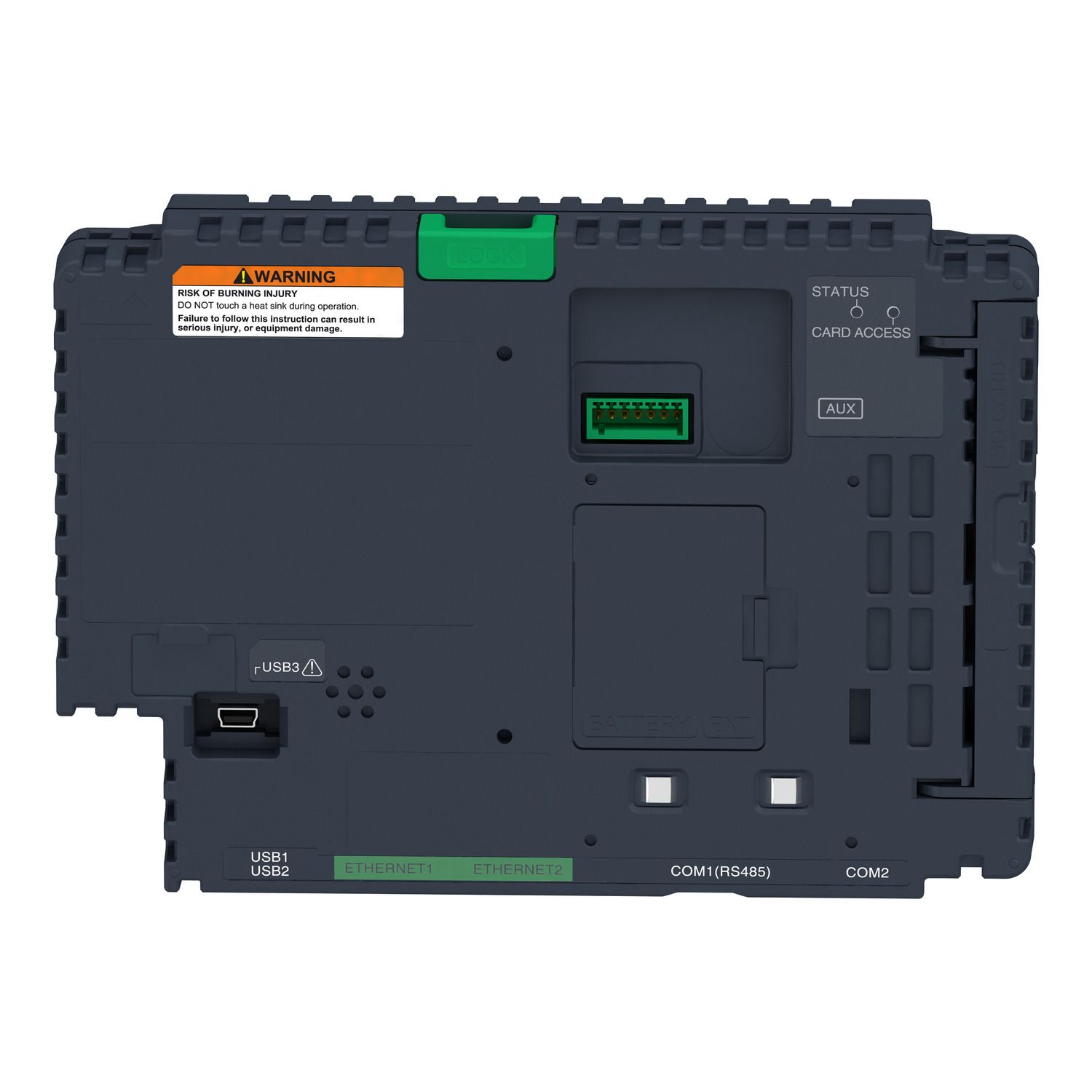

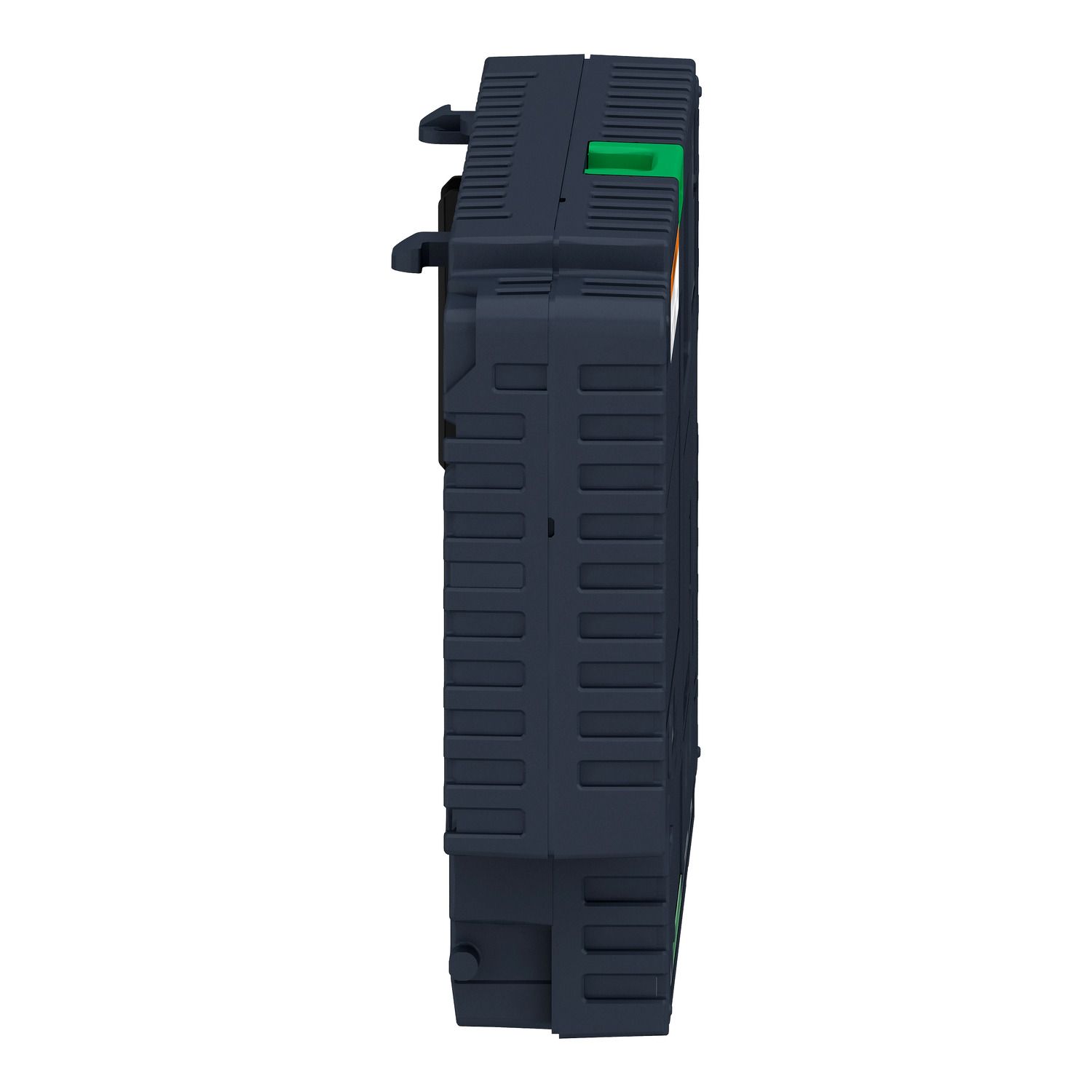

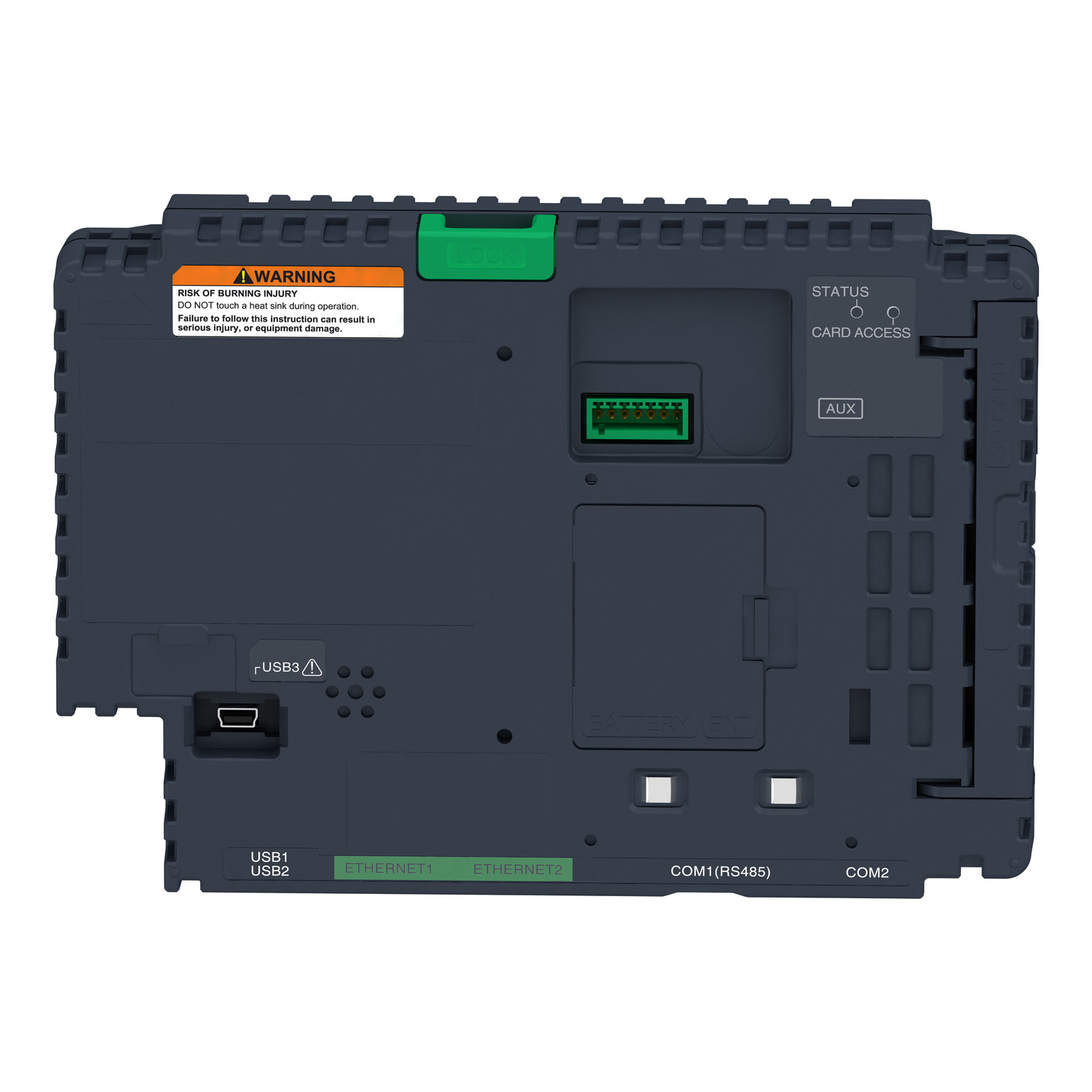

This Magelis GTU premium box module has 256MB of RAM, a RISC CPU, 2 SD card slots, including a 1GB pre-installed card. It also has 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port and 1 Ethernet TCP/IP port. This universal premium box is designed for building advanced HMI systems together with Magellis universal GTU panels. It also offers a LED power indicator and a lock button to attach the box module and display. It has high performance RISC CPU for low latency display and automation. Its RS485 and Ethernet ports, ideal to supervise and control complex systems and machines.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | Premium Box |
| Range of product | Harmony GTU |
| Range compatibility | Harmony GTU |
| Product or component type | base unit |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Complementary | |
| Operating system | Harmony |

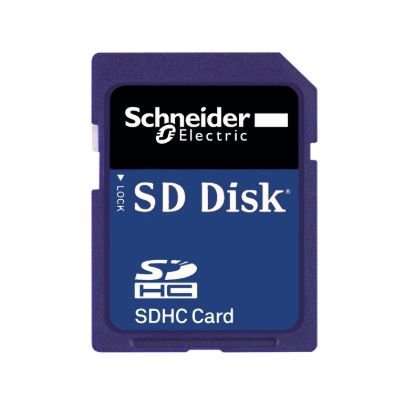

| Data storage equipment | 1 GB SD card |
| Type of cooling | natural convection |
| Processor name | CPU RISC 600 MHz |
| Depth | 45 mm |
| Communication port protocol | Uni-Telway, Modbus TCP/IP, Modbus |
| Software package | Vijeo Designer run time |
| Height | 131 mm |
| Width | 188 mm |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Integrated connection type | USB 2.0 port mini B USB, USB 2.0 port with 2 USB type A, expansion unit fieldbus card, auxiliary port terminal block, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s, COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s, COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s, Ethernet TCP/IP with 2 RJ45 |
| Memory description | 512 KB NVRAM backup memory, 256 MB RAM internal (2 x 13 mm board) |
| Net weight | 0.9 kg |
| Environment | |
| Relative humidity | 10-90 % non-condensing |
| Ambient air temperature for storage | -20-60 °C |
| Pollution degree | 2 conforming to IEC 61131-2 ed.3 |
| Electromagnetic compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Product certifications | UKEX, UKCA, RINA, LR, DNV, CCS, BV, ABS, EAC, cUL, KC, GL, RCM, IEC-Ex, ATEX, cULus, CE |
| Standards | IEC 61132-2, class I division 2 CSA C22.2 No 213, UL 508, ANSI/ISA 12-12-01, CSA C22.2 No 142 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000 m |
| Vibration resistance | 9.8 m/s² (f = 9-150 Hz) conforming to IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) conforming to IEC 61131-2 |
Only registered users can write reviews
Related products

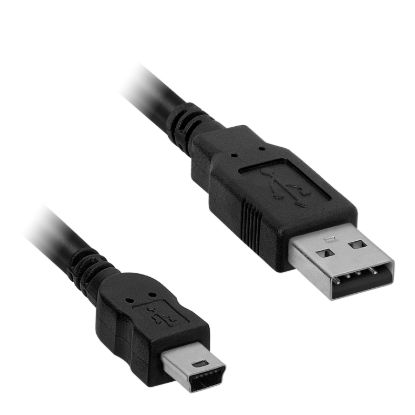

connecting cable, Modicon M340, USB, PC or terminal, for processor, 1.8m
