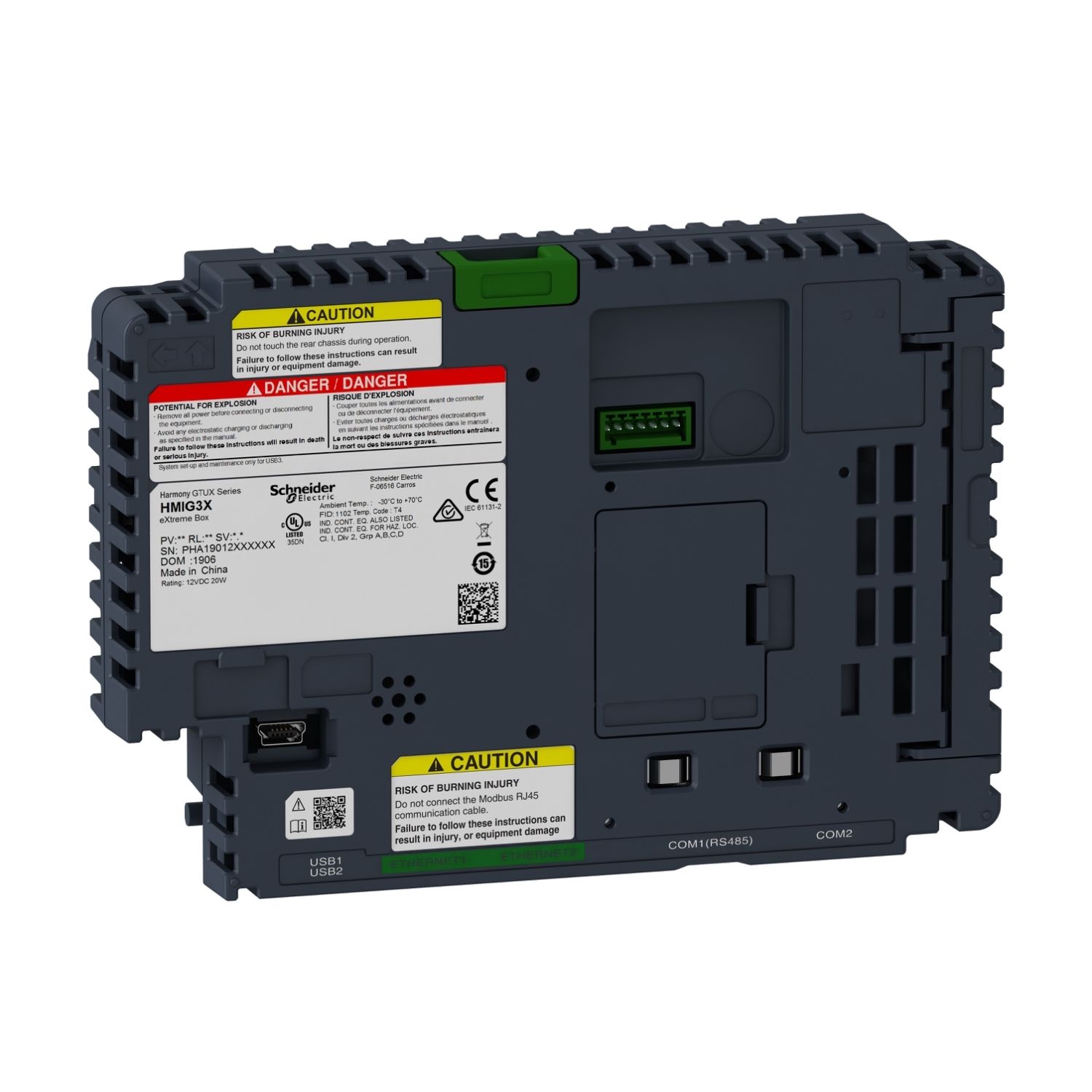

This product is part of the Harmony GTUX range, an offer of eXtreme Box modules. These eXtreme outdoor Box modules are a high-performance range of HMIs that are ideal for harsh outdoor environments. It is designed with backup memory of NVRAM 512kB, system memory of 1GB, and internal RAM of 256MB. It offers atmospheric resistance with partial conformal coating. It comes with 2x Ethernet TCP/IP protocol and can operate between temperature range of -30 to 70 °C. This product works at a power consumption of 29W and a rated voltage from 12V to 24V DC. Its dimensions are 188mm (width) x 131mm (height) x 45mm (depth) and weighs 0.9 kg. It is compatible with HMIDT35X, HMIDT65X, HMIDT75X displays. It is CE certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards. Harmony GTUX provides powerful visualization and control in extreme environment fully integrated into EcoStruxure Machine Expert software.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | eXtreme Box |
| Range of product | Harmony GTUX |
| Product or component type | base unit |
| [Us] rated supply voltage | 12 V DC power supply |
| Power consumption in W | 20.0 W |
| Complementary | |
| Operating system | Harmony |
| Data storage equipment | 1 GB SD card |
| Type of cooling | natural convection |
| Processor name | CPU RISC 600 MHz |
| Software package | EcoStruxure Operator Terminal Expert, Vijeo Designer run time |
| Height | 131 mm |
| Depth | 45 mm |
| Width | 188 mm |
| Integrated connection type | USB 2.0 port mini B USB, USB 2.0 port with 2 USB type A, expansion unit fieldbus card, auxiliary port terminal block, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s, COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s, COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s, Ethernet TCP/IP with 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T |
| Communication port protocol | Uni-Telway, Modbus serial, Modbus TCP/IP |
| Memory description | 512 KB NVRAM backup memory, 256 MB RAM internal (2 x 13 mm board) |
| Net weight | 0.9 kg |
| Number of slots | 2 slot(s) for SD card |
| Environment | |
| Resistance to fast transients | 2 kV (power ports) conforming to IEC 61000-4-4, 1 kV (signal ports) conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV air discharge conforming to EN/IEC 61000-4-2 level 3, 6 kV contact discharge conforming to EN/IEC 61000-4-2 level 3 |
| Relative humidity | 10-90 % non-condensing |
| Environmental characteristic | corrosive gas free |
| Ambient air temperature for storage | -30-70 °C |
| Pollution degree | 2 conforming to EN 61131-2 Ed.3 |
| Electromagnetic compatibility | electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3 |
| Standards | IEC 61132-2, CSA C22.2 No 61010-1, CSA C22.2 No 213, UL 121201, UL 61010 |
| Ambient air temperature for operation | -30-70 °C |
| Operating altitude | 2000 m |
| Vibration resistance | 19.6 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2, 7 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 |
| Shock resistance | 392 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2 |
| Product certifications | UKEX, UKCA, CSA, UL, IEC-Ex, ATEX zone 2/22, EAC, RCM, KC, CE |
