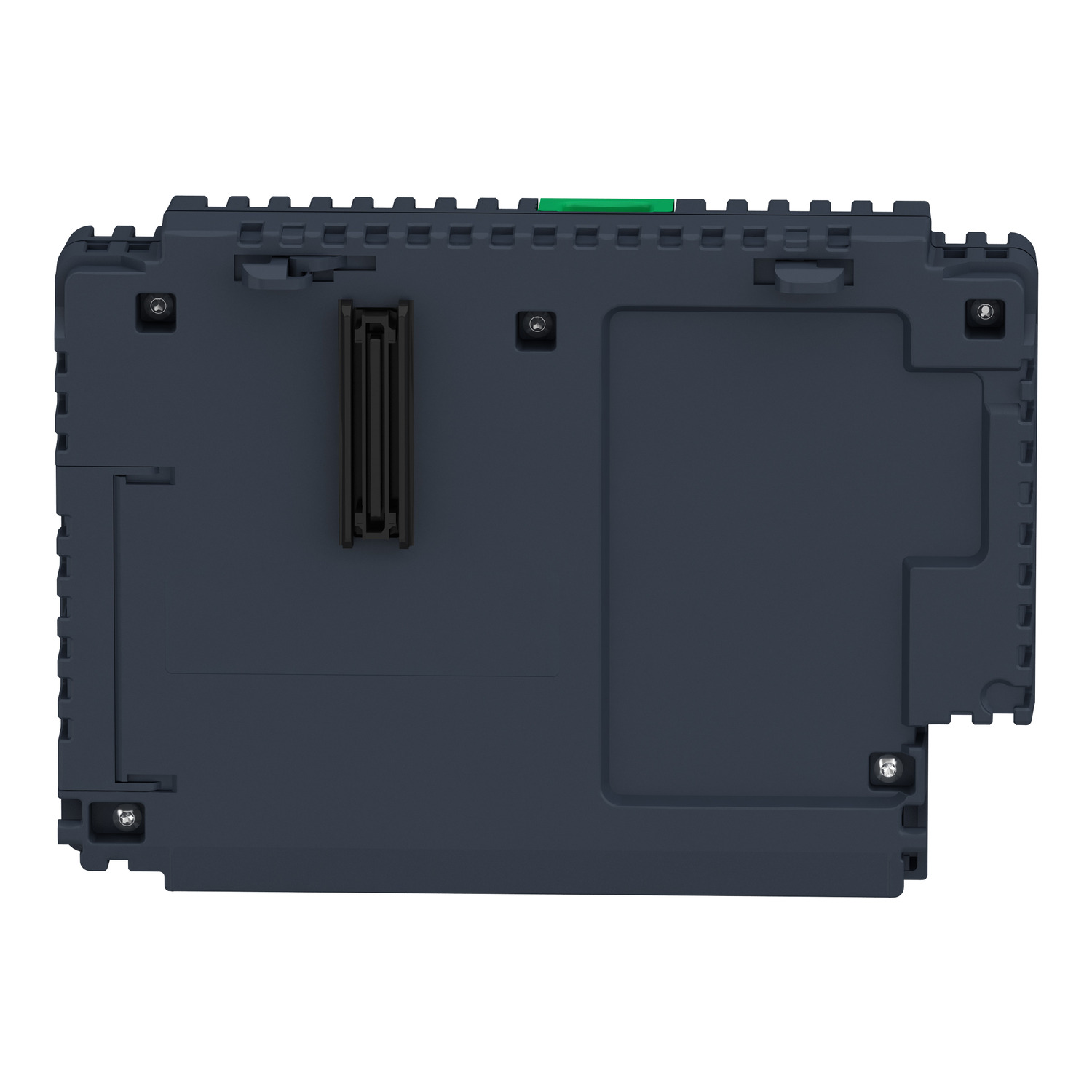

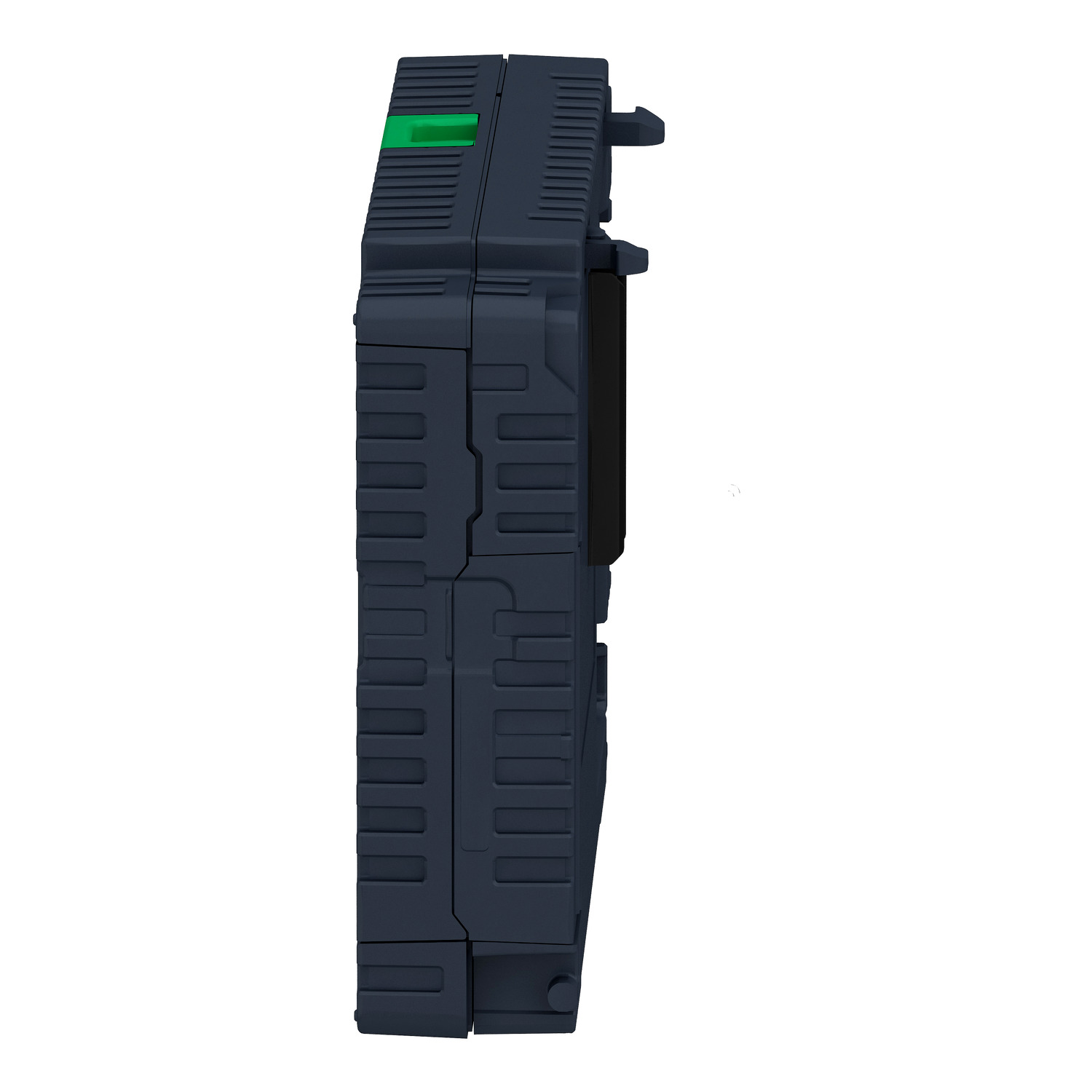

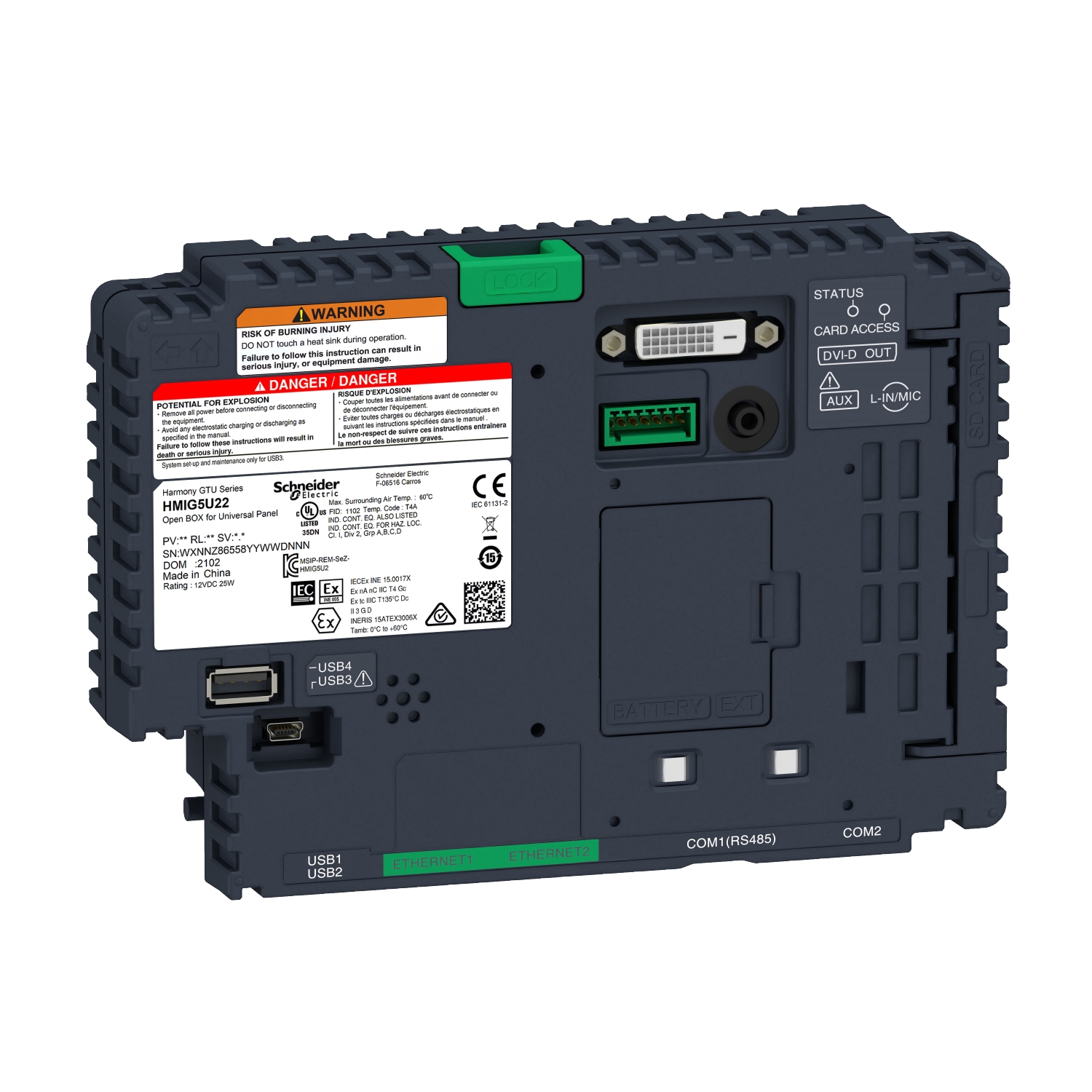

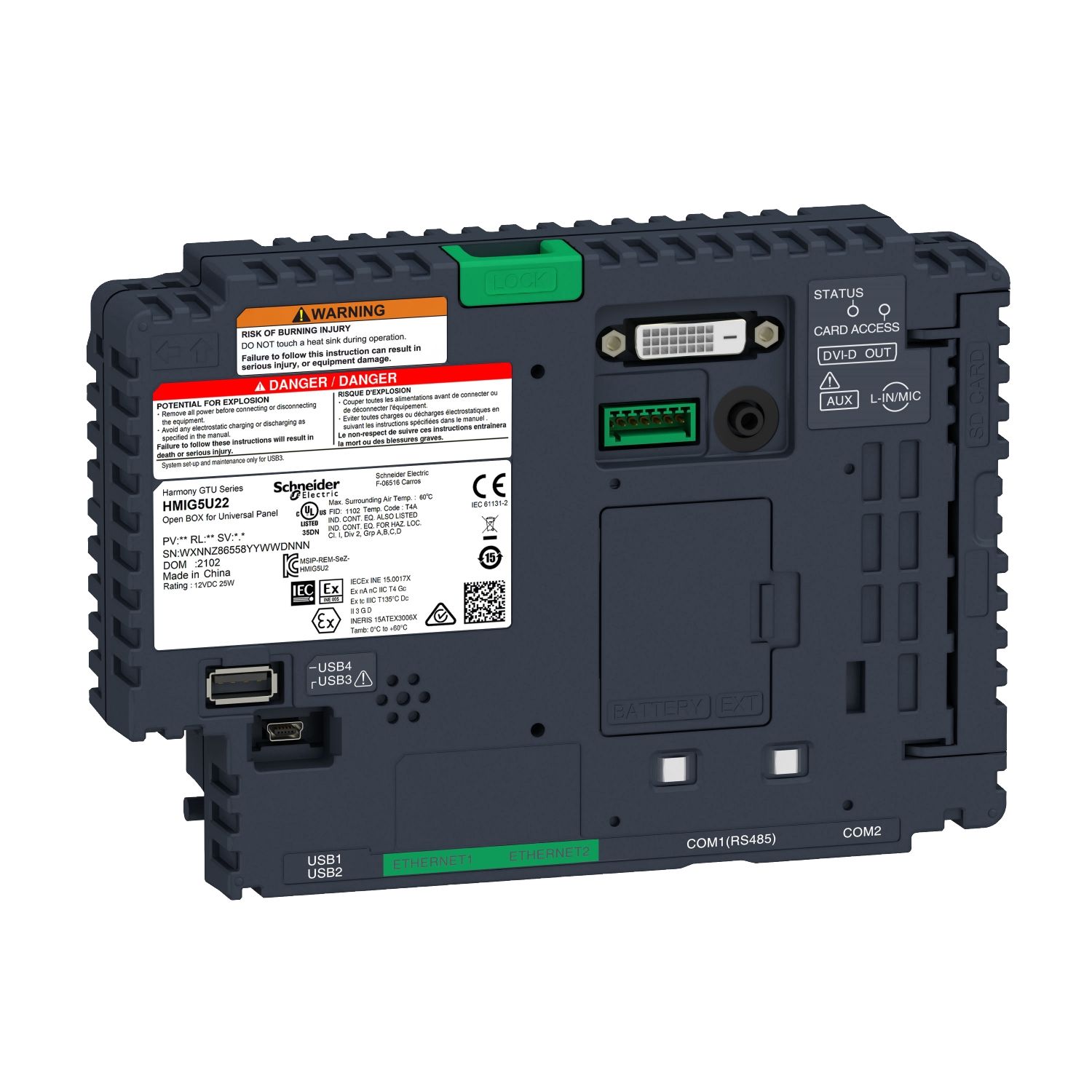

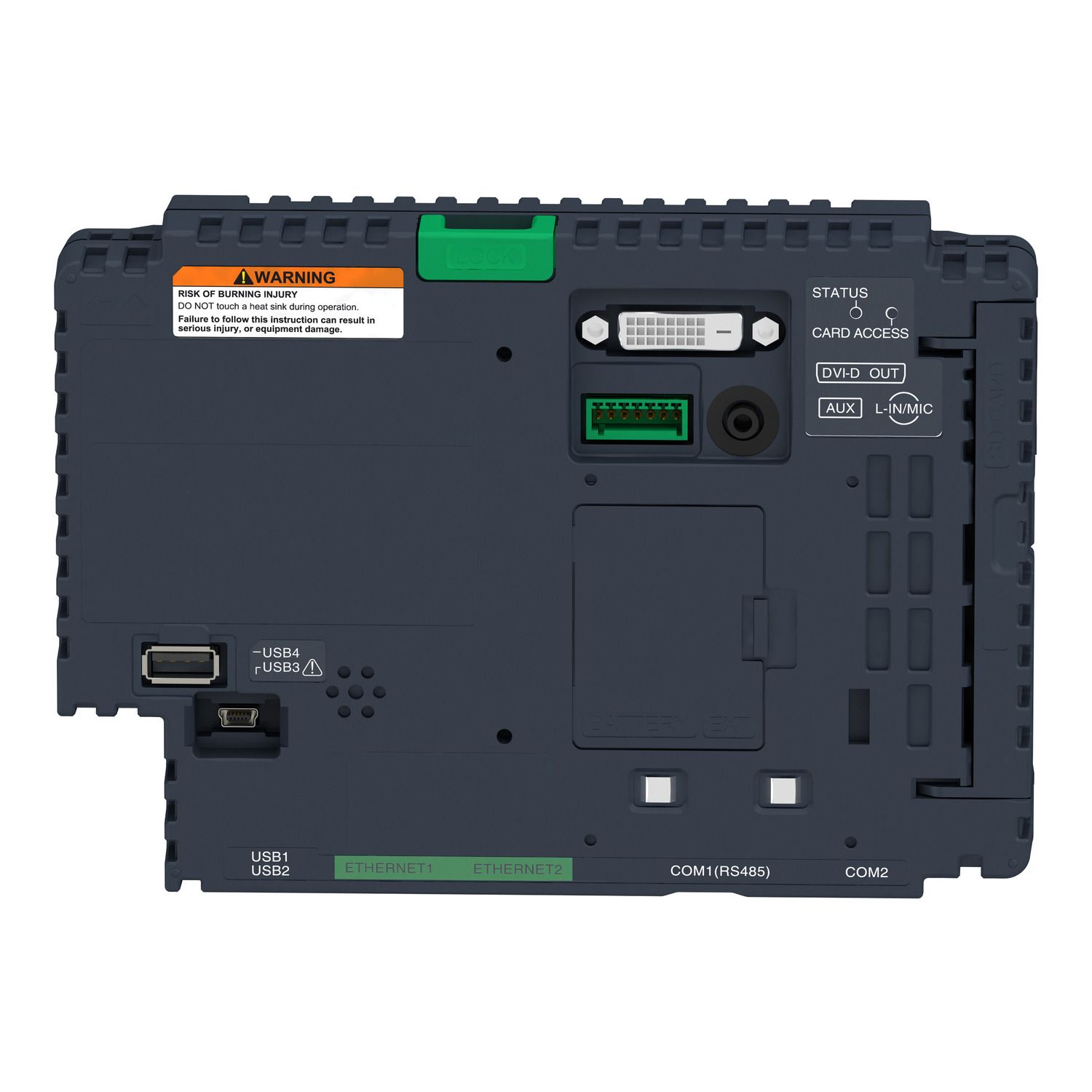

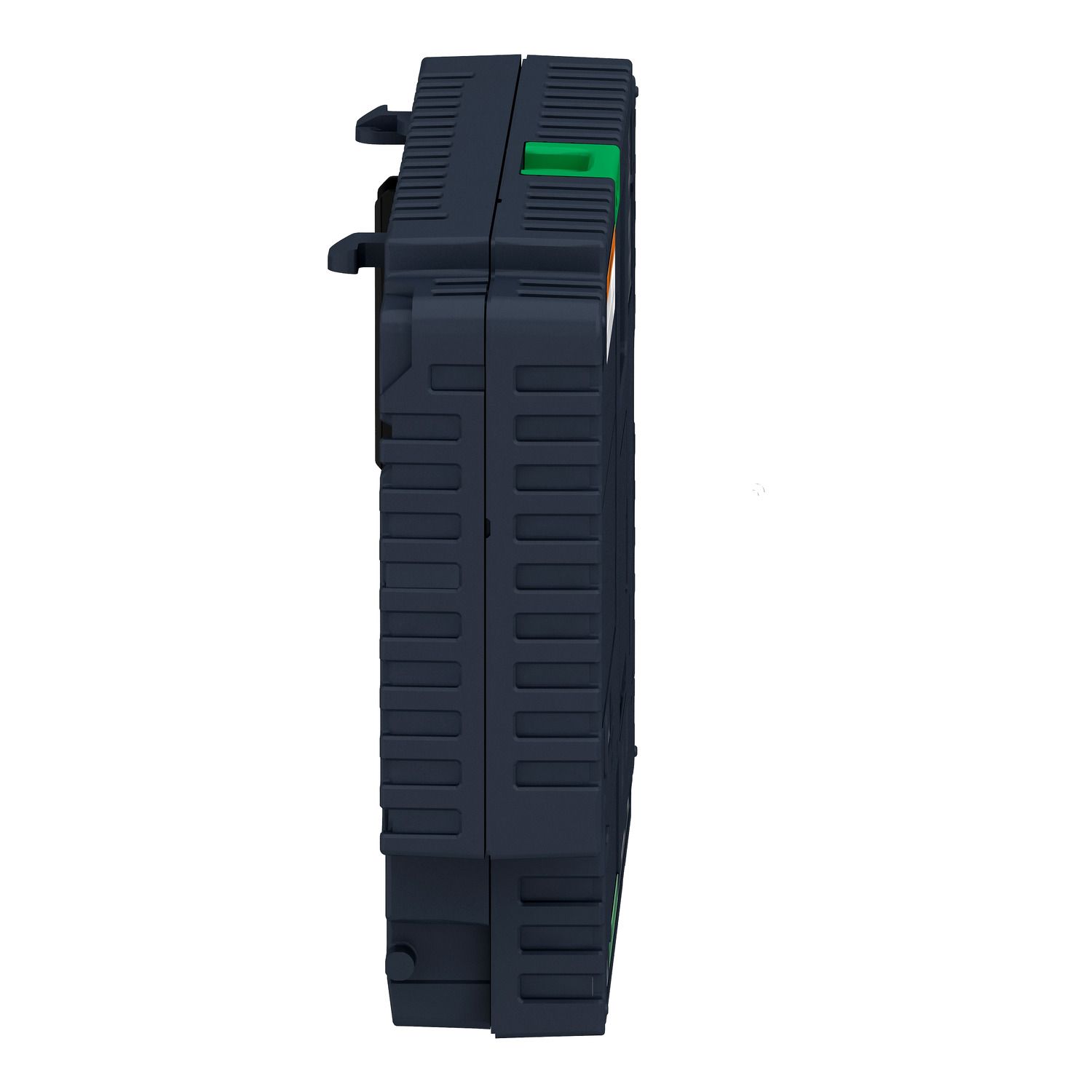

This product is part of the Pro-face SP5000 range, an offer of High performance IoT-ready modular HMI panels from 7 inch to 19 inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 4GB. This open box supports Windows 10 IoT Enterprise 2019 LTSC 32bit operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is not installed with HMI software. This product is certified by ATEX, IECEx, Ex CCC, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. As a flagship model, SP5000 series, "Smart Portal", is available. SP5000 series offers unprecedented solutions for utilization of increasingly sophisticated information.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | Open Box |
| Range of product | Harmony GTU |
| Range compatibility | Harmony GTU |
| Product or component type | base unit |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Complementary | |
| Operating system | Windows 10 IoT Enterprise 32bit |
| Data storage equipment | 32 GB CFast card |
| Type of cooling | natural convection |
| Realtime clock | built-in |
| Processor name | Intel X86 1.33 GHz |
| Depth | 45 mm |
| Communication port protocol | Uni-Telway, Modbus TCP/IP, Modbus |
| Software package | multimedia player, .NET framework 4.0, Internet Explorer, EcoStruxure Operator Terminal Expert run time, Vijeo Designer run time |
| Height | 131 mm |
| Width | 188 mm |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Integrated connection type | USB 2.0 port with 3 USB type A, microphone mini-jack, DVI-D video port DVI-D, USB 2.0 port mini B USB, auxiliary port terminal block, COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 2400...115200 bps, COM1 serial link RJ45 RS485, transmission rate: 2400...115200 bps, Ethernet TCP/IP with 2 RJ45 |
| Memory description | 4 GB RAM internal, 512 KB NVRAM backup memory |
| Local signalling | LED, multi-colour for status |
| Net weight | 0.9 kg |
| Number of slots | 2 slot(s) for Cfast card, 1 slot(s) for SD card |
| Environment | |
| Relative humidity | 10-90 % non-condensing |
| Ambient air temperature for storage | -20-60 °C |
| Pollution degree | 2 conforming to EN 61131-2 Ed.3 |
| Electromagnetic compatibility | electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
| Product certifications | UKEX, UKCA, EAC, cUL, KC, DNV-GL, RCM, IEC-Ex, ATEX, cULus, CE |
| Standards | IEC 61132-2, class I division 2 CSA C22.2 No 213, UL 508, ANSI/ISA 12-12-01, CSA C22.2 No 142 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000 |
| Vibration resistance | 9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) conforming to EN/IEC 61131-2 |
| Shock resistance | 147 m/s² conforming to EN/IEC 61131-2 |
