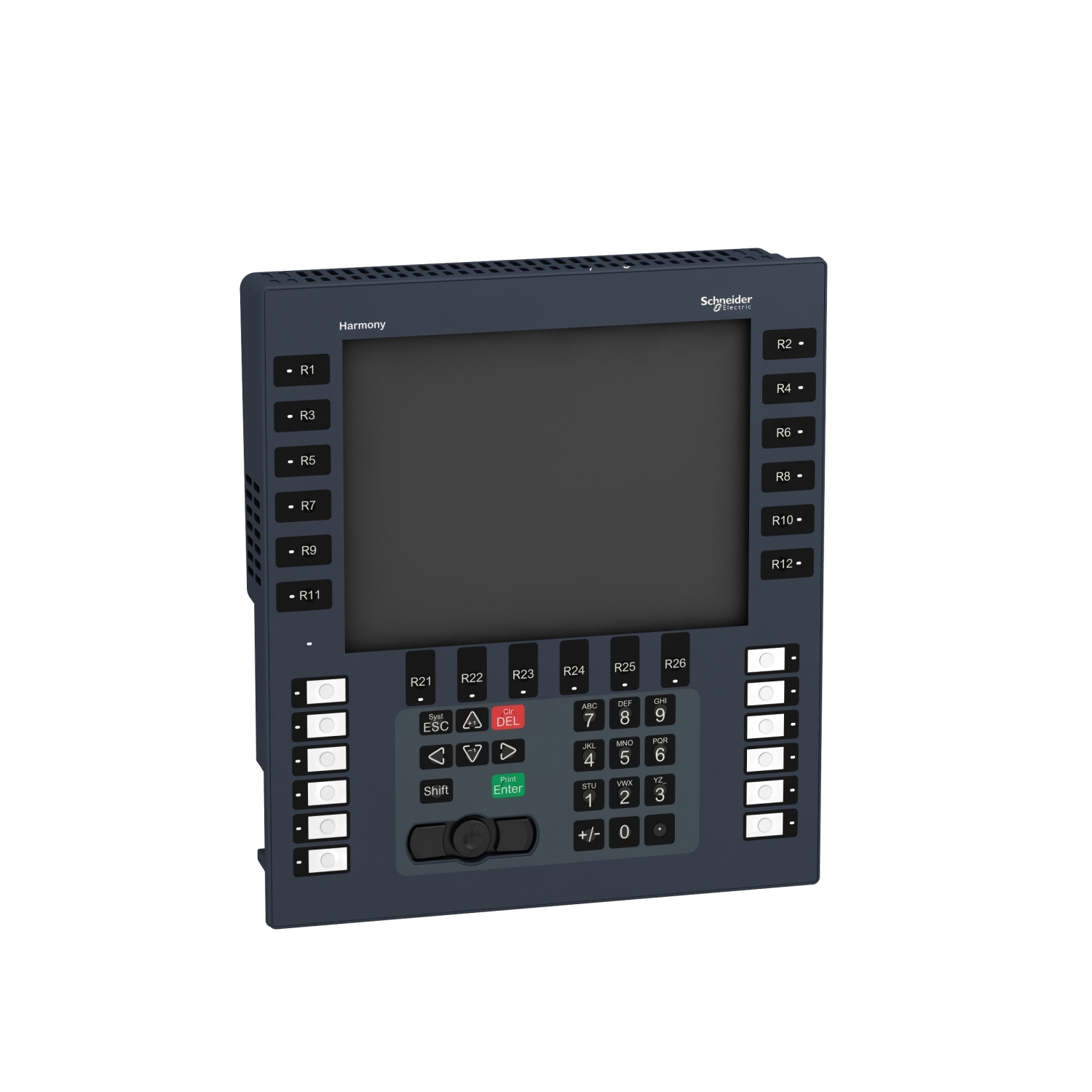

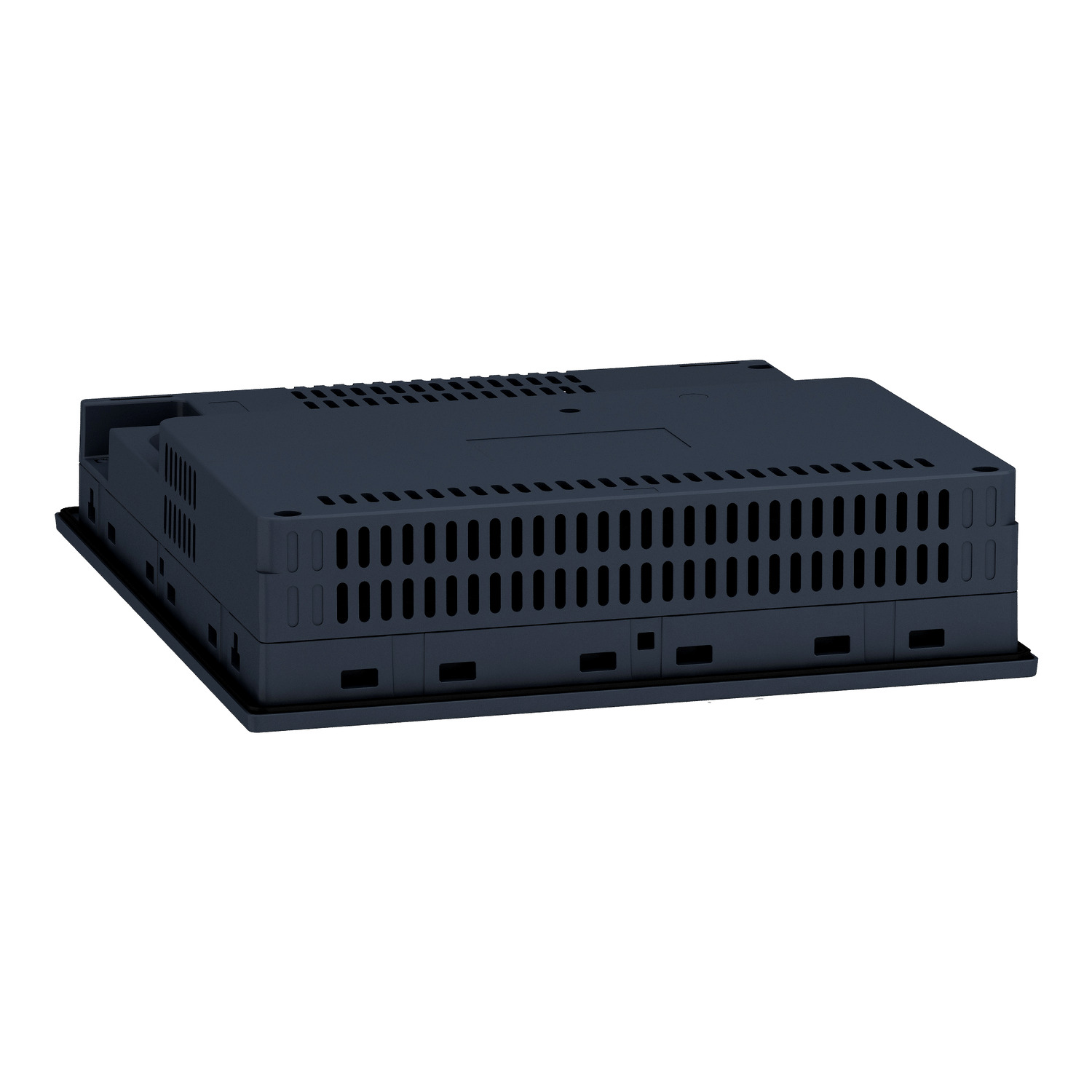

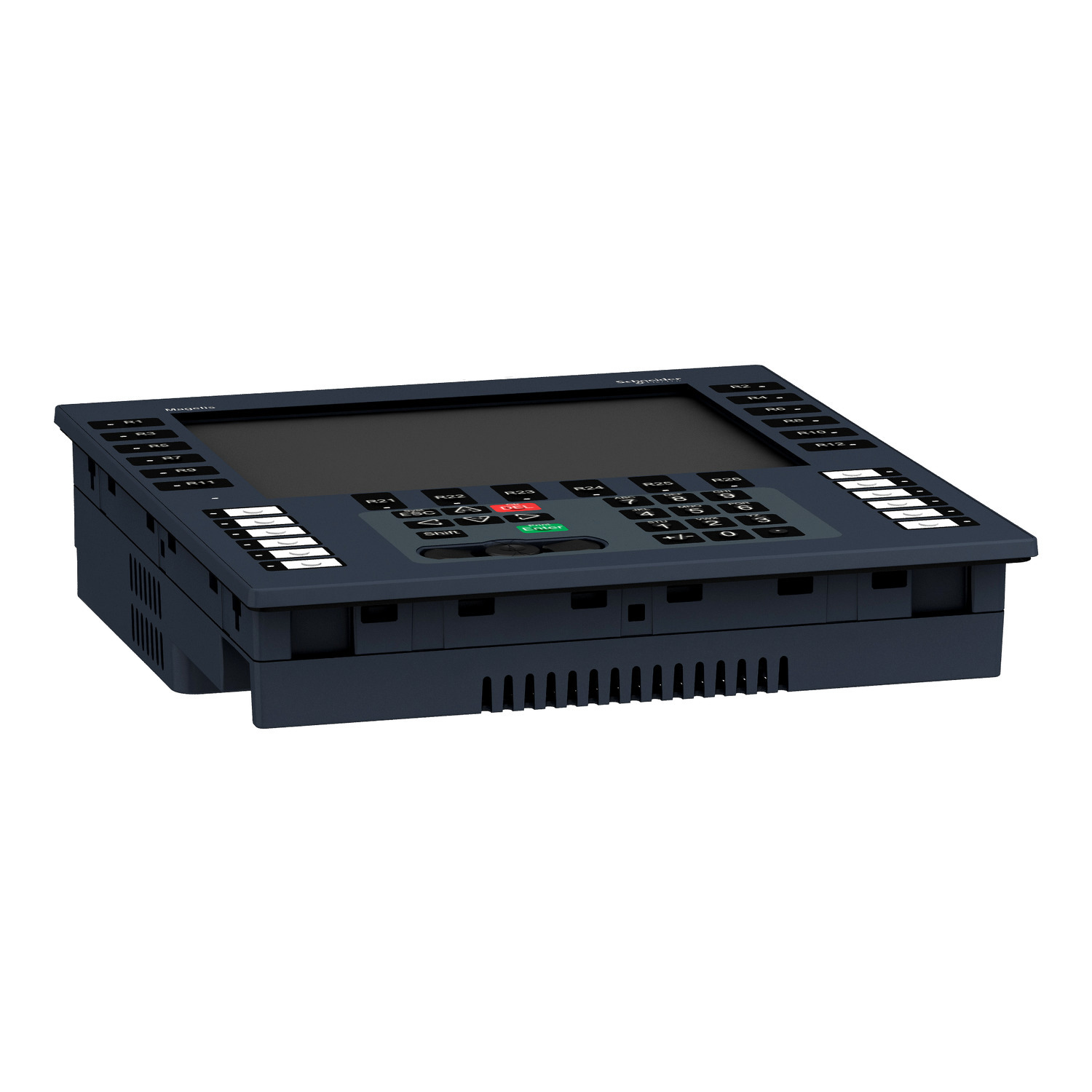

This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display with, 640 x 480 pixels (VGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 18 dynamic function keys, 12 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Display colour | 65536 colours |
| Display size | 10.4 inch |
| Processor name | CPU RISC |
| Range of product | Harmony GK |
| Operating system | Harmony |
| Product or component type | touchscreen panel with keypad |
| Supply | external source |
| Complementary | |
| Memory description | 128 MB flash EPROM application memory, 512 KB SRAM back up of data with lithium battery back-up |
| Character font | Chinese (simplified Chinese), Taiwanese (traditional Chinese), ASCII (European characters), Korean, Japanese (ANK, Kanji) |
| Downloadable protocols | Telemecanique Modicon Uni-TE, Siemens Simatic third party protocols, Rockwell Automation Allen-Bradley third party protocols, Omron Sysmac third party protocols, Mitsubishi Melsec third party protocols, Telemecanique Modicon Modbus, Telemecanique Modicon Modbus TCP, Telemecanique Modicon Modbus Plus, Telemecanique Modicon FIPWAY |
| Display type | backlit colour TFT LCD |
| Realtime clock | built-in |
| Number of alphanumeric keys | 12 |
| Cut-out dimensions | 285 (+/- 0.4) x 309 (+/- 0.4) mm |
| Supply voltage limits | 19.2-28.8 V |
| Mounting mode | flush mounting |
| [Us] rated supply voltage | 24 V DC |
| Software type | configuration software |
| Backlight lifespan | 50000 hours |
| Number of dynamic function keys symb | 18 with LED |
| Processor frequency | 333 MHz |
| Marking | CE |
| Power consumption in W | 11.4 W |
| Touch sensitive zone | 1024 x 1024 |
| Height | 332 mm |
| Front material | aluminium alloy |
| Number of static function keys | 12 with LED and labels |
| Depth | 76 mm |
| Width | 296 mm |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Enclosure material | PPT |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Integrated connection type | USB 2.0 type mini B, RJ45 Ethernet TCP/IP, removable screw terminal block power supply, <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link, USB 2.0 type A master port for Modicon M340 terminal port communication, <= 187.5 kbit/s RJ45, RS485 COM2 serial link for Siemens MPI (187.5 kbits/s) |
| Memory type | up to 32 GB SDHC card RAM, up to 32 GB SD card RAM |
| Software designation | Vijeo Designer |
| Touch panel | analogue |
| Net weight | 3.3 kg |
| Display resolution | 640 x 480 pixels VGA |
| Fixing mode | by 12 spring clips |
| Number of SERVICE keys | 8 |
| Inrush current | 30 A |
| Brightness | 16 levels via touch panel |
| Number of pages | limited by internal memory capacity |
| Environment | |
| Relative humidity | 10-90 % without condensation |
| Ambient air temperature for storage | -20-60 °C |
| IP degree of protection | IP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529 |
| Electromagnetic compatibility | resistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4, resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2 |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | 0-55 °C |
| Operating altitude | < 2000 m |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 3.5 mm conforming to IEC 60068-2-6 (f = 5-9 Hz), 1 gn conforming to IEC 60068-2-6 (f = 9-150 Hz) |
| Standards | IEC 61131-2, ANSI/ISA 12.12.01, UL 61010-2-201, CSA C22.2 No 213, IEC 61000-6-4, IEC 61000-6-2 |
| Product certifications | UKCA, CSA Class 1 Division 2 T5, CSA Class 1 Division 2 T4A, RCM, UL Class 1 Division 2 T4A, KC, UL Class 1 Division 2 T5, EAC, cULus |
Only registered users can write reviews
Related products
Harmony GTO, DC Power Supply Connector for Magelis Terminals
HMIZGPWS
Harmony GTO, DC Power Supply Connector for Magelis Terminals
$92.73 inc GST
$83.69 inc GST

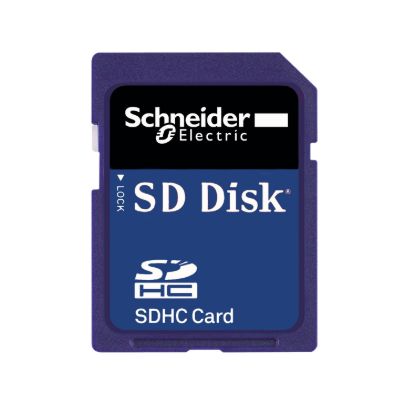

memory card, Harmony GTO, 4GB SD card, for terminals
