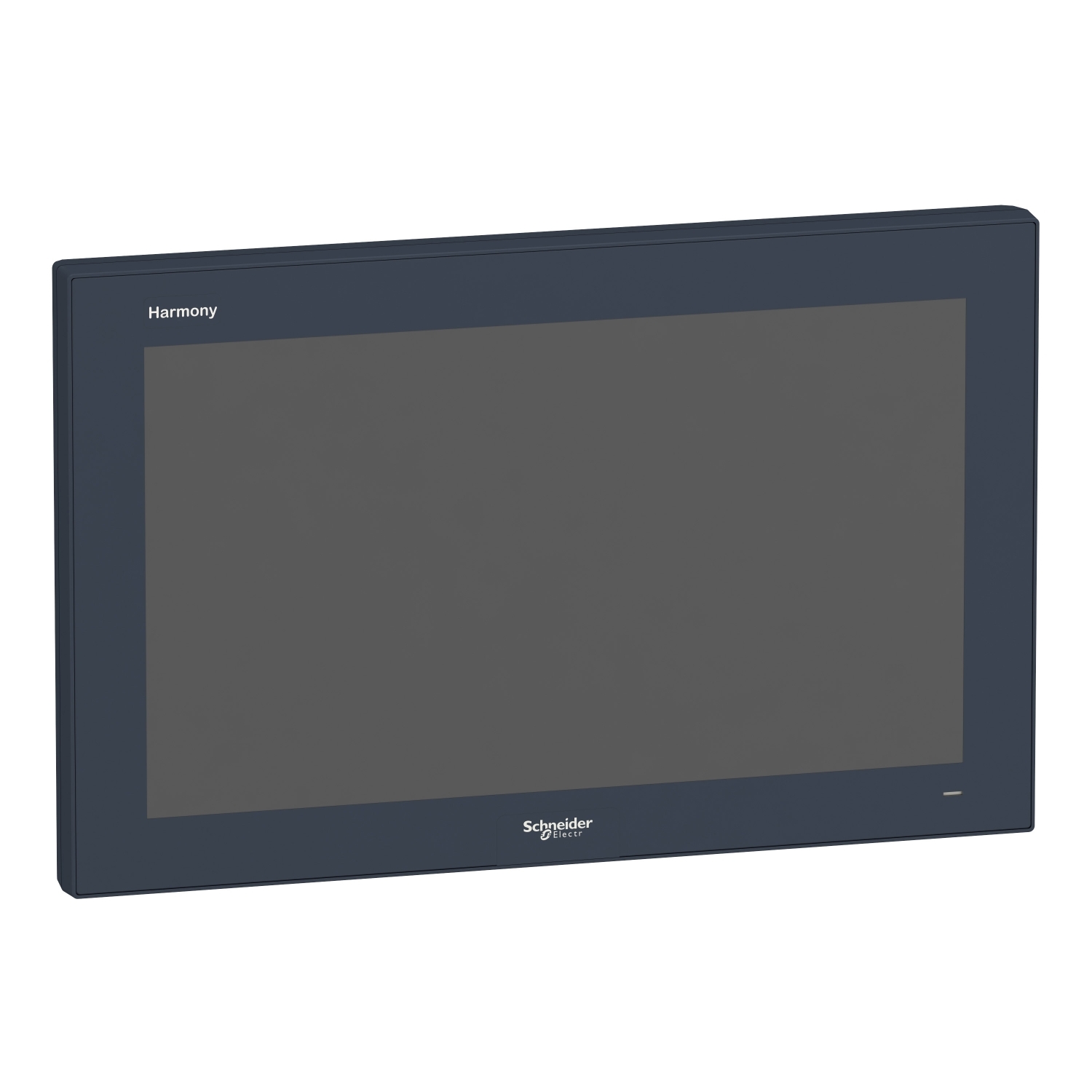

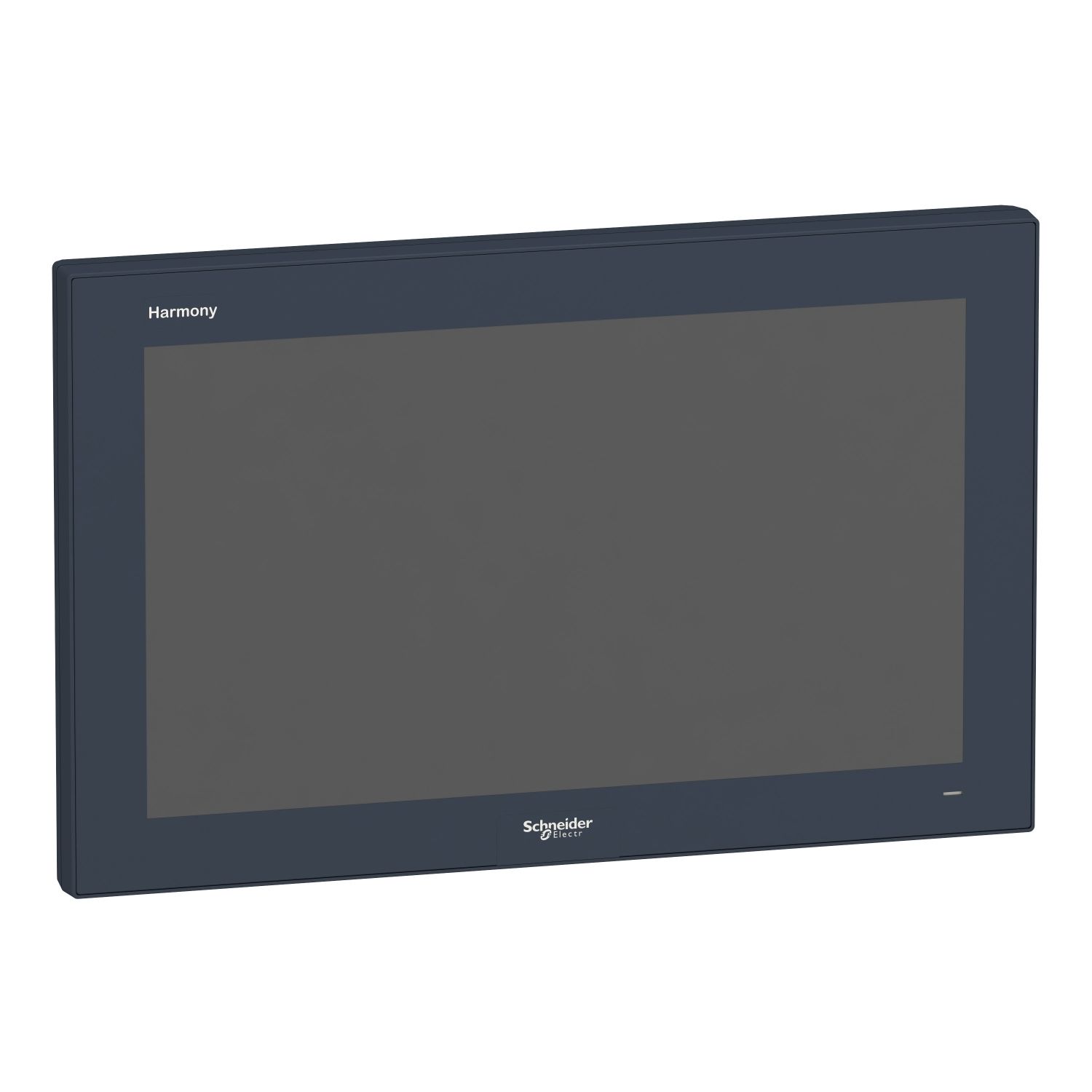

This product is part of the Harmony iPC range, an offer of Harmony HMIPEP Enclosed Panel PCs. This PC is fully enclosed PC with IP66 protection on all sides and can be directly mounted on a machine or automation system without any additional enclosure. It features a 19" LCD multi-touch screen with 1366 x 768 pixels display resolution. It is equipped with Intel Core i3 4010U 1.7 GHz processor and pre-installed Windows 10 IoT Enterprise (64-bit Multi-language) operating system. It comes with 8GB DDR3 RAM and 128 GB back side SSD storage. This product works at a rated voltage of 24V DC. Its dimensions are 488mm (width) x 309mm (height) x 65mm (depth) and weighs 8 kg. All sides of this PC comes with IP66 degree of protection. It is AS/NZS, C-Tick, CCC, CE, RCM, EAC certified and conforms to CISPR 11, CSA C22.2, FCC, IEC 60950, IEC 61000-6-2, IEC 61000-6-4, UL 60950 standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating system | Windows 10 IoT Enterprise 64 bitmulti-language |
| Display colour | 16777216 colors |
| Display size | 18.5 inch |
| Processor name | Intel Core i3 4010U 1.7 GHz |
| Luminance | 300 cd/m² |
| Free slots | 1 Internal SATA HDD/SSD |
| Software package | Vijeo Citect DVD SCADA license not included, EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included |
| Range of product | Harmony iPC |
| Product or component type | multi-touch screen |
| Pixel resolution | 4096 x 4096 |
| Complementary | |
| Data storage equipment | 128 GB back side SSD 1500000 h mtbf |
| Display type | colour TFT LCD, LED |
| Type of cooling | passive, fanless |
| Function available | operate with water on screen |
| Watchdog timer | 1-255 ms |
| [Us] rated supply voltage | 24 V DC +/- 20 % power supply |
| Height | 309 mm |
| Power consumption in W | 28-60 W |
| Aspect ratio | 16:9 |
| Integrated connection type | 2 Ethernet port - M12 female (rate: 10/100/1000 Mbit/s), 1 USB 2.0 type A - M12 female (rate: 1.5/12/480 Mbit/s), 1 RS232 - M12 male (rate: <= 115.2 kbits/s) |
| View angle horizontal x vertical | 160 x 170° |
| Net weight | 8 kg |
| Terminal type | touchscreen display |
| Number of slots | 1 mini PCI Express full-size |
| Number of points | 5 |
| Backlight lifespan | 50000 hours |
| Mechanical robustness | hardness anti-scratch 7H |
| Depth | 65 mm |
| Width | 488 mm |
| Local signalling | LED (orange) for stand-by, LED (green) for on, buzzer |
| Touch panel | multi-touch projected capactive technology (PCT) |
| Memory type | 8 GB RAM DDR3 internal |
| Display resolution | 1366 x 768 pixels WXGA |
| Main type | Performance |
| Environment | |
| Ambient air temperature for storage | -20-60 °C |
| Ambient air temperature for operation | 0-45 °C HDD, 0-55 °C SSD |
| Operating altitude | 2000 m |
| Standards | UL 60950, IEC 61000-6-4, IEC 61000-6-2, IEC 60950, FCC part 15 class A, CSA C22.2 No 60950, CISPR 11 |
| IP degree of protection | IP65 all sides: |
| Relative humidity | 10-95 % non-condensing |
| Directives | 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility |
| Pollution degree | 2 |
| Product certifications | RCM, EAC, CCC, AS/NZS, C-Tick, CE |
| Vibration resistance | 2 gn (f = 5-500 Hz) SSD, 1 gn (f = 5-500 Hz) HDD |
