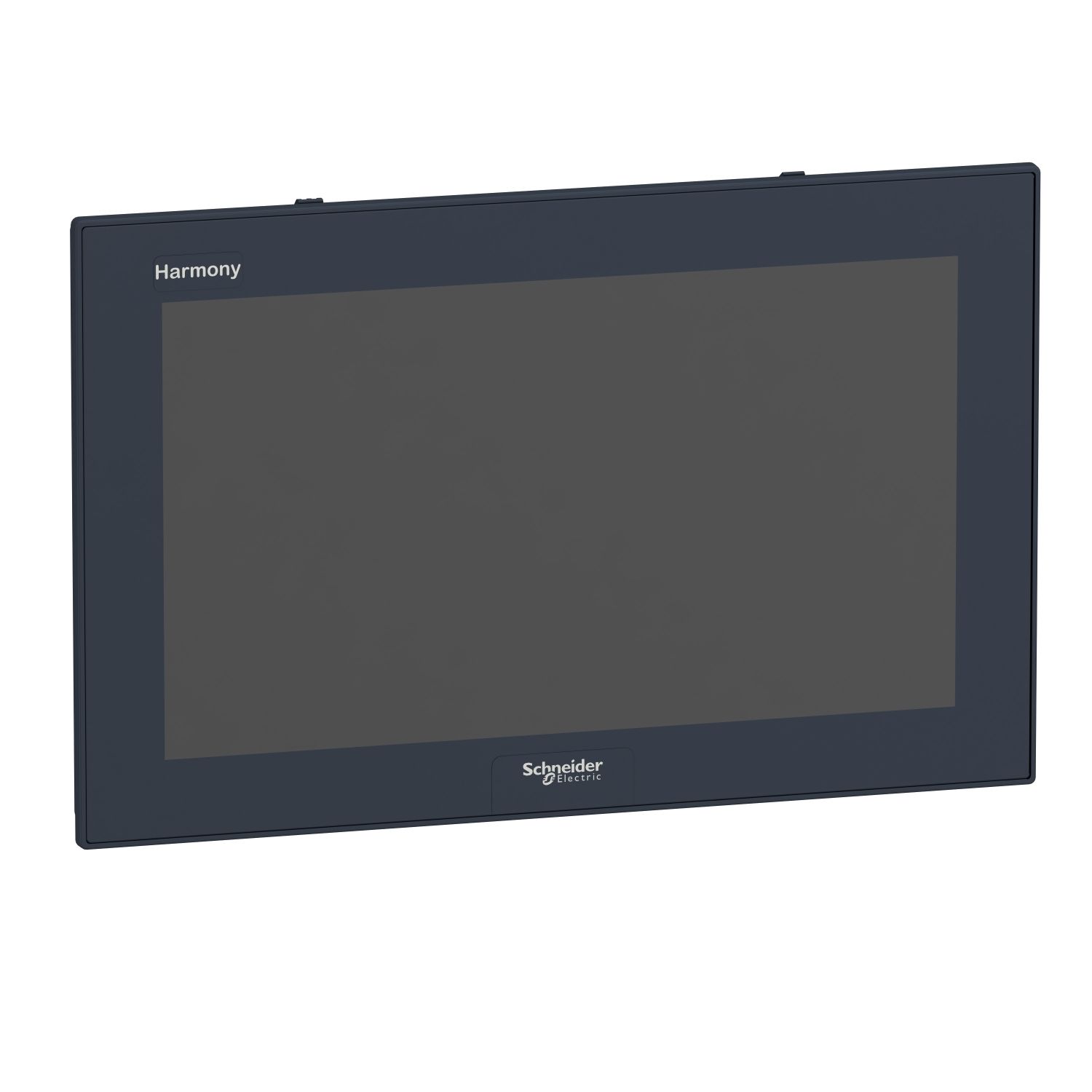

multi touch screen, Harmony iPC, S panel PC optimized, 15inch wide display, DC

Manufacturer: Schneider Electric

SKU: HMIPSO0752D1001

GTIN: 3606480853425

Catalog

User guide

Environmental Disclosure

CAD

Circularity Profile

Declaration of conformity

Old price: $4,142.60 inc GST

Price: $3,738.70 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the Harmony iPC range, an offer of Harmony HMIPSO S-Panel PCs. These simple-in-design PCs with Intel Atom dual-core CPU cater for the performance requirements of most automation applications in the field. It features a 15" LCD multi-touch screen with 1366 x 768 pixels display resolution. It is equipped with Intel Atom E3827 dual core at 1.75 GHz processor. It comes with 4GB RAM storage. This product works at a rated voltage of 24V DC. Its dimensions are 419.7mm (width) x 269mm (height) x 61.9mm (depth) and weighs 3.9 kg. The front panel of this PC comes with IP66 degree of protection. It is AS/NZS, C-Tick, CCC, CE, RCM, EAC certified and conforms to FCC, CSA C22.2 No 60950, IEC 61000-6-4, UL 60950, IEC 61000-6-2, IEC 60950 standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.

Products specifications

Attribute name	Attribute value
Main
Display colour	16777216 colors
Display size	15.6 inch
Free slots	1 CFast
Processor name	Intel Atom E3827 dual core at 1.75 GHz
Chipset type	Intel Atom SoC
Software package	EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included
Range of product	Harmony iPC
Luminance	300 cd/m²
Product or component type	multi-touch screen
Video controller type	Intel HD Graphics
Pixel resolution	4096 x 4096
Complementary
Data storage equipment	CFast card
Display type	LED, colour TFT LCD
Type of cooling	fanless, passive
Cut-out dimensions	412.4 (+/- 0.7) x 261.7 (+/- 0.4)
Display size	15" wide multi-touch
Function available	operate with water on screen
Watchdog timer	1-255 ms
[Us] rated supply voltage	100...240 V AC with additional adaptor HMIYPSOMAC1, 24 V DC +/- 20 %
Height	269 mm
Backlight lifespan	50000 hours
Mechanical robustness	hardness anti-scratch 7H
Aspect ratio	16:9
Depth	61.9 mm
Width	419.7 mm
[In] rated current	1.7 A
Local signalling	LED (orange) for stand-by, LED (green) for on, buzzer
Touch panel	projected capacitive technology (PCT)
Memory type	4 GB RAM DDR3 internal
View angle horizontal x vertical	150 x 140°
Net weight	3.9 kg
Terminal type	touchscreen display
Display resolution	1366 x 768 pixels WXGA
Main type	Optimised
Number of points	5
Environment
IP degree of protection	IP66 front panel:
Relative humidity	10-95 % non-condensing
Ambient air temperature for storage	-20-60 °C
Directives	2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
Pollution degree	2
Ambient air temperature for operation	0-45 °C Mini PCIe, 0-45 °C HDD, 0-55 °C Cfast card, 0-55 °C SSD
Operating altitude	2000
Vibration resistance	2 gn (f = 5-500 Hz)Cfast card, 2 gn (f = 5-500 Hz)SSD, 1 gn (f = 5-500 Hz)HDD
Standards	UL 60950, IEC 60950, IEC 61000-6-4, CSA C22.2 No 60950, FCC part 15 class A, CISPR 11, IEC 61000-6-2
Product certifications	CCC, C-Tick, CE, RCM, EAC, AS/NZS
