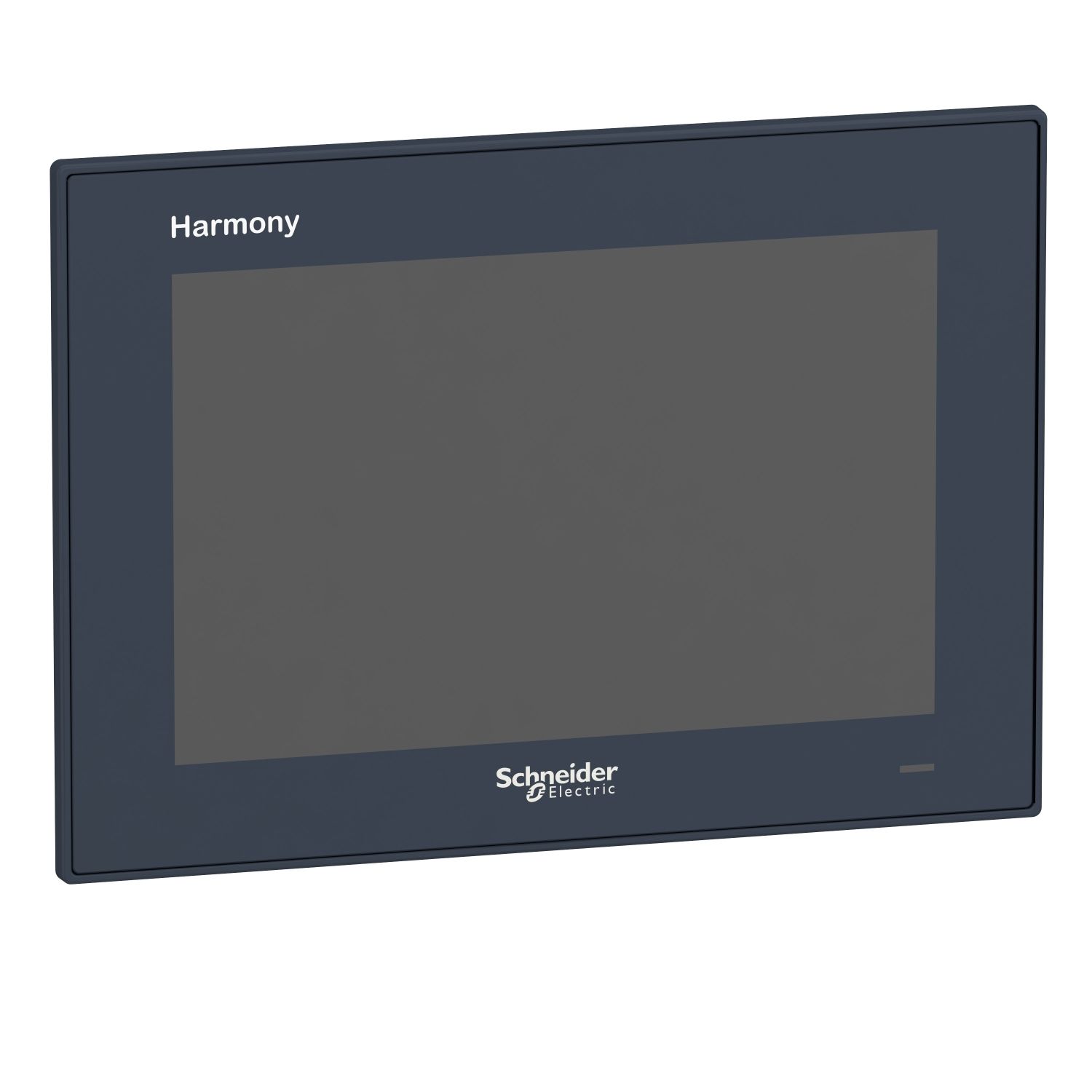

multi touch screen, Harmony iPC, S panel PC optimized, SSD, 10inch wide display, DC, Windows 10
Manufacturer: Schneider Electric
SKU: HMIPSOS552D1801
GTIN: 3606480853364
Old price: $4,747.60 inc GST
$4,284.71 inc GST
Supported cards
Supported cards
This product is part of the Harmony iPC range, an offer of Harmony HMIPSO S-Panel PCs. These simple-in-design PCs with Intel Atom dual-core CPU cater for the performance requirements of most automation applications in the field. It features a 10" LCD multi-touch screen with 1280 x 800 pixels display resolution. It is equipped with Intel Atom E3827 dual core at 1.75 GHz processor and pre-installed Windows 10 IoT Enterprise 64 bit multi-language operating system. It comes with 4GB RAM and 128 GB extension back side SSD card storage. This product works at a rated voltage of 24V DC. Its dimensions are 283.1mm (width) x 202.3mm (height) x 85.5mm (depth) and weighs 2.5 kg. The front panel of this PC comes with IP66 degree of protection. It is AS/NZS, C-Tick, CCC, CE, RCM, EAC certified and conforms to UL 61010, UL 121201, CSA C22.2 No 213, CSA C22.2 No 61010-1, IEC 61132-2 standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.

Products specifications

Attribute name Attribute value
Main
Operating system Windows 10 IoT Enterprise 64 bitmulti-language
Display colour 267000 colours
Display size 10.1 inch
Processor name Intel Atom E3827 dual core at 1.75 GHz
Luminance 300 cd/m²
Free slots 1 CFast, 1 Internal SATA HDD/SSD
Chipset type Intel Atom SoC
Software package EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included
Range of product Harmony iPC
Product or component type multi-touch screen
Video controller type Intel HD Graphics
Pixel resolution 4096 x 4096
Complementary
Data storage equipment 128 GB extension back side SSD 1500000 h mtbf
Display type LED, colour TFT LCD
Type of cooling passive, fanless
Display size 10" wide multi-touch
Function available operate with water on screen
Watchdog timer 1-255 ms
[Us] rated supply voltage 100...240 V AC with additional adaptor HMIYPSOMAC1, 24 V DC +/- 20 %
Height 202.3 mm
Aspect ratio 16:9
View angle horizontal x vertical 160 x 160°
Net weight 2.5 kg
Terminal type touchscreen display
Number of slots 1 mini PCI Express full-size
Number of points 5
Cut-out dimensions 274.6 (+/- 0.7) x 193.8 (+/- 0.4)
Backlight lifespan 50000 hours
Mechanical robustness hardness anti-scratch 7H
Depth 85.5 mm
Width 283.1 mm
[In] rated current 1.9 A
Local signalling LED (orange) for stand-by, LED (green) for on, buzzer
Touch panel projected capacitive technology (PCT)
Memory type 4 GB RAM DDR3 internal
Display resolution 1280 x 800 pixels WSVGA
Main type Optimised
Environment
Ambient air temperature for storage -20-60 °C
Ambient air temperature for operation 0-45 °C Mini PCIe, 0-45 °C HDD, 0-55 °C Cfast card, 0-55 °C SSD
Operating altitude 2000
Product certifications EAC, RCM, CE, CCC, C-Tick, AS/NZS
IP degree of protection IP66 front panel:
Relative humidity 10-95 % non-condensing
Directives 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
Pollution degree 2
Vibration resistance 2 gn (f = 5-500 Hz)Cfast card, 2 gn (f = 5-500 Hz)SSD, 1 gn (f = 5-500 Hz)HDD
Standards IEC 60950, IEC 61000-6-2, IEC 61000-6-4, CISPR 11, FCC part 15 class A,  CSA C22.2 No 60950,  UL 60950
