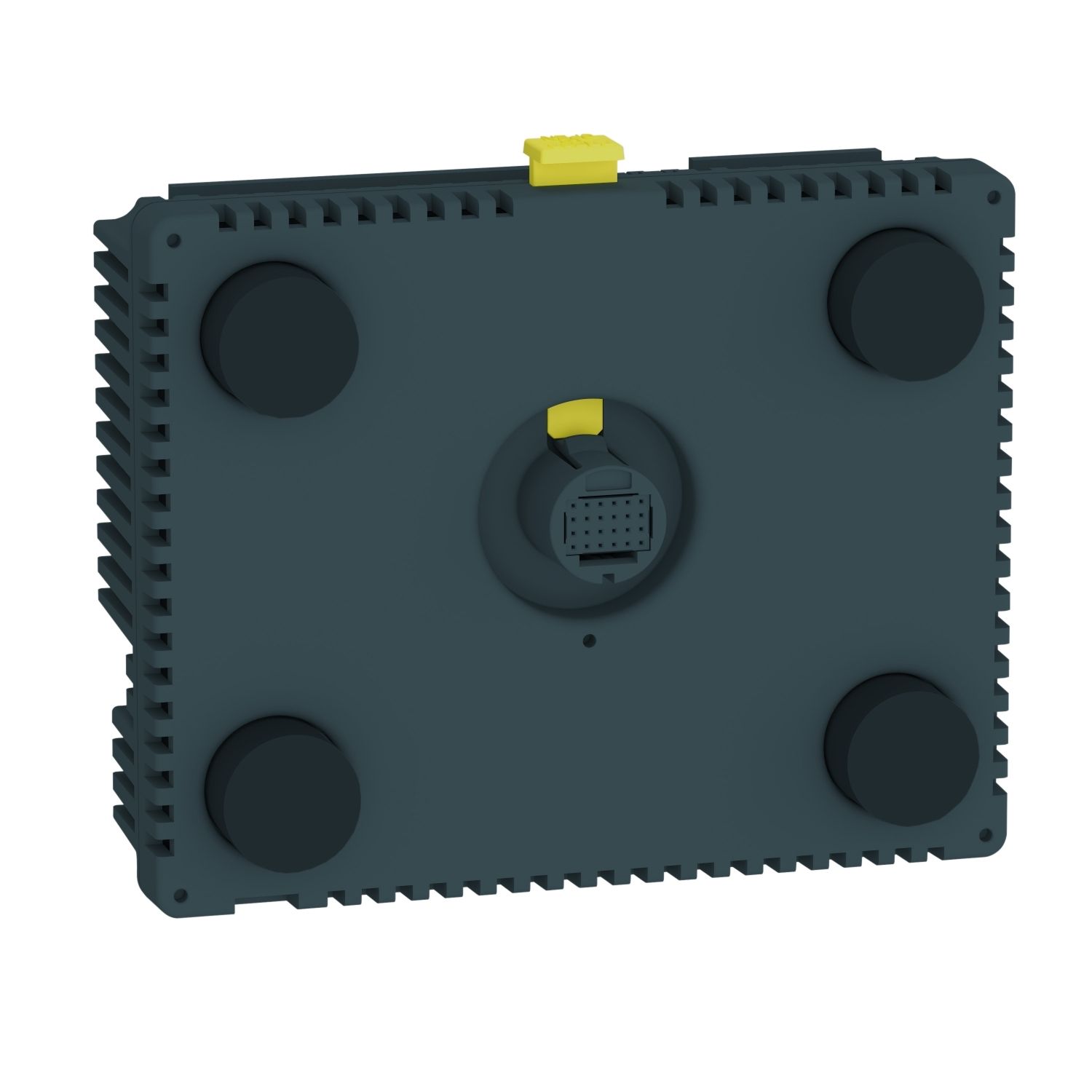

This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. This rear module controller panel provides 8/8 digital I/Os and 4/2 analogue I/Os. It supports Modbus, CANopen and Modbus TCP/IP downloadable protocols. It is designed with internal data storage of 128kB FRAM, flash NAND of 128MB and application run DRAM of 128MB. It is a controller panel with a rated supply voltage of 24V DC, supplied by external source with the limit ranges from 20.4V to 28.8V DC. It is an IP20 (rear panel) / IP65 (front panel) and NEMA 4X rated product. The enclosure is made of PC/PBT. Its dimensions are 128mm (width) x 102mm (depth) x 50.65mm (height) and weighs 0.398kg. It is certified by CULus, CUL, GOST, C-Tick, CSA, KCC. It meets UL 508, FCC Class A, EN 61131-2, WEEE directive 2002/96/EC, CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12-12-01, RoHS, RoHS China SJ/T 11363-2006, IEC 61000-6-2 standards. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device presentation | basic element |
| Range of product | Harmony SCU |
| Product or component type | controller |
| Complementary | |
| Number of common point | 1 for digital input, 1 for fast input (HSC mode) |
| Memory description | application run DRAM, 128 MB, internal data storage FRAM, 128 kB, flash NAND, 128 MB |
| Discrete input number | 6 for digital input conforming to IEC 61131-2 Type 1, 2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 |
| Input/output number | 6 for digital output, terminal(s): DQ0...DQ5, 6 for digital input, terminal(s): DI0...DI5, 2 for fast output, terminal(s): FQ0...FQ1, 2 for fast input, terminal(s): FI0...FI1 |
| Realtime clock | built-in |
| Downloadable protocols | Modbus TCP/IP, CANopen, Modbus |
| Maximum output frequency | 1 kHz for fast output (PWM mode), 100 kHz for fast output (PTO mode) |
| Maximum input frequency | 100 kHz for fast input - control type pulse/direction, 100 kHz for fast input - control type single phase, 100 kHz for fast input (encoder mode) - control type A/B |
| Processor name | CPU RISC |
| Configurable filtering time | 3...12 ms integrator (none/run/stop), 0.004...0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 0 ms no filter (none) |
| Processor frequency | 333 MHz |
| Isolation between channels | none |
| Discrete output voltage | 220 V AC (voltage limit: 100...250 V) with relay discrete output(s), 24 V DC (voltage limit: 5...30 V) with relay discrete output(s), 24 V DC (voltage limit: 19.2...28.8 V) with transistor discrete output(s) |
| Electromagnetic compatibility | radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 |
| Power consumption in W | 15 W |
| Discrete input voltage | 24 V DC, discrete input logic: sink or source (positive/negative) |
| [Us] rated supply voltage | 24 V (20.4-28.8 V)DC |
| Analogue input range | -10...+10 V or 0...10 V - resolution: 12 bits + sign, input impedance: >= 1 MOhm, 0...20 mA/4...20 mA - resolution: 12 bits, input impedance: 250 Ohm (tolerance: +/- 1 %) |
| Immunity to microbreaks | 10 ms |
| Connection pitch | 3.5 mm |
| Height | 50.65 mm |
| Maximum cable distance between devices | unshielded cable: <50 m for digital input, shielded cable: <100 m for digital input, shielded cable: <10 m for fast input |
| Fixing mode | by 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel |
| Analogue input type | RTD at - 200...1300 °C - resolution: 16 bits (thermocouple N), RTD at - 200...900 °C - resolution: 16 bits (thermocouple E), RTD at - 200...400 °C - resolution: 16 bits (thermocouple T), RTD at 0...1600 °C - resolution: 16 bits (thermocouple S), RTD at 200...1800 °C - resolution: 16 bits (thermocouple B), RTD at 0...1600 °C - resolution: 16 bits (thermocouple R), RTD at - 240...1370 °C - resolution: 16 bits (thermocouple K), RTD at - 200...760 °C - resolution: 16 bits (thermocouple J), RTD at - 50...200 °C - resolution: 16 bits temperature probe: Ni 100/Ni 1000, RTD at - 200...600 °C - resolution: 16 bits temperature probe: Pt 100/Pt 1000 |
| Discrete output current | 50 mA, response time 2 ms for fast output (PWM or PTO mode), 300 mA, response time 2 ms for fast output (normal mode), 2 A 4 A), response time 2 ms with closing contact for digital output, 2 A 4 A), response time 5 ms with opening contact for digital output |
| Depth | 102 mm |
| Sensor power supply | 15-28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA, 15-28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA |
| Width | 128 mm |
| Local signalling | no indicator |
| Enclosure material | PC/PBT |
| Discrete input current | 5 mA for digital, 7.83 mA for fast input |
| Input impedance | 4.7 kOhm, 2.81 kOhm |
| Absolute accuracy error | +/- 15 % of full scale cyclic ratio 30...70% for fast output (PWM or PTO mode), +/- 10 % of full scale cyclic ratio 20...80% for fast output (PWM or PTO mode), +/- 5 % of full scale cyclic ratio 10...90% for fast output (PWM or PTO mode), 1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode), +/- 0.1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode) |
| Integrated connection type | CANopen master bus - SUB-D 9, 1 USB 2.0 type A, 1 USB 2.0 type mini B, 1 Ethernet TCP/IP - RJ45, 1 serial link - RJ45 - RS232/RS485 (rate: <= 115.2 kbits/s) |
| Software designation | SoMachine |
| Analogue input number | 2 for RTDs, 2 for analog input |
| Isolation between channels and internal logic | 500 V DC |
| Net weight | 0.398 kg |
| Analogue output range | -10...10 V/0...10 V (> 2 kOhm) for short-circuit, 0...20 mA/4...20 mA (> 300 Ohm) for open-circuit |
| Overvoltage protection | with overvoltage protection |
| Operating system | Harmony |
| Vibration resistance | 1 gn (f = 9-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f = 5-9 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27, 147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 |
| Insulation resistance | > 10 MOhm between power supply and earth, > 10 MOhm between the I/O and internal logic |
| Supply | external source |
| Discrete output number | 6 digital output, output logic: source, 2 fast output (normal mode), output logic: source |
| Inrush current | 30 A |
| Number of pages | limited by internal memory capacity |
| Analogue output number | 2 resistive load for 12 bits + sign |
| Environment | |
| Relative humidity | 5-85 % without condensation |
| Ambient air temperature for storage | -20-60 °C |
| Pollution degree | 2 conforming to IEC 60664 |
| IP degree of protection | IP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529 |
| Marking | CE |
| Ambient air temperature for operation | 0-50 °C |
| Operating altitude | <= 2000 m |
| NEMA degree of protection | NEMA 4X front panel |
| Environmental characteristic | corrosive gas free |
| Maximum pressure | 800...1114 hPa |
| Storage altitude | 0-10000 m |
| Standards | IEC 61000-6-2, ANSI/ISA 12-12-01, CSA C22.2 No 213 Class I Division 2, EN 61131-2, FCC Class A, UL 508 |
| Product certifications | UKEX, UKCA, KCC, GOST, cULus CSA 22-2 No 142, C-Tick, cUL 1604 Class 1 Division 2, cULus 508 |
Only registered users can write reviews
Related products
connecting cable, Modicon M340, USB, PC or terminal, for processor, 1.8m
BMXXCAUSBH018
connecting cable, Modicon M340, USB, PC or terminal, for processor, 1.8m
$272.25 inc GST
$360.05 inc GST

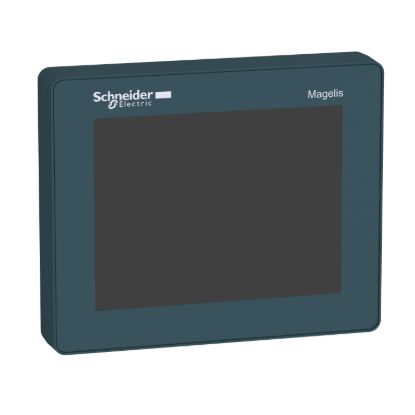

Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD
HMIS65
Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD
$394.35 inc GST

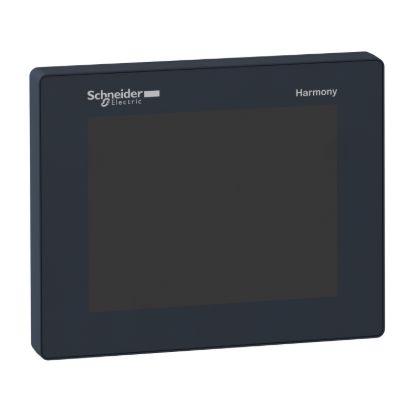

Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD
