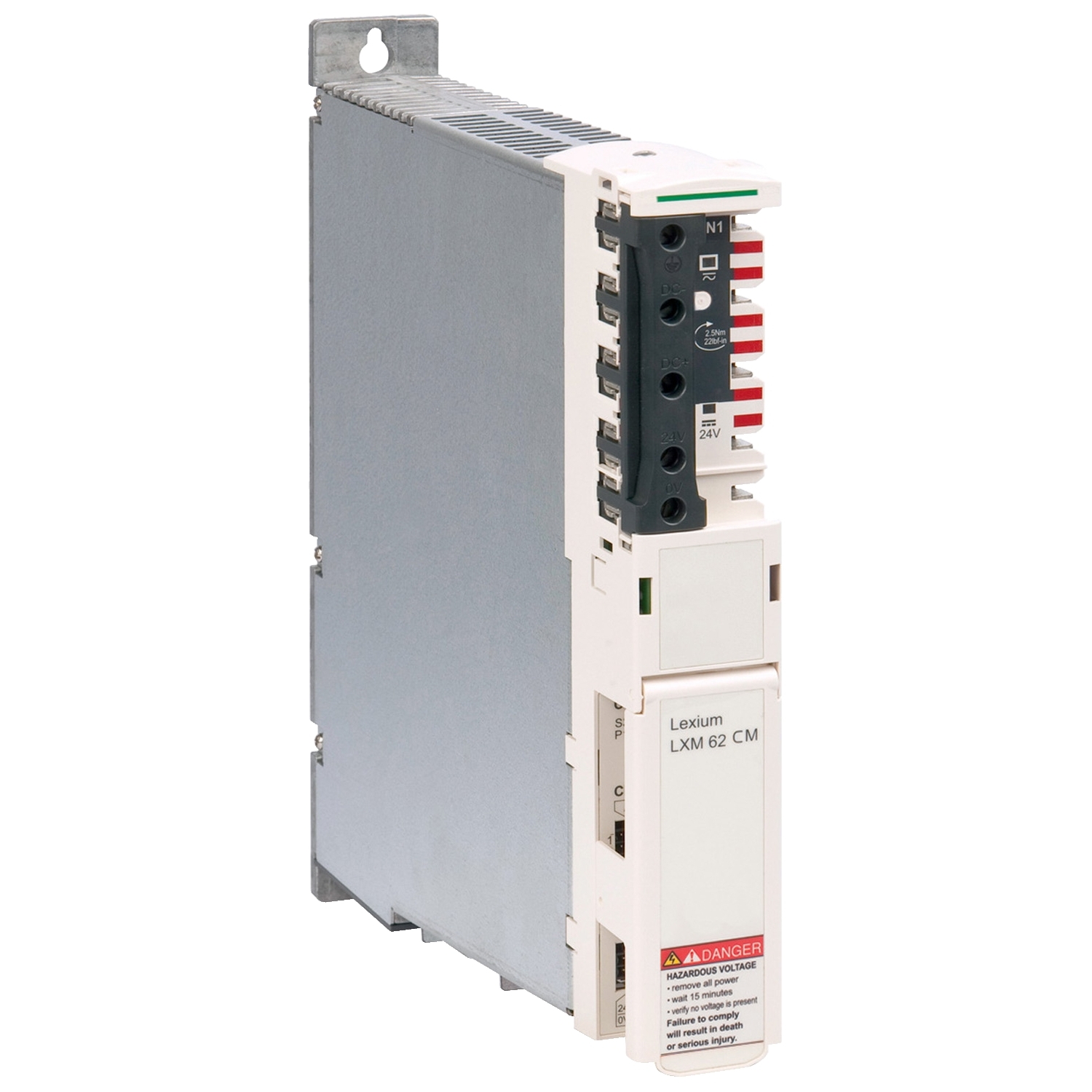

This product is part of the PacDrive 3 range, an offer of connection accessories. This connection module features SERCOS III interface. It is an integrated servo motor with a supply voltage of 250V to 700V and an input current of 20A. It is an IP20 rated product. Its dimensions are 44.5mm (width) x 270mm (depth) x 310mm (height). It weighs 3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ILM |
| Product or component type | connector module |
| Accessory / separate part category | connection accessories |
| Range of product | PacDrive 3 |
| Complementary | |
| Depth | 270 mm |
| Width | 44.5 mm |
| Peak output current | 40 A |
| Type of cooling | natural convection |
| Overvoltage category | class 3 conforming to IEC 61800-5-1 |
| Physical interface | SERCOS III |
| Control threshold overvoltage | 860 V |
| Input current | 20 A |
| [Us] rated supply voltage | 250...700 V |
| Net weight | 3 kg |
| [Uc] control circuit voltage | 24 V DC (tolerance: - 20...25 %) |
| Output current | 20 A |
| Height | 310 mm |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
