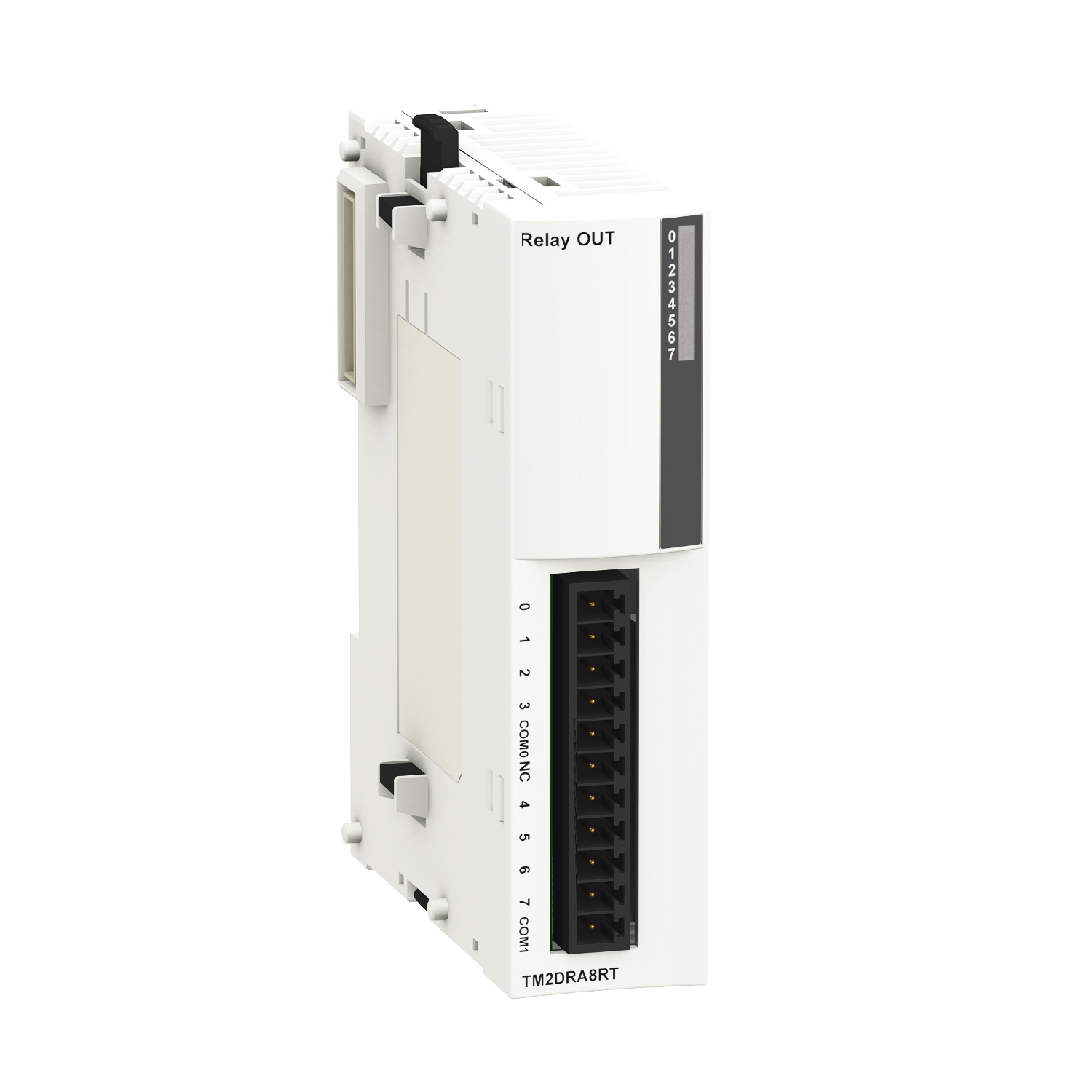

This digital output module is part of the range Modicon TM2 expansion modules. It consists in 8 N/O relay outputs 230V ac / 30 V dc. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. It is compatible with Modicon OTB interface modules, Magelis HMI controller XBTGC and Modicon / Twido controllers.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output number | 8 |
| Product or component type | I/O expansion module |
| Range of product | Modicon M238 logic controller |
| Discrete output type | relay |
| Complementary | |
| Contact resistance | 45 mOhm |
| Number of common point | 2 |
| Range compatibility | Advantys OTB, Twido |
| Mechanical durability | 20000000 cycles |
| Local signalling | 1 display block |
| Isolation between output channels group | 1500 V for 1 minute |
| Isolation between channels and internal logic | 2300 V for 1 minute |
| Isolation between channels | 1500 V for 1 minute |
| Net weight | 0.11 kg |
| Electrical durability | 100000 cycles 2 A 30 V DC resistive, 100000 cycles 2 A 240 V AC resistive, 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms), 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive, 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive |
| Current consumption | 40 mA at 24 V DC at state 1 for all output, 30 mA at 5 V DC at state 1 for all output |
| Response time | <= 5 ms from state 1 to state 0 for input, <= 10 ms from state 0 to state 1 for input |
| Maximum current per output common | 7 A |
| Mounting support | 35 mm symmetrical DIN rail |
| Current per channel | 2 A |
| Discrete output function | 1 NO |
| Minimum switching current | 0.1 mA at 0.1 V DC |
| Electrical connection | 1 removable screw terminal block |
| Environment | |
| Depth | 84.6 mm |
| Width | 27.3 mm |
| Height | 90 mm |
