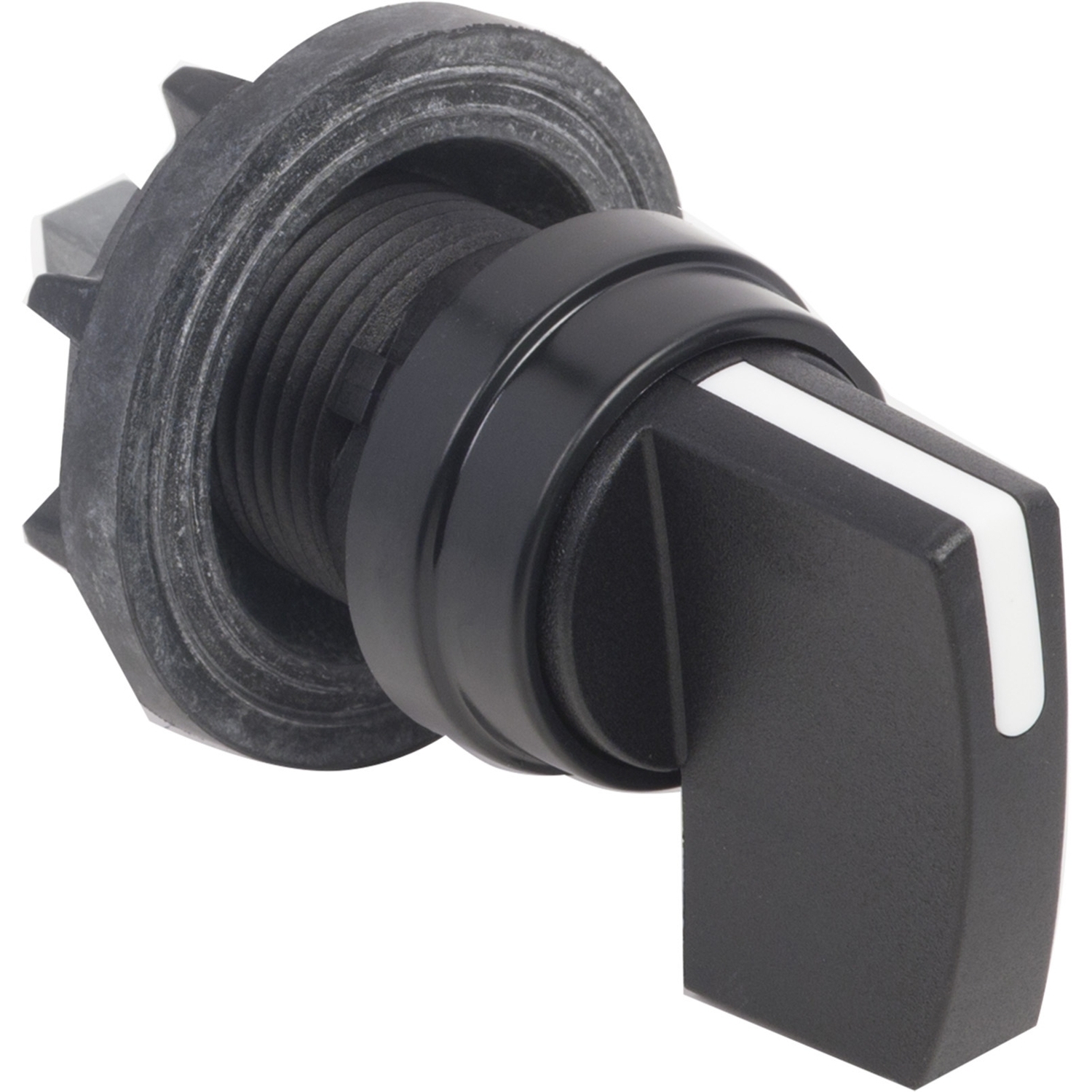

Cam switch operating head, Harmony K1, K2, 22mm, plastic, circular 29mm, mat black, black handle
Manufacturer: Schneider Electric
SKU: KAA1H
GTIN: 3389110980721
Old price: $60.83 inc GST
$37.01 inc GST
Supported cards
Supported cards
"This product is part of the Harmony K range, an offer of Ø 16-22mm rotary cam switches." "This cam switch operator head has black handle and 29mm plastic bezel with metallic finish." "It offers mechanical durability of about 1 million cycles. It is an IP65 rated product." "The cam switch operating head dimensions are 29mm (width) x 77mm (depth) x 38mm (height). It weighs 0.042kg." "It is ideal for oil and gas, food and beverage, packaging, kneading trough and vegetable cutting machine applications." "It is compatible with 12A and 20A front mounting bodies." "It is installed into a Ø 22mm panel cutout." "Modular rotary cam switches from 10A to 150A with plastic or metal heads meet most industrial applications."

Products specifications

Attribute name Attribute value
Main
Rotary handle padlocking without
Cam switch head type with bezel Ø 29 mm, plastic with metallic finish
Product compatibility front mounting bodies 12 and 20 A by Ø 22 mm hole
Type of operator black handle, length = 35 mm
Component name KAA
Product or component type cam switch operating head
Presentation of legend with mat black legend
Range of product Harmony Series K
Complementary
CAD overall depth 77 mm
CAD overall width 29 mm
Compatibility code KAA
Mechanical durability 1000000 cycles
CAD overall height 38 mm
Net weight 0.042 kg
Length 35 mm
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to NF C 20-010, IP65 conforming to IEC 529
Shock resistance 30 gn conforming to IEC 68-2-27
Vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz)
Ambient air temperature for operation -25-55 °C
