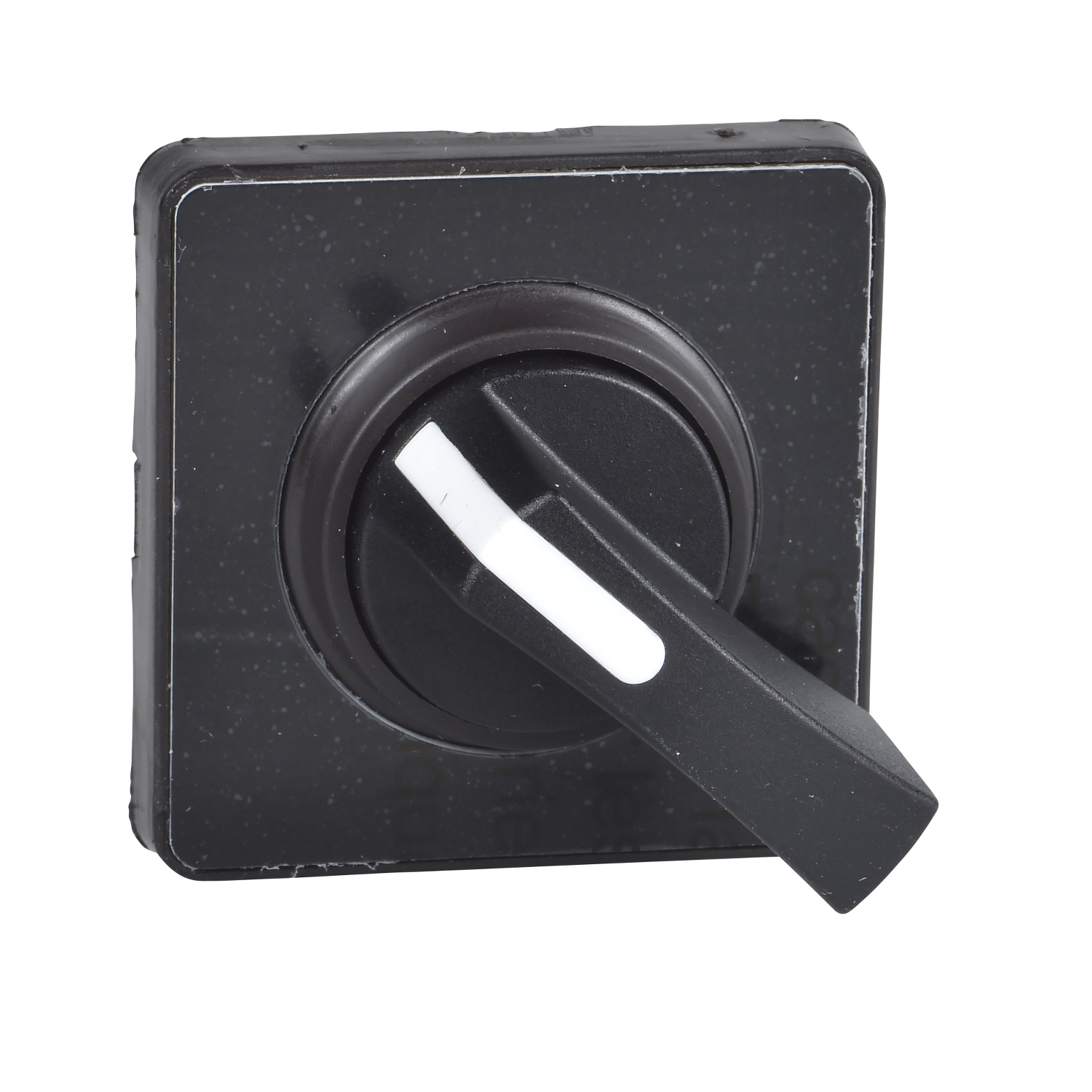

This Harmony KAE1H is a black operating head 45 x 45mm with black handle, blank for engraving. It is part of the range Harmony K diameter 16-22mm rotary cam switches.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Rotary handle padlocking | without |
| Cam switch head type | with front plate 45 x 45 mm |
| Product compatibility | rear mounting bodies 12 and 20 A by 4 holes |
| Type of operator | black handle, length = 35 mm |
| Component name | KAE |
| Product or component type | cam switch operating head |
| Presentation of legend | with mat black legend |
| Range of product | Harmony Series K |
| Complementary | |
| CAD overall depth | 60 mm |
| CAD overall width | 45 mm |
| Compatibility code | KAE |
| Mechanical durability | 1000000 cycles |
| CAD overall height | 45 mm |
| Net weight | 0.029 kg |
| Length | 35 mm |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP40 conforming to NF C 20-010, IP40 conforming to IEC 529 |
| Shock resistance | 30 gn conforming to IEC 68-2-27 |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz) |
| Ambient air temperature for operation | -25-55 °C |
