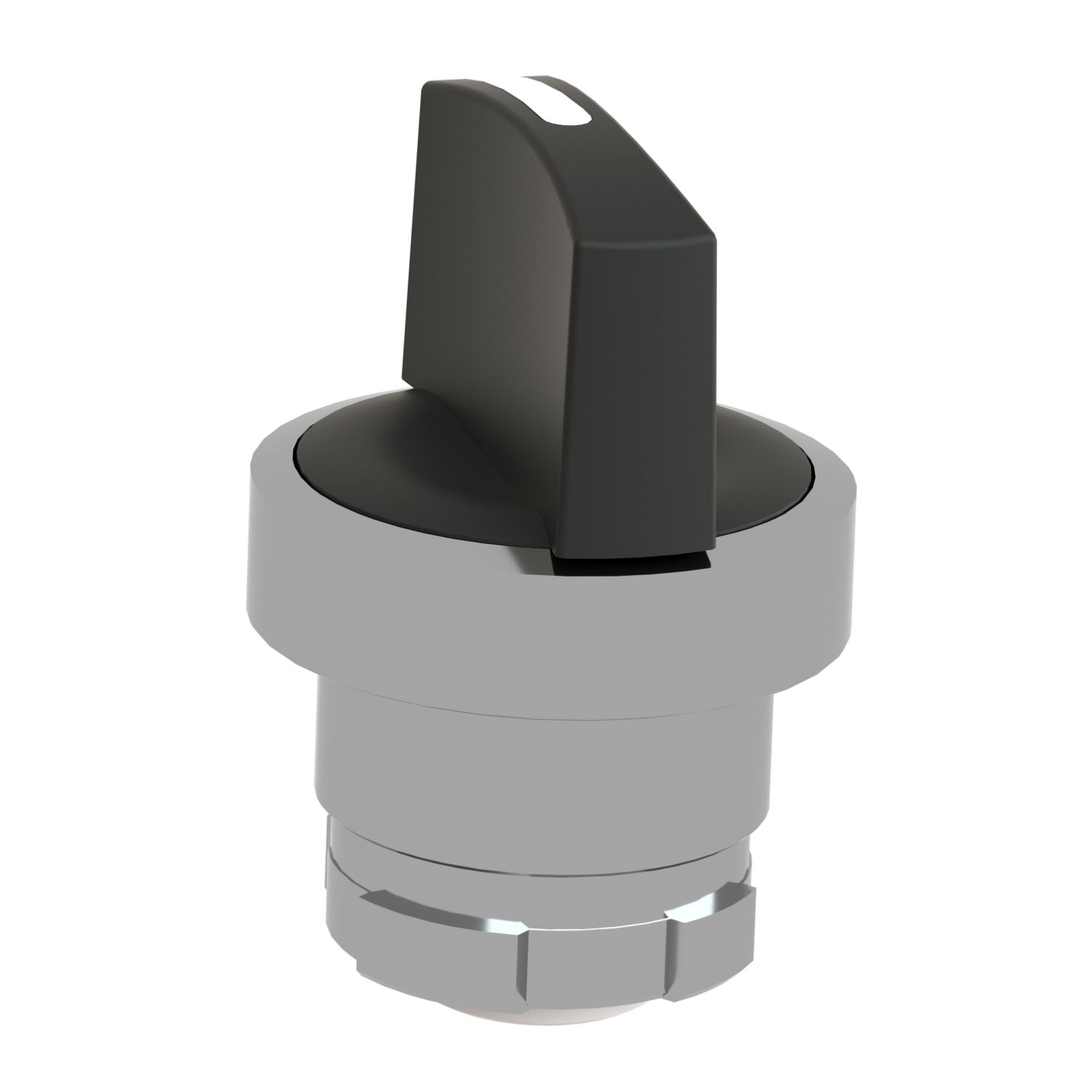

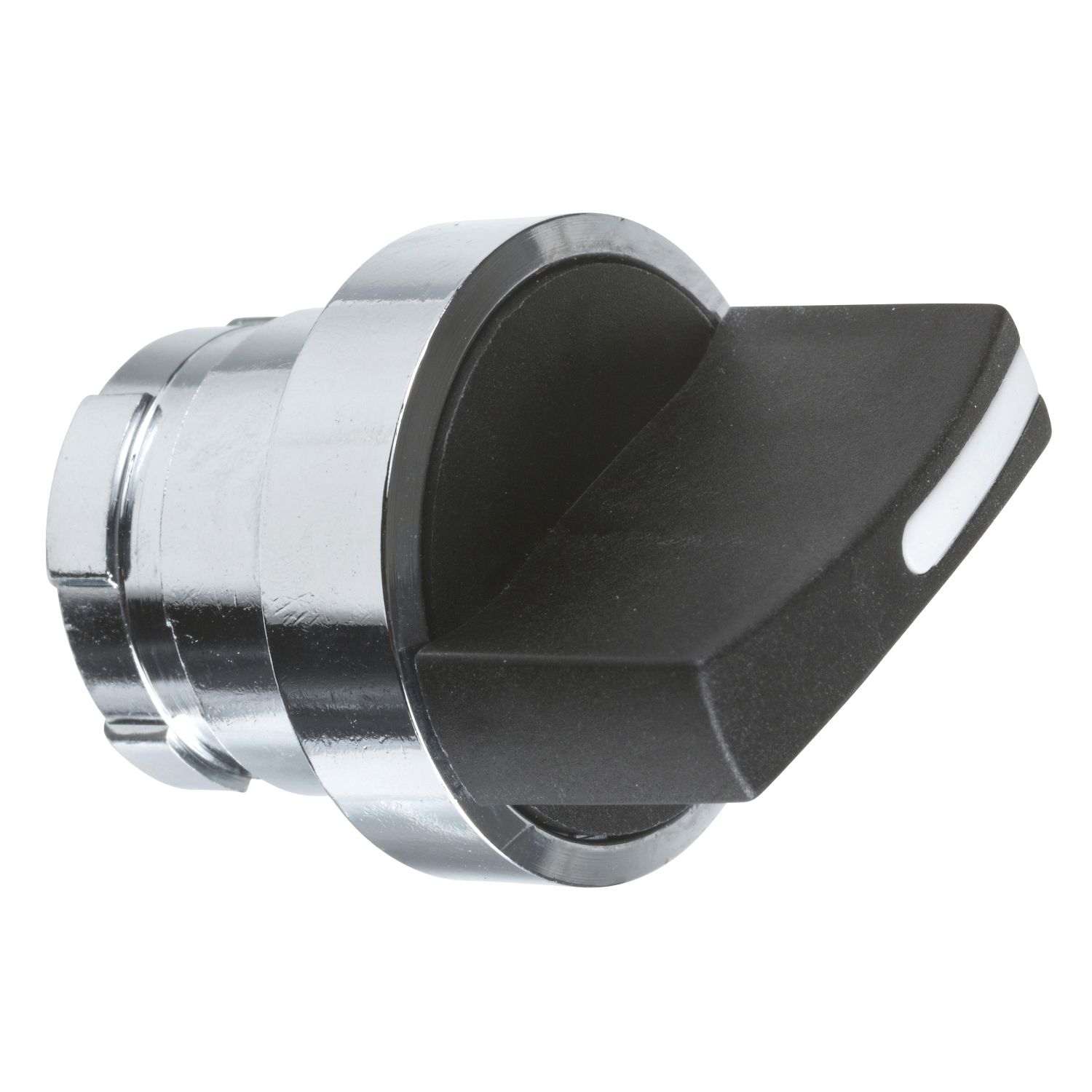

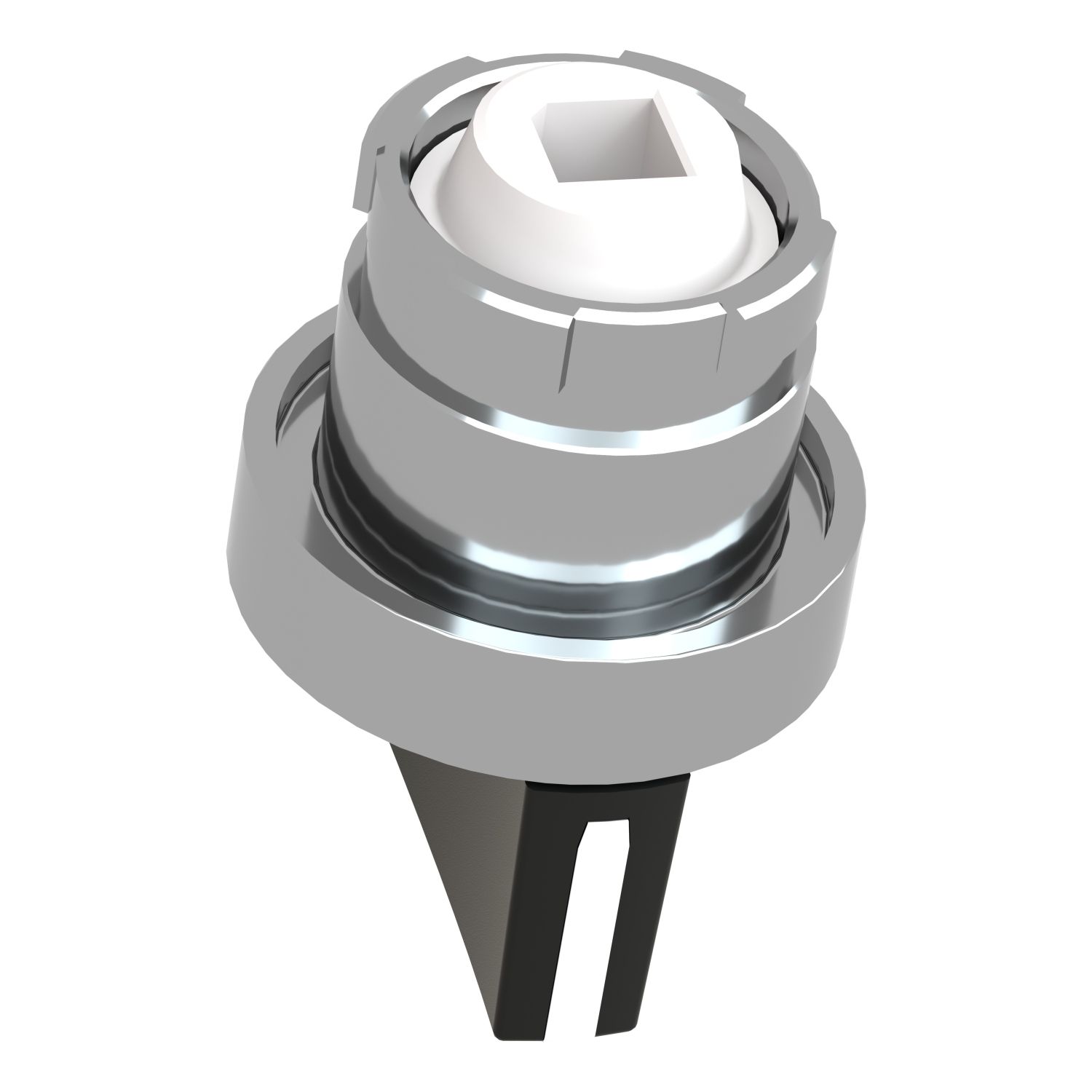

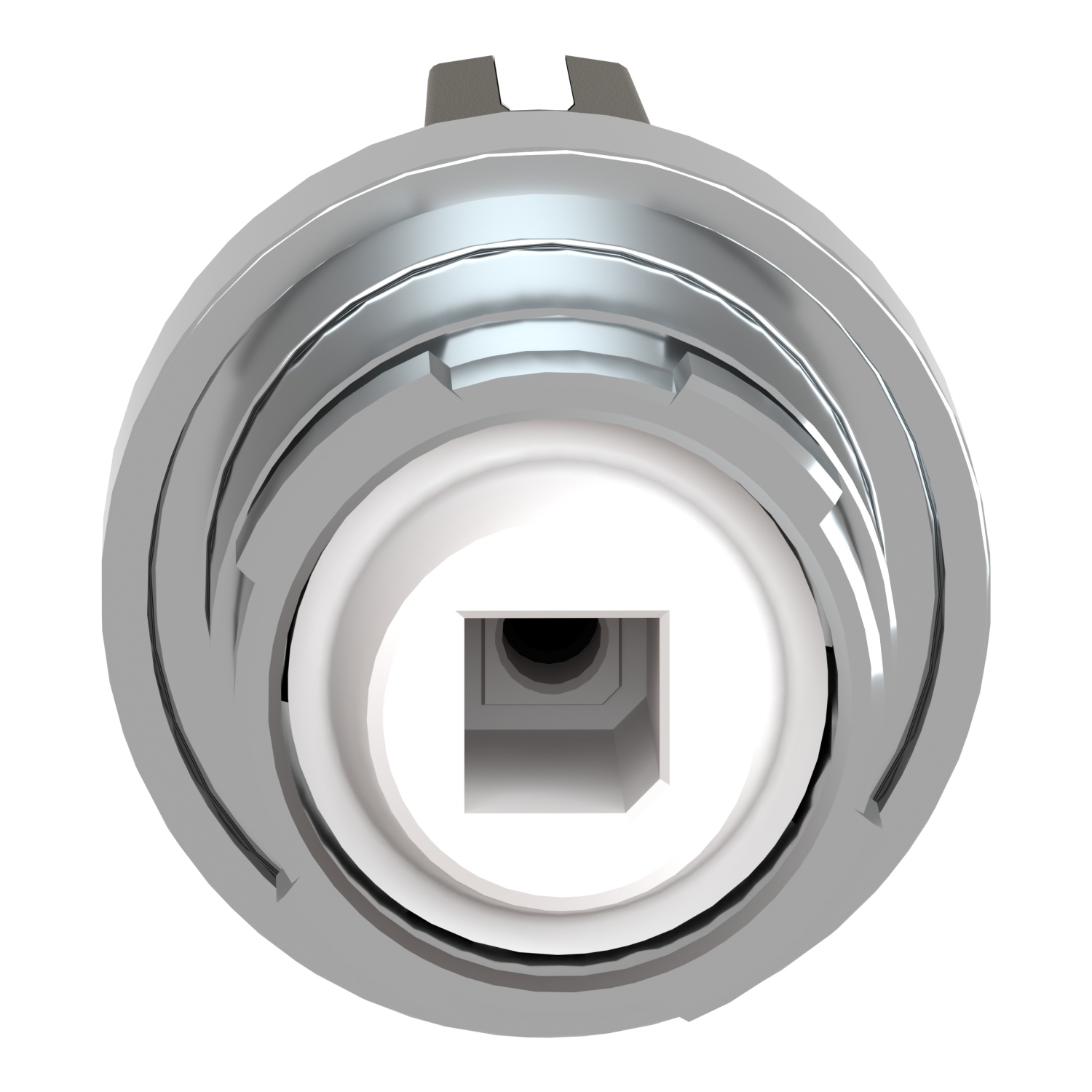

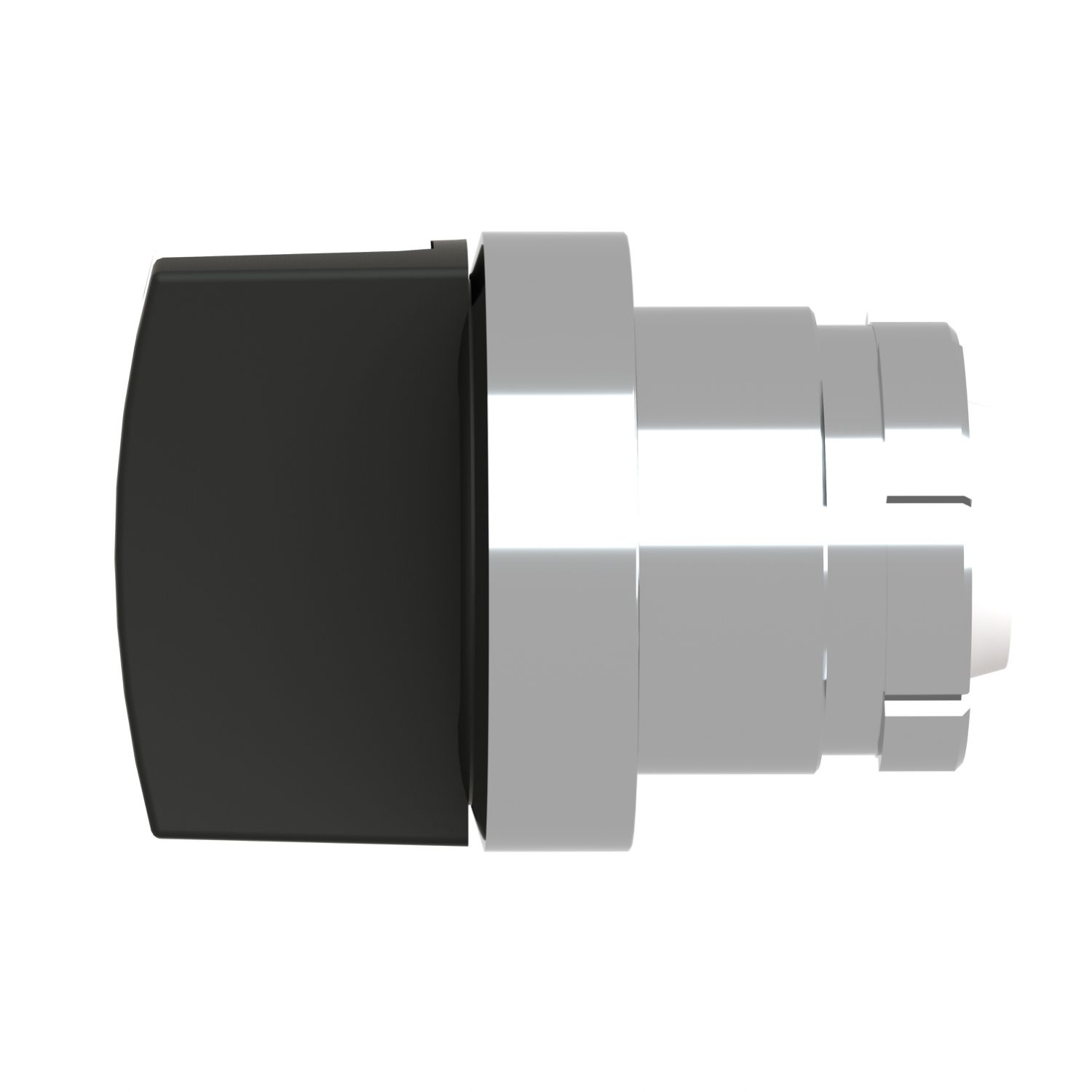

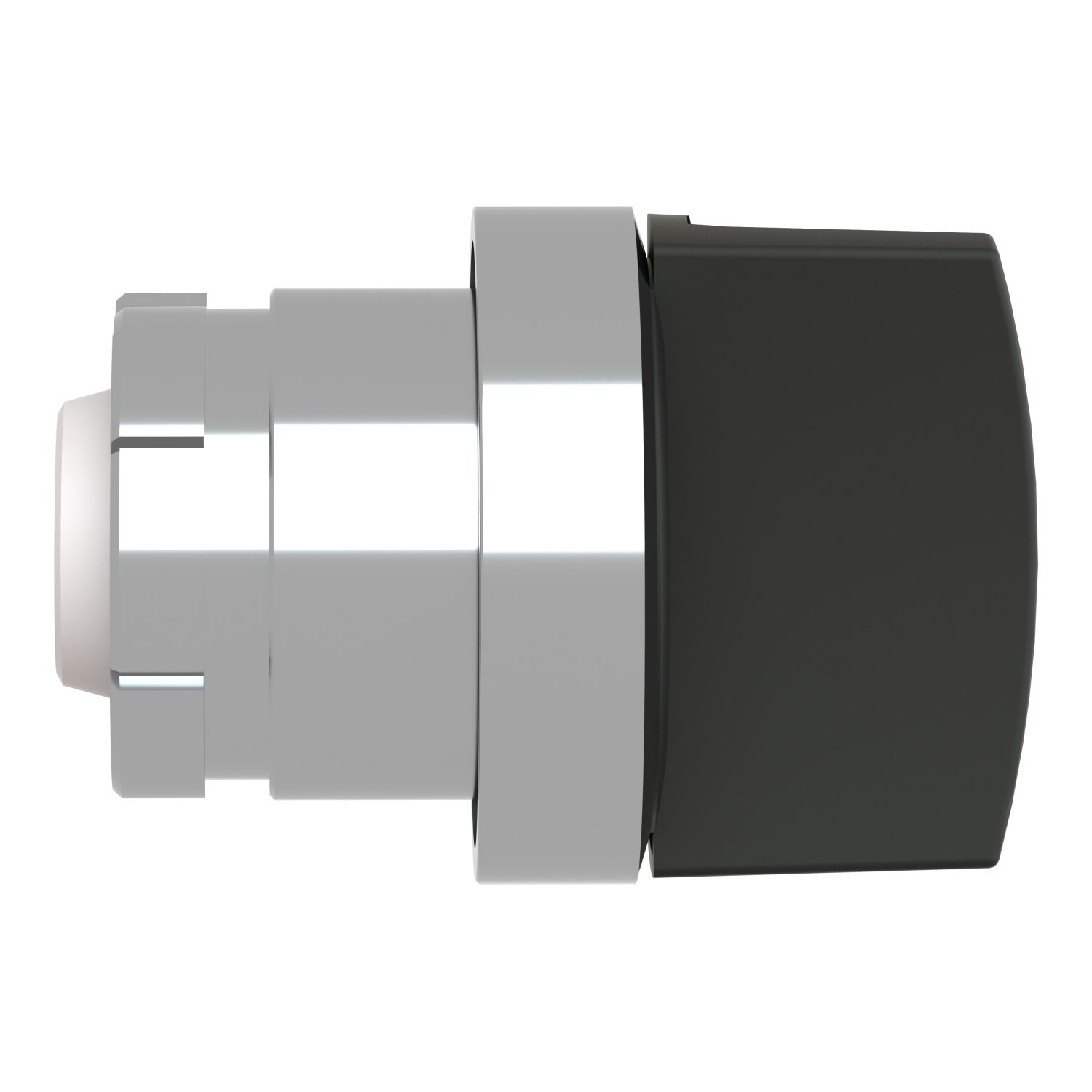

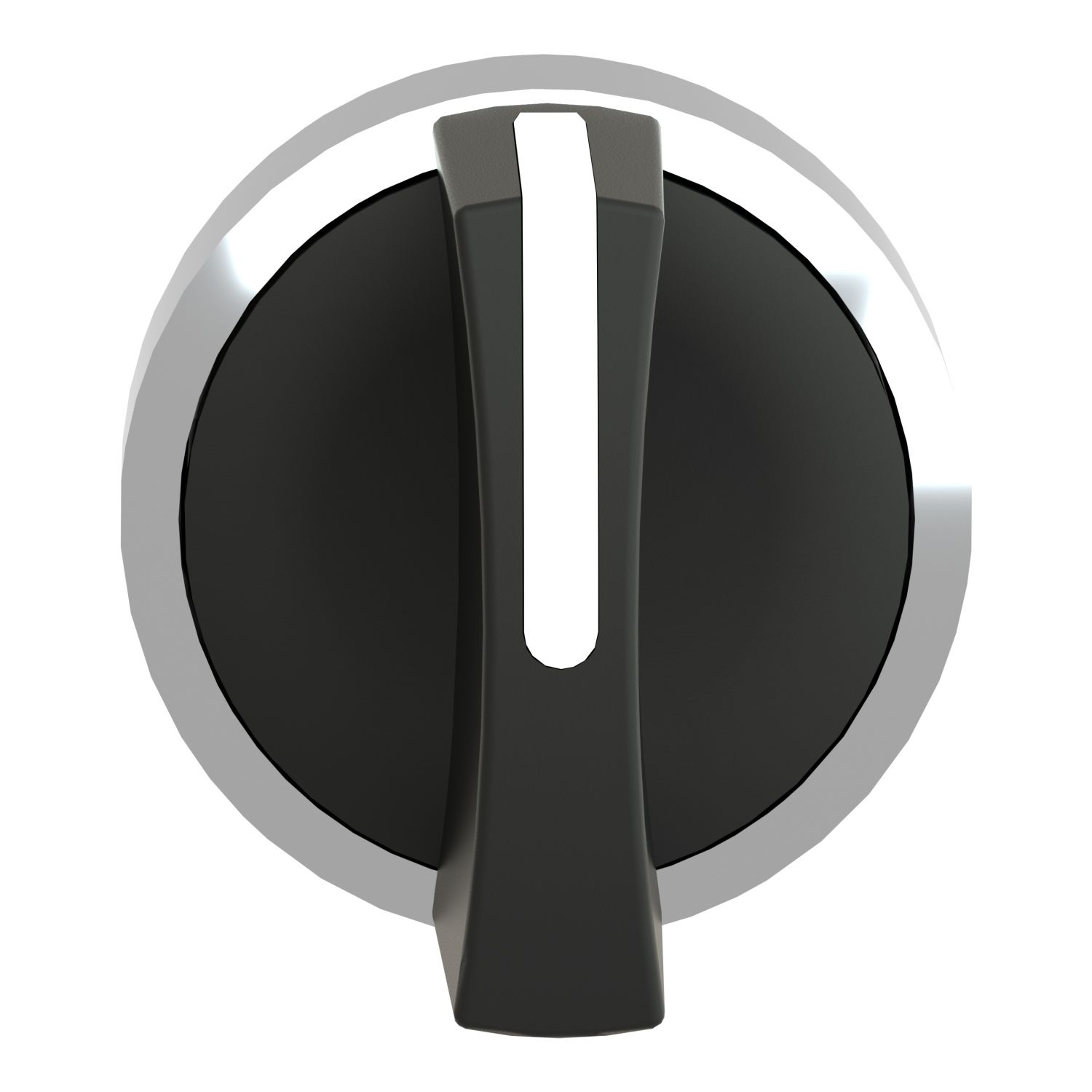

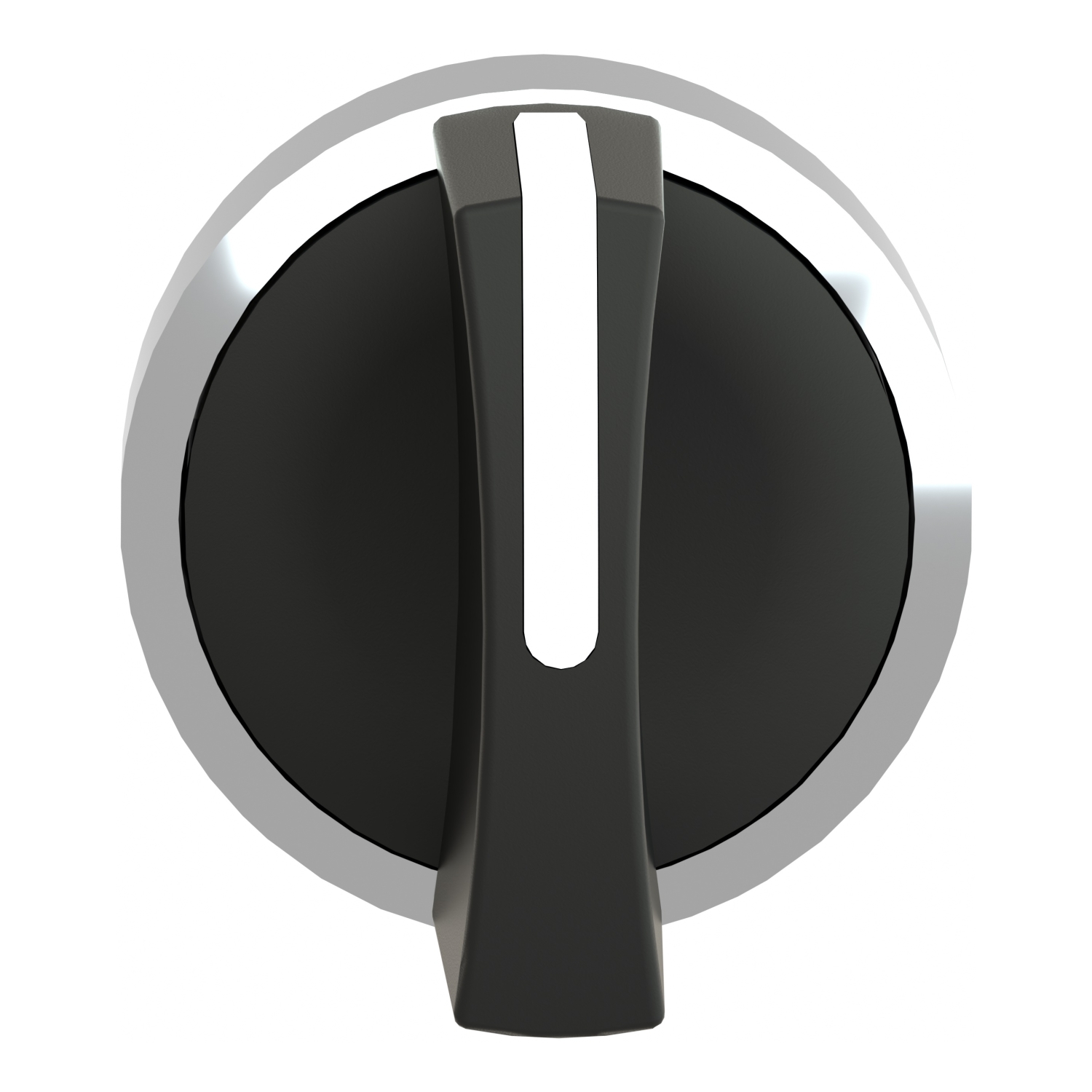

This Harmony KAX operating head is part of the range Harmony K rotary cam switches It is supplied with diameter 28.5mm chromium plated metal bezel and black standard handle. It is compatible with diameter 22mm front mounting bodies. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 40g.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Cam switch head type | with bezel Ø 28.5 mm, metal |
| Type of operator | black standard handle |
| Range of product | Harmony Series K |
| Rotary handle padlocking | without |
| Product compatibility | front mounting bodies 12 and 20 A by Ø 22 mm hole |
| Component name | KAX |
| Product or component type | cam switch operating head |
| Presentation of legend | with mat black legend |
| Complementary | |
| Compatibility code | KAX |
| Mechanical durability | 1000000 cycles |
| CAD overall height | 29 mm |
| CAD overall depth | 25 mm |
| CAD overall width | 29 mm |
| Net weight | 0.04 kg |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to NF C 20-010, IP65 conforming to IEC 529 |
| Shock resistance | 30 gn conforming to IEC 68-2-27 |
| Ambient air temperature for operation | -25-55 °C |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz) |
