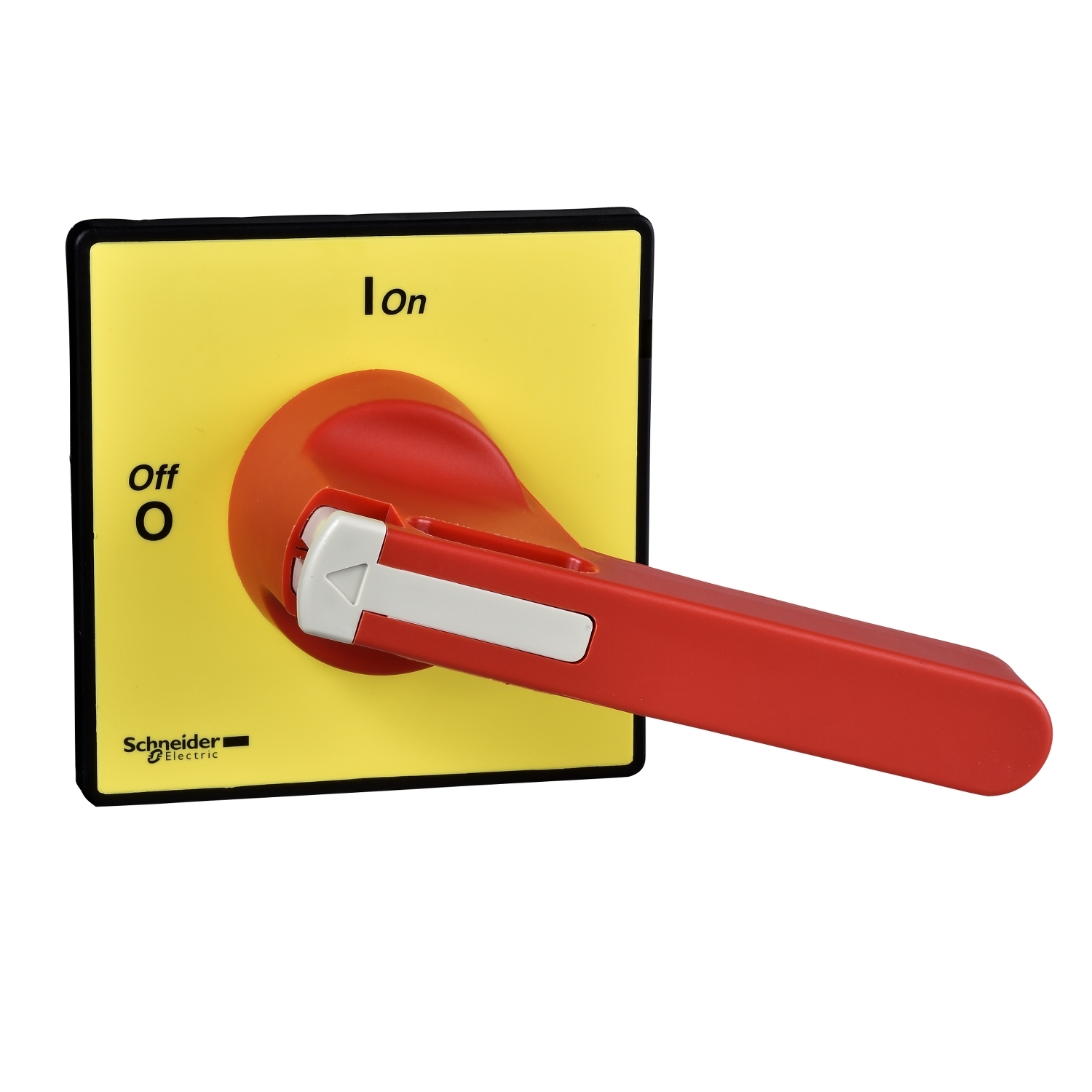

TeSys Vario operating handle, for TeSys Vario switch bodies V5-V6. It provides a red long handle and yellow front plate 90x90mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Environmental product (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | KCF3 |
| Product compatibility | V6, V5 |
| Range | TeSys |
| Product or component type | rotary handle |
| Handle colour | red |
| Complementary | |
| Width | 90 mm |
| Compatibility code | switch operator |
| Net weight | 0.16 kg |
| Base dimension | 90 x 90 mm |
| Marking | 0 - 1 |
| Fixing mode | by 4 screws |
| Handle front plate colour | yellow |
| Height | 90 mm |
| Rotary handle padlocking | 1 to 3 padlocks 4-8 mm |
| Environment | |
| IP degree of protection | IP65 |
