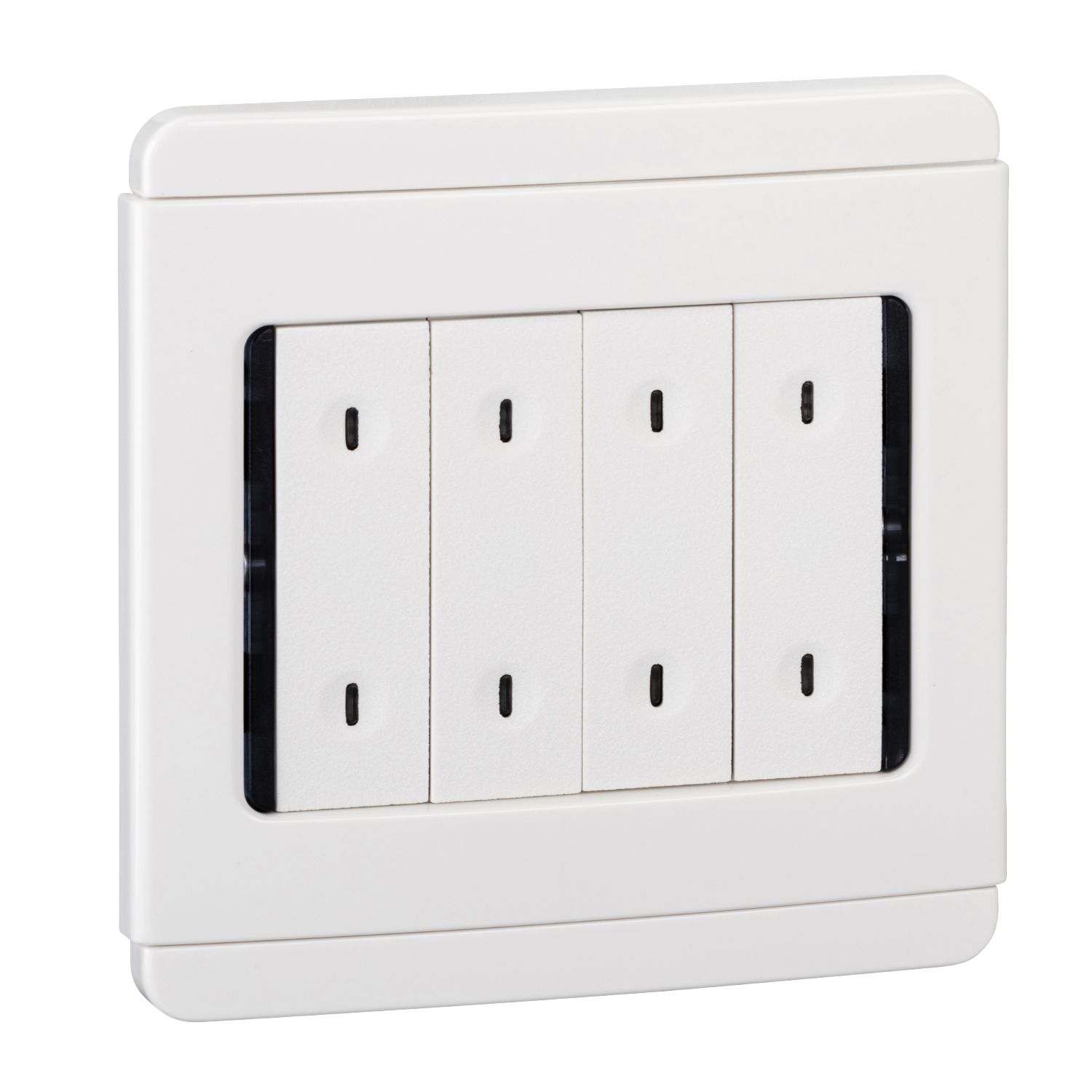

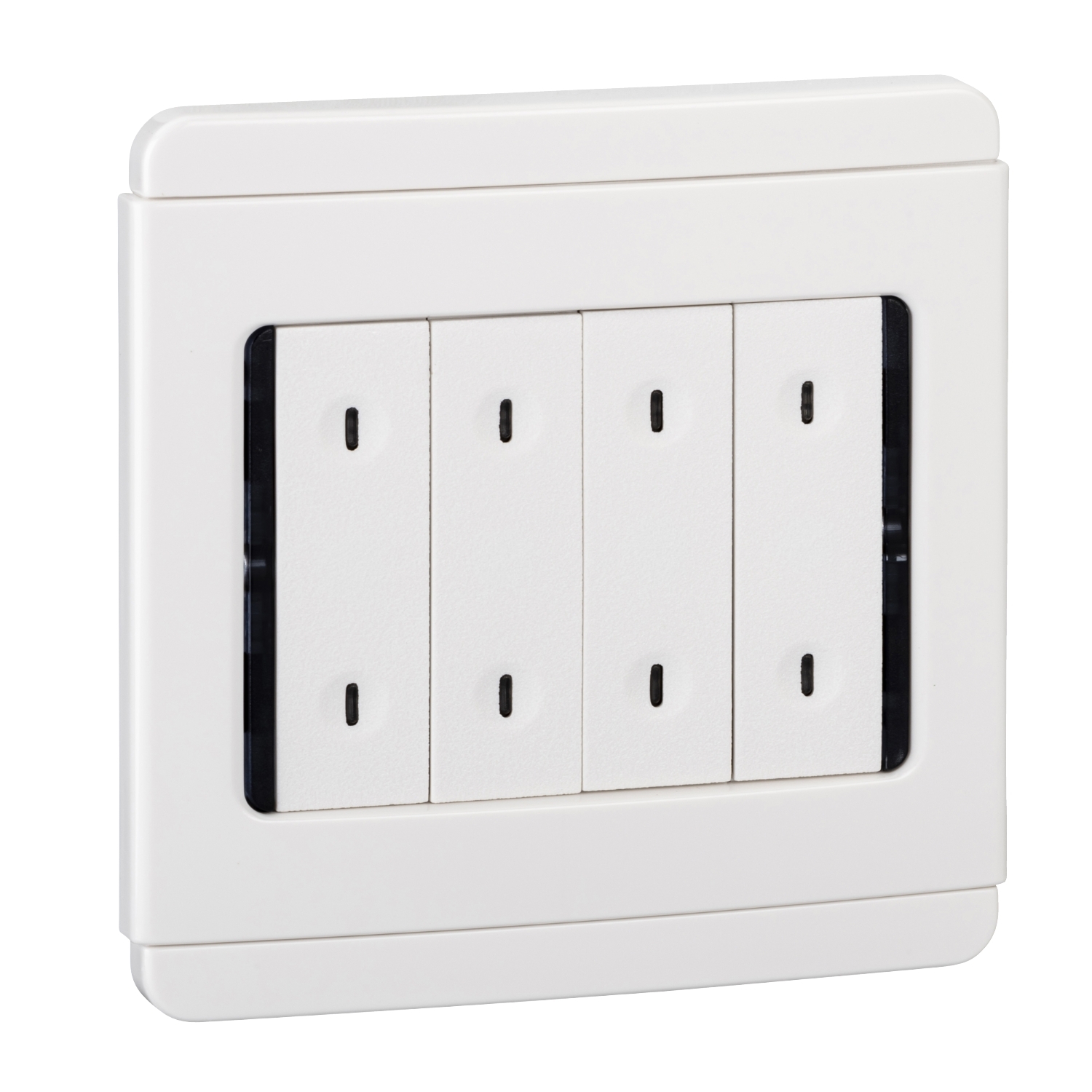

KEY INP 8G NEO- white

Manufacturer: Clipsal

SKU: E5058NL-WE

GTIN: 9311554553746

User guide

Environmental Disclosure

Circularity Profile

Catalog

Instruction sheet

CAD

Brochure

Old price: $503.80 inc GST

Price: $725.47 inc GST

Qty:

Supported cards

Products specifications

Attribute name	Attribute value
Main
Device application	control
Range	C-Bus
Product name	C-Bus Neo E-Series
Product or component type	switch
Product brand	Clipsal
Complementary
[Ue] rated operational voltage	15...36 V DC
Device composition	receiver
Data backed up	non-volatile memory
Depth	22 mm
Width	76 mm
Communication network type	C-Bus 100
Switch function	toggle, time switch function, dimmer, scene control
[In] rated current	22 mA
Local signalling	LED (blue/orange) for status
Sensor type	infrared sensor
Resolution	1 s
Colour	white electric
Time delay range	1 s...18 h
Dimmer control	255 possible levels
Isolation voltage	3.75 kV from C-Bus to mains
Device presentation	basic element with full cover plate
Input impedance	100 kOhm at 1-1 kHz
Control type	rocker, remote control
Colour code	WE
Net weight	0.077 kg
Material	plastic
Fixing center	60.3 mm
Starting time	5 s
Mounting support	wall
Number of gangs	4 gangs
Connections - terminals	terminal block - 0.2-1.3 mm² (AWG 24...AWG 16)
Height	116 mm
Environment
Relative humidity	10-95 % non-condensing
Standards	EN 61000-3-3, EN 61000-4-2, EN 61000-3-2, EN 61000-4-5, EN 61000-4-6, EN 60699-2-1, EN 55014-1, EN 61000-4-3, BS
Ambient air temperature for operation	0-45 °C
Product certifications	CE, C-Tick
