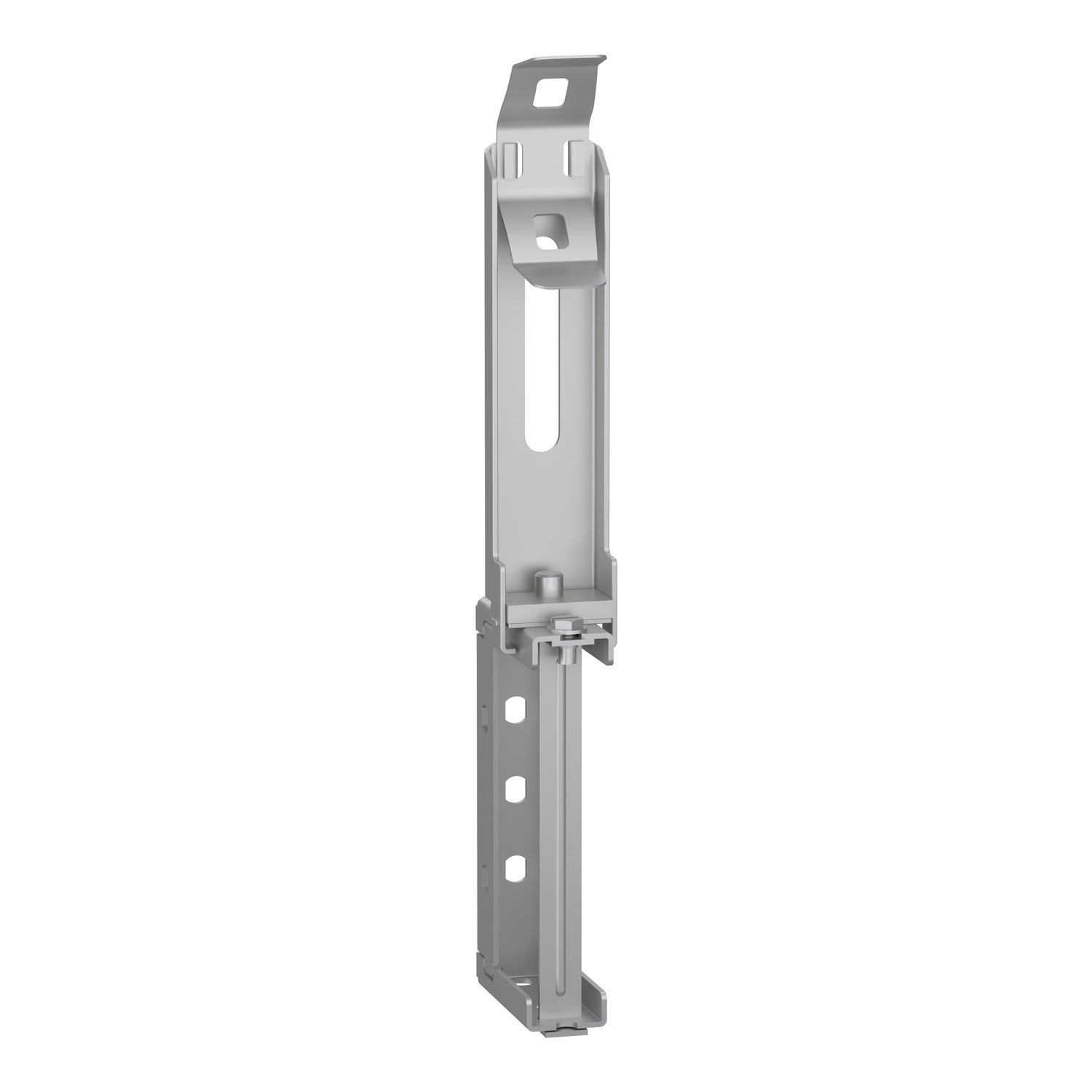

This product is an spring fixing bracket system for Canalis KN offer. It is used for attachment of the busbar trunking and to the structure of the building. It is a suspended mounting system on M8 threaded rods. The bracket is attached to the treaded rod by the spring mechanism, without nuts or bolts, and does not require any tool. The maximum load is 100kg. Sold in lots of 10 parts. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | KN |
| Quantity per set | set of 10 |
| Maximum load | 100 kg |
| Fixing device mounting | suspended on threaded rod |
| Range | Canalis |
| Product name | KN |
| Product or component type | fixing bracket |
| Range of product | Canalis |
| Complementary | |
| Depth | 61 mm |
| Width | 33 mm |
| Net weight | 260 g |
| Accessory / separate part category | fixing accessory |
| Height | 272 mm |
| Environment | |
| Standards | IEC 60439-2, IEC 61439-6 |
