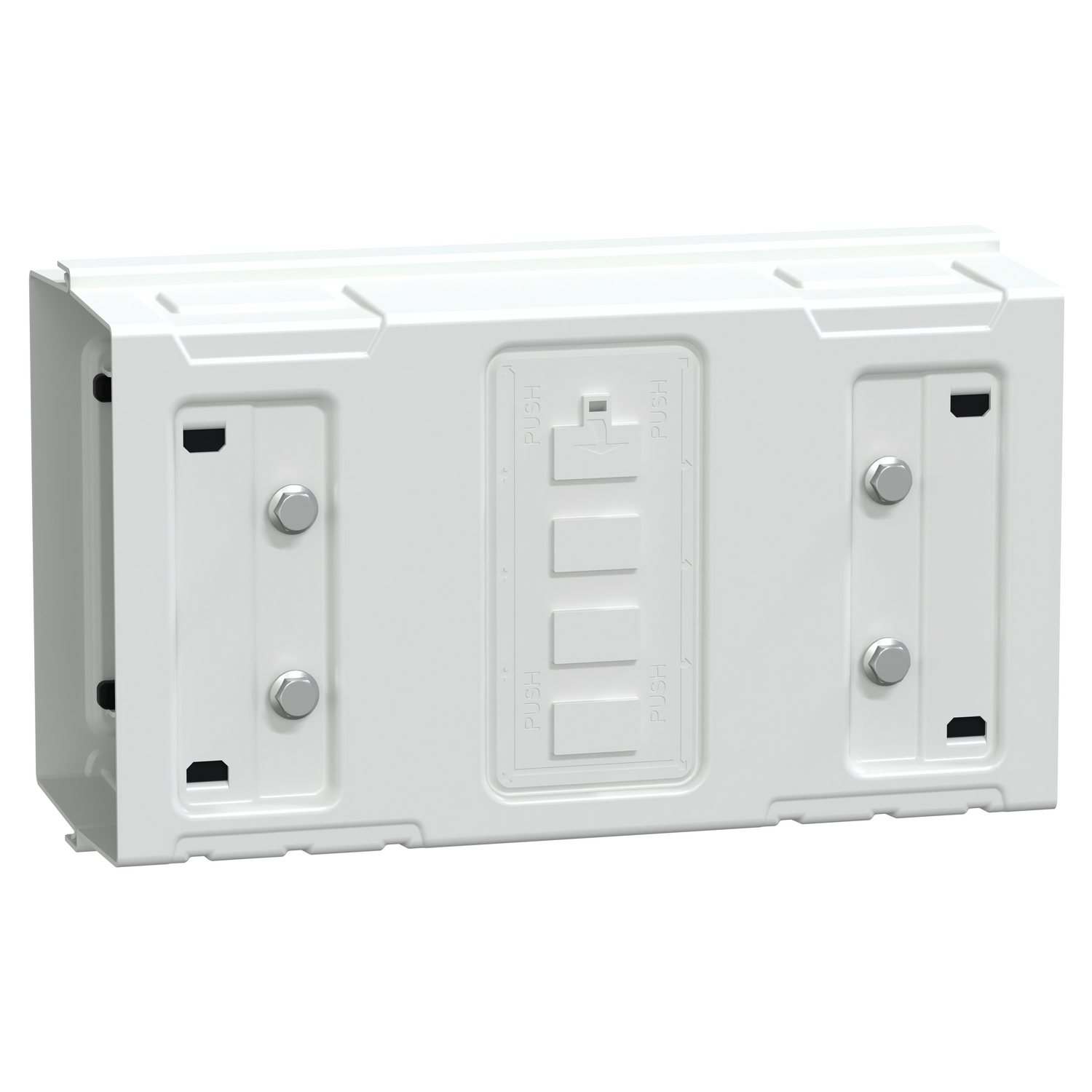

Canalis electrical and mechanical jointing for KSA. It's applied to medium power distribution. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 800A and 1000A. It belongs to spare part with white RAL 9001 surface treatment. Designed with 1 circuit allowing. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | KS |
| Colour | white (RAL 9001) |
| [Ie] rated operational current | 800 A, 1000 A |
| Range | Canalis |
| Product name | KS |
| Product or component type | electrical and mechanical jointing |
| Offer type | spare part |
| Range of product | Canalis |
| Complementary | |
| [Ue] rated operational voltage | 230...690 V |
| Device application | medium power distribution |
| Depth | 117 mm |
| Width | 276 mm |
| Busbar trunking polarity | 3L + N + PE |
| Control type | without |
| Net weight | 4.5 kg |
| Number of circuits | 1 |
| Height | 167 mm |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Standards | IEC 60439-2, IEC 61439-6 |
| IK degree of protection | IK08 conforming to IEC 62262 |
