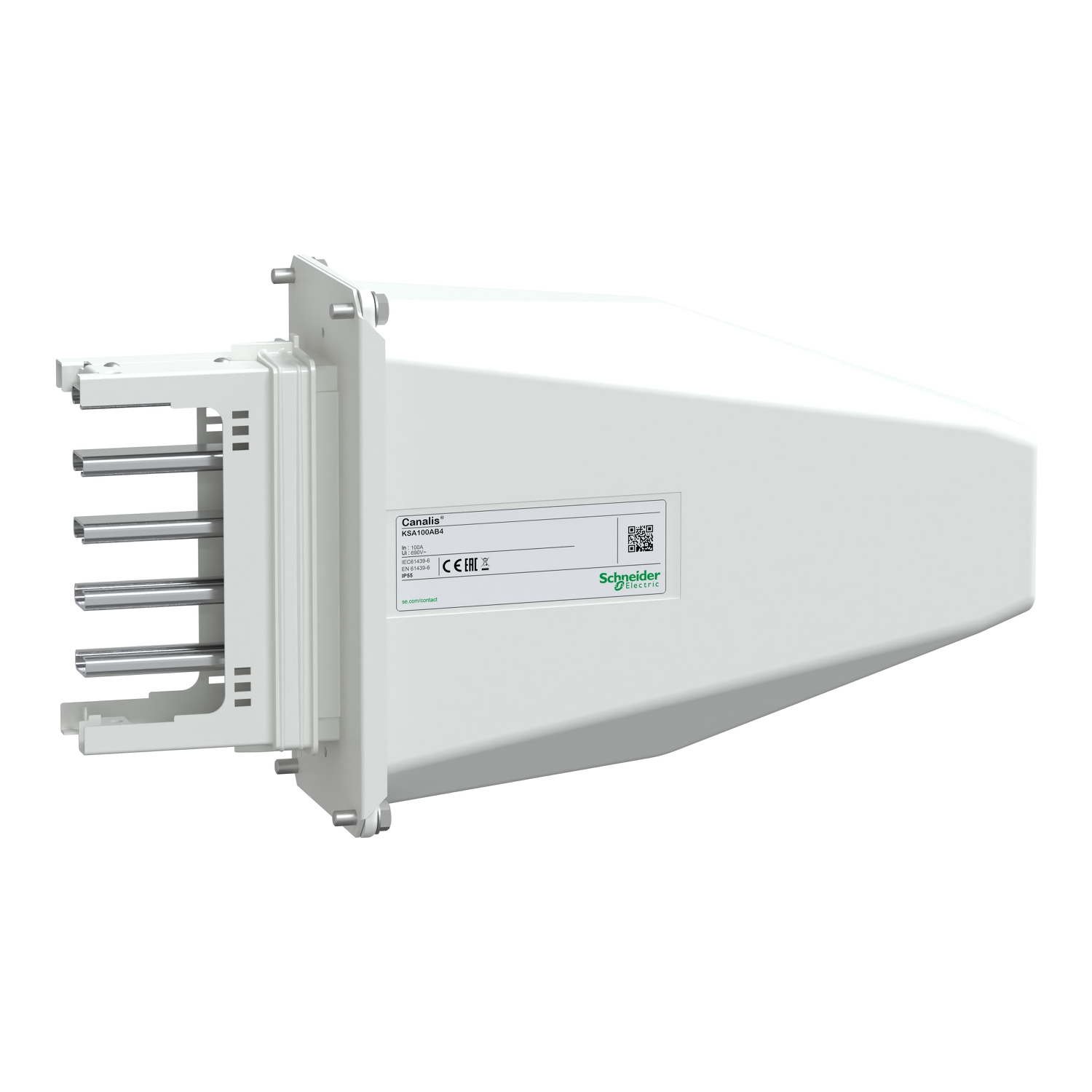

Canalis feed-unit for KSA. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 100A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by screws with right/left mounting location, connection by terminal block. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | 230...690 V |
| Device short name | KSA |
| Colour | white (RAL 9001) |
| Protection type | without protection |
| [Ie] rated operational current | 100 A |
| Busbar trunking polarity | 3L + N + PE |
| Control type | without |
| Range | Canalis |
| Material | aluminium |
| Number of circuits | 1 |
| Product name | KS |
| Product or component type | feed unit |
| Product compatibility | Canalis KSA busbar trunking 100-250 A |
| Offer type | rising main, classic |
| Range of product | Canalis |
| Complementary | |
| Depth | 112 mm |
| Width | 390 mm |
| Provided equipment | end cover |
| Body material | plastic |
| Mounting mode | by screws |
| Mounting location | left, right |
| Net weight | 1.8 kg |
| Mounting support | busbar |
| Connections - terminals | terminal block for 16-16 mm² rigid, terminal block for 16-16 mm² flexible |
| Standards | IEC 61439-6, IEC 61439-1 |
| Height | 212 mm |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
