Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | 230...690 V |
| Device short name | KSA |
| Device application | change direction |
| Colour | white (RAL 9001) |
| [Ie] rated operational current | 250 A at 35 °C |
| Busbar description | standard on made to measure (per side) |
| Dimension type | made to measure |
| Busbar trunking polarity | 3L + N + PE |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Range | Canalis |
| Material | aluminium |

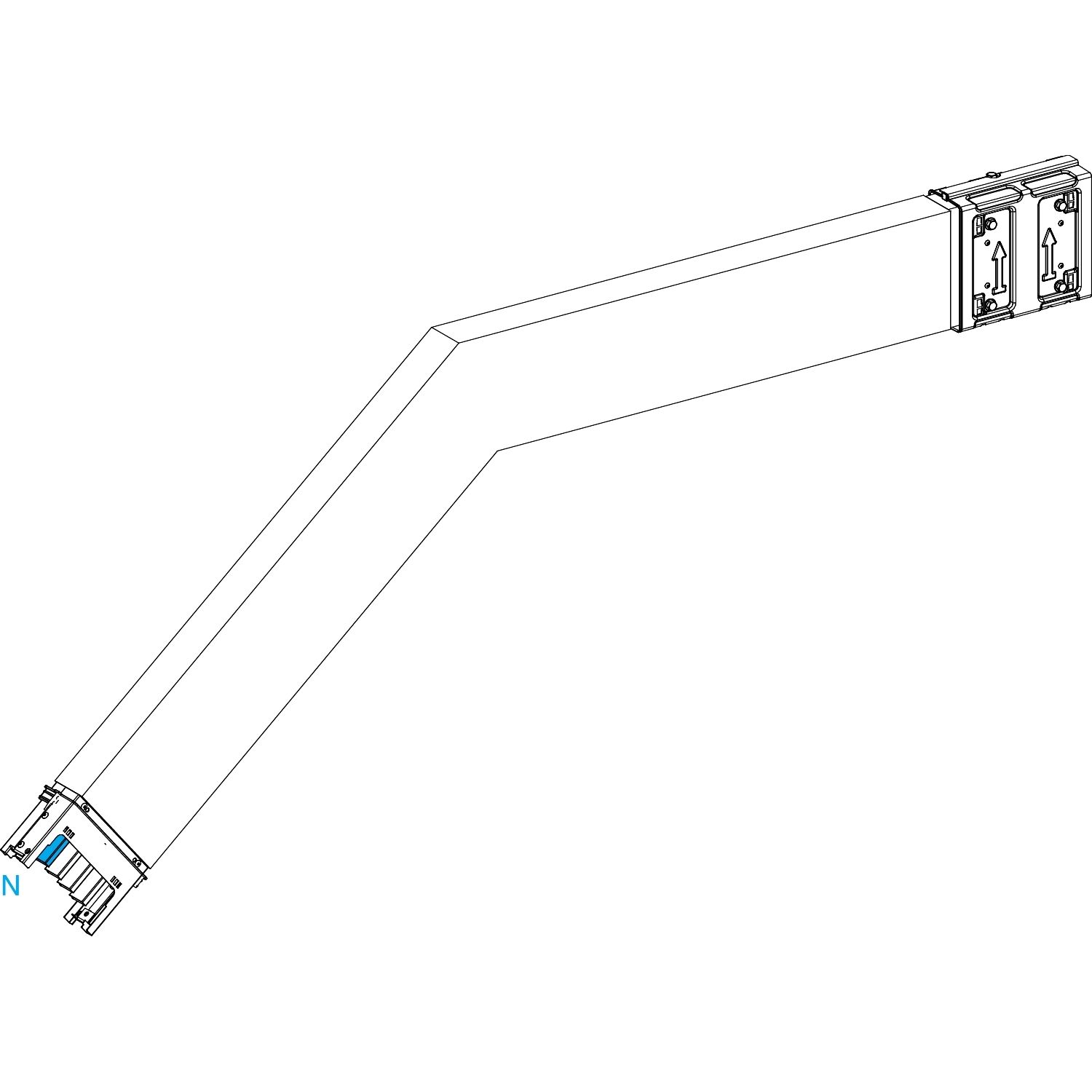

| Direction change type | direction 1 : edgewise to downward - neutral to right |
| Product name | KS |
| Product or component type | elbow |
| Product compatibility | Canalis KSA busbar trunking 400-400 A |
| Offer type | advanced |
| Operating angle | 95-175 ° |
| Range of product | Canalis |
| Network frequency | 50/60 Hz |
| Complementary | |
| Width | 54 mm |
| Mounting position | any position |
| Electrical connection | lubricated sliding contact |
| Mounting mode | by screws |
| Mounting location | on trunking |
| Length | 250-750 mm for side B, 250-750 mm for side A |
| Standards | IEC 61439-6, IEC 61439-1 |
| Height | 146-146 mm |
| Environment | |
| IK degree of protection | IK08 conforming to IEC 62262 |
