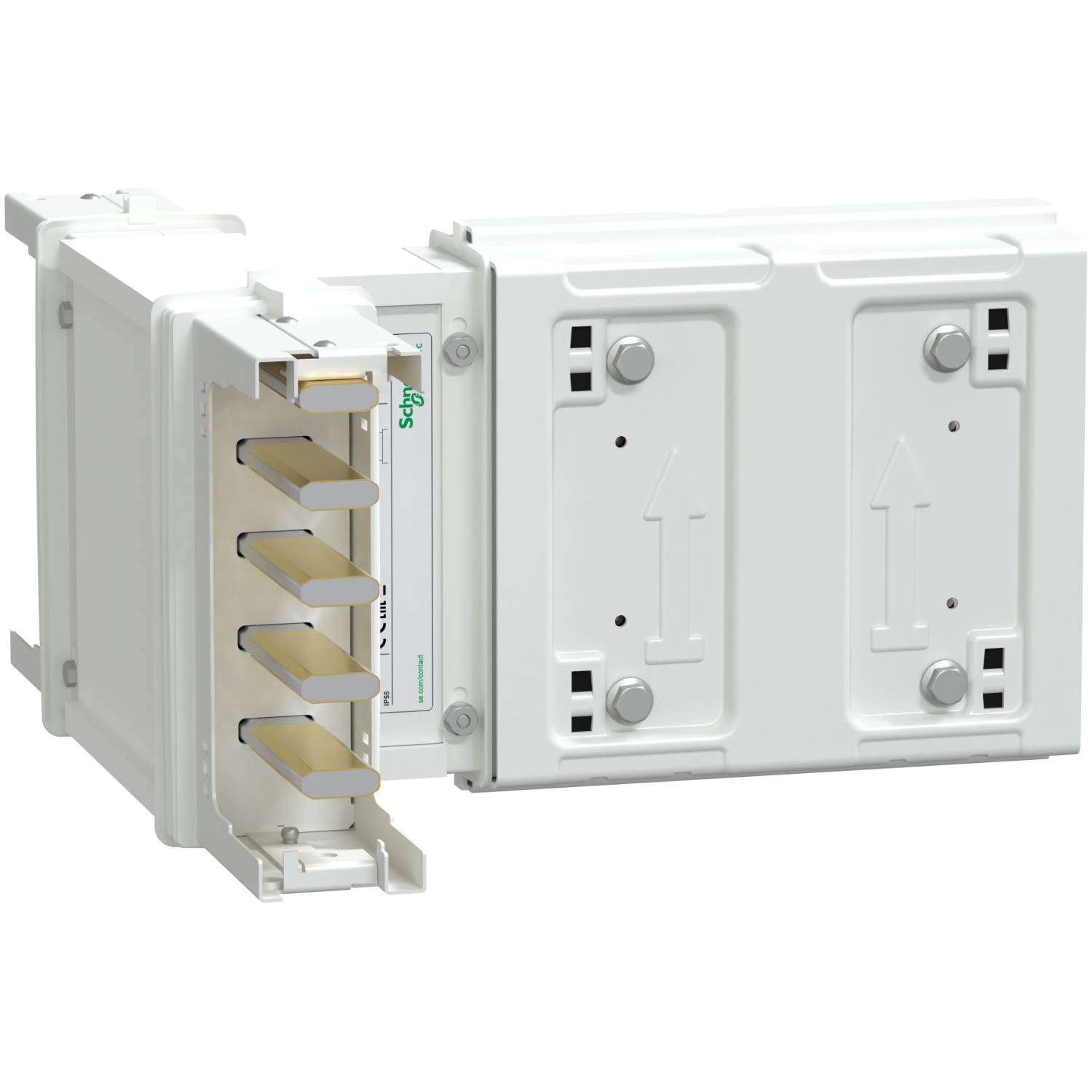

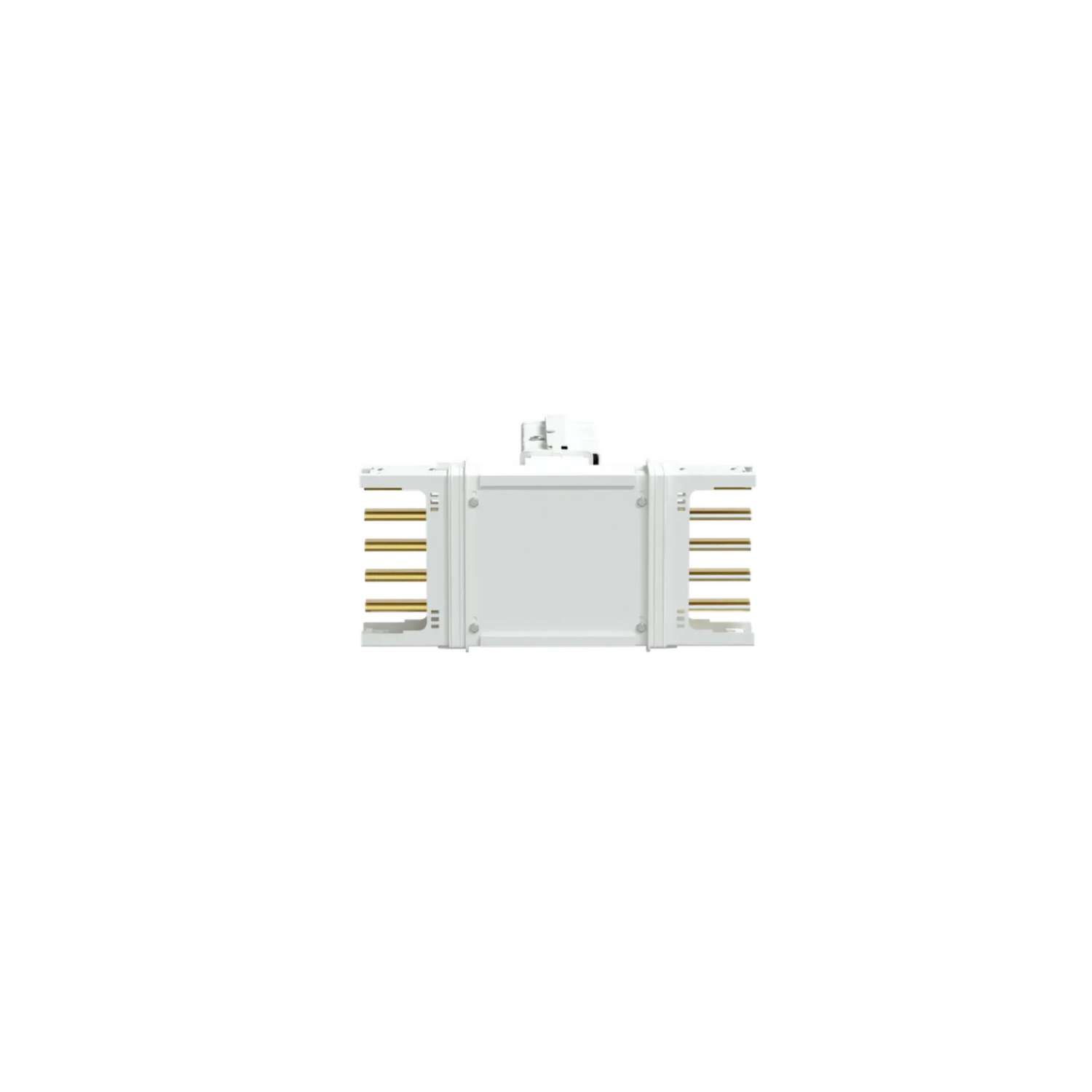

Canalis busway power distribution tee for KS. It's applied to change direction which could edgewise to perpendicular and neutral to up. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. Designed to mount on trunking with 90 ° operating angle and standard aluminium busbar. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | 230...690 V |
| Device short name | KSA |
| Device application | change direction |
| Colour | white (RAL 9001) |
| [Ie] rated operational current | 250 A at 35 °C |
| Busbar description | standard |
| Dimension type | made to measure |
| Busbar trunking polarity | 3L + N + PE |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Range | Canalis |
| Material | aluminium |
| Direction change type | edgewise to perpendicular - neutral to up |
| Product name | KS |
| Product or component type | tee |
| Product compatibility | Canalis KSA busbar trunking 100-250 A |
| Offer type | advanced |
| Operating angle | 90-90 ° |
| Range of product | Canalis |
| Network frequency | 50/60 Hz |
| Complementary | |
| Width | 54 mm |
| Mounting position | any position |
| Electrical connection | lubricated sliding contact |
| Mounting mode | by screws |
| Mounting location | on trunking |
| Net weight | 4.3 kg |
| Length | 165-165 mm for side C, 165-165 mm for side B, 165-165 mm for side A |
| Standards | IEC 61439-6, IEC 61439-1 |
| Height | 146-146 mm |
| Environment | |
| IK degree of protection | IK08 conforming to IEC 62262 |
