Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | 230...690 V |
| Device short name | KSA |
| Colour | white (RAL 9001) |
| Protection type | circuit breaker protection |
| [Ie] rated operational current | 400 A |
| Busbar trunking polarity | 3L + PEN |
| Control type | rotary handle |
| Range | Canalis |
| Material | aluminium |
| Number of circuits | 1 |
| Product name | KS |

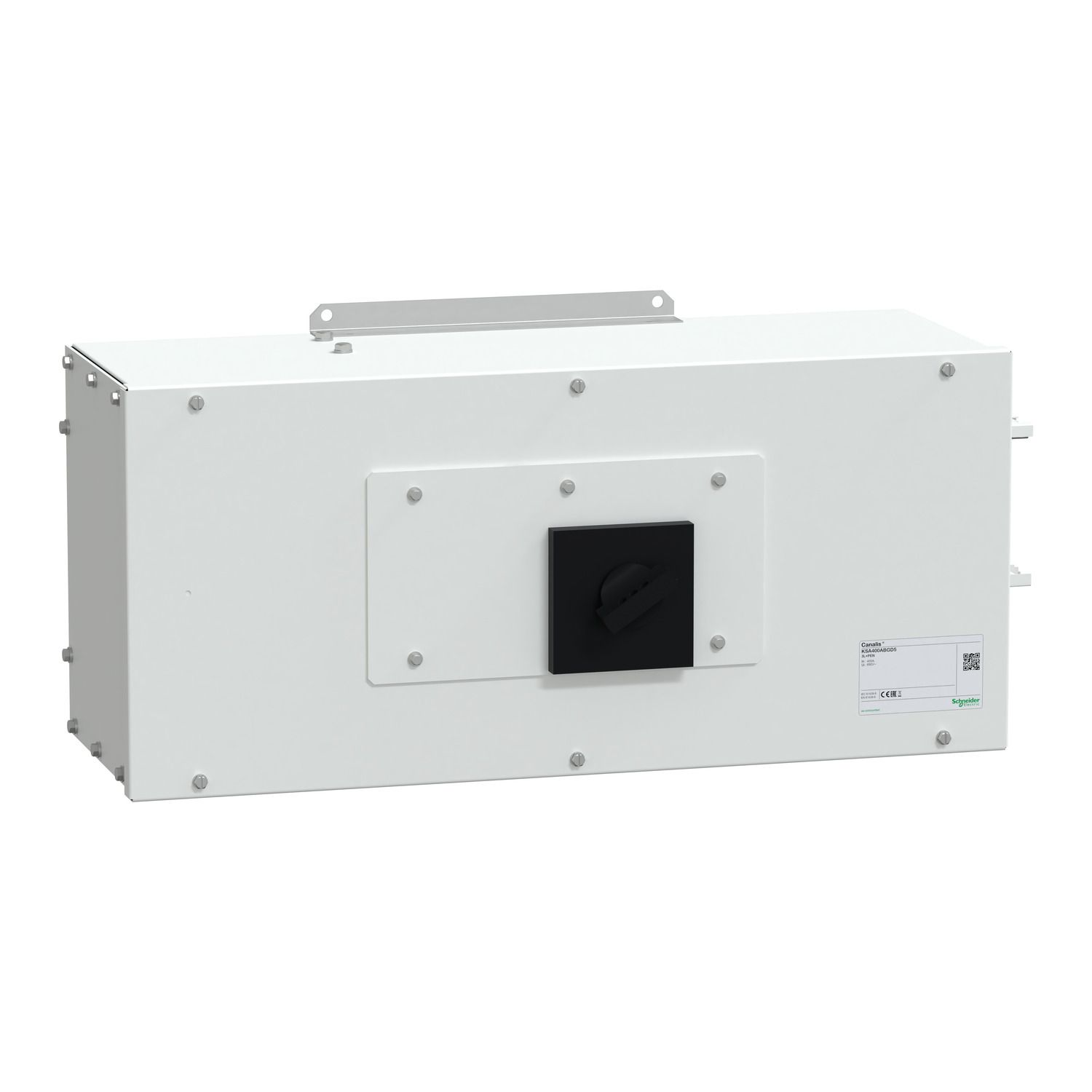

| Product or component type | feed unit |
| Product compatibility | Canalis KSA busbar trunking 400-400 A |
| Offer type | advanced |
| Range of product | Canalis |
| Complementary | |
| Depth | 276 mm |
| Width | 860 mm |
| Body material | metal |
| Mounting location | left |
| Net weight | 22.6 kg |
| Mounting support | busbar |
| Connections - terminals | bars, cable with lug |
| Standards | IEC 61439-6, IEC 61439-1 |
| Height | 346 mm |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
