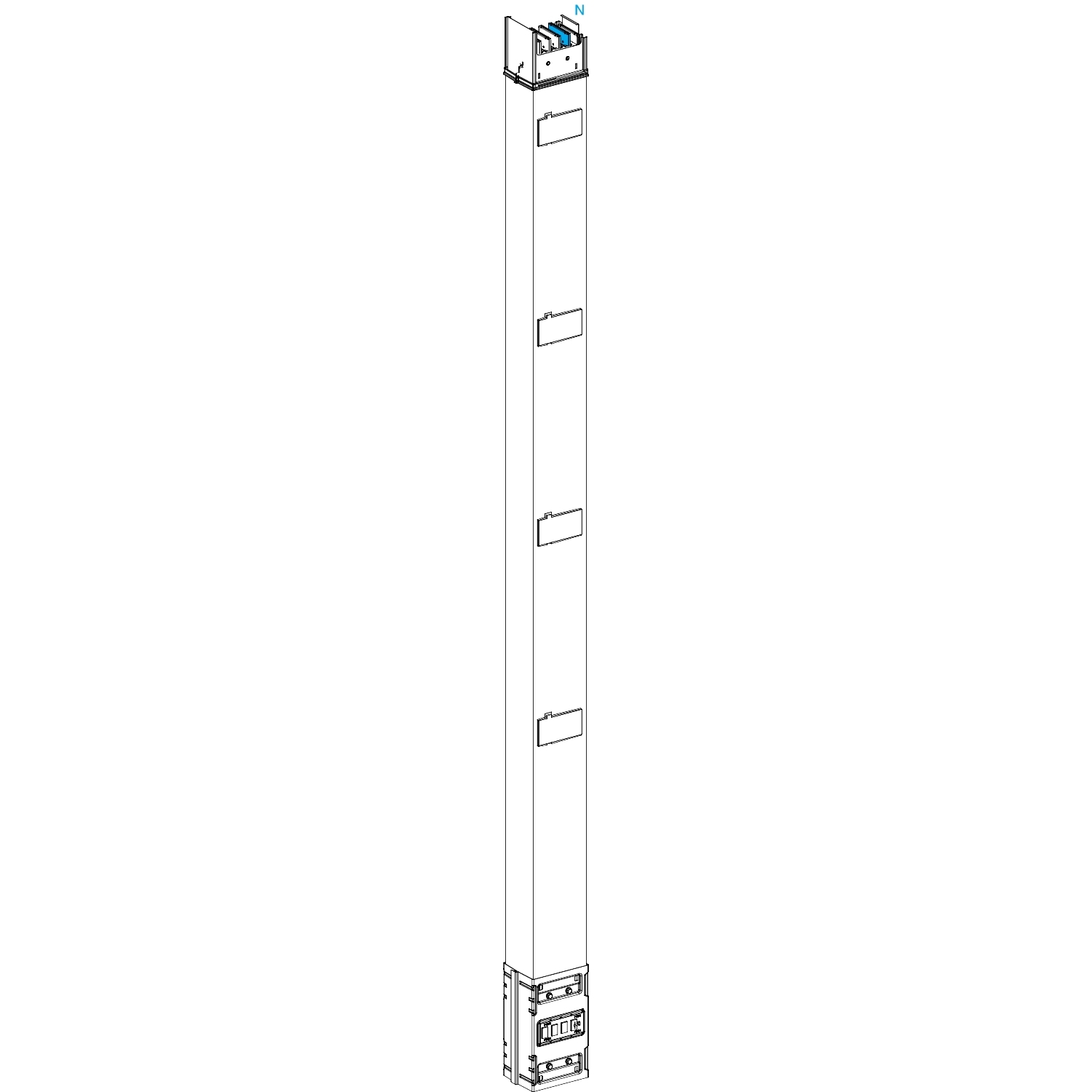

Canalis busbar trunking for KSA. It's applied to rise medium power distribution with lubricated sliding contact. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 800A at 35 ℃. Mounted by screws with right neutral position. Rising main busbar whose material is aluminium and trunking polarity is 3L + N + PE. Designed with 4 tap-off outlets. It provides 1.12 µT radiated magnetic field. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Length | 2.5-2.5 m |
| Device short name | KSA |
| Colour | white (RAL 9001) |
| Number of tap-off outlets | 4 |
| Busbar description | vertical distribution length |
| Mounting mode | by screws |
| [Ie] rated operational current | 800 A at 35 °C |
| Dimension type | fix |
| Busbar trunking polarity | 3L + N + PE |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Range | Canalis |
| Material | aluminium |
| Product or component type | busbar trunking |
| Product compatibility | Canalis KSA busbar trunking 500-1000 A |
| Offer type | rising main |
| Complementary | |
| [Ipk] rated peak withstand current | 78.7 kA |
| Number of poles | 4 |
| [Ue] rated operational voltage | 230...690 V |
| Width | 113 mm |
| Mounting position | vertical |
| Neutral position | right |
| Electrical connection | lubricated sliding contact |
| Thermal stress limit | 1758000 kA².s |
| Maximum voltage drop | <0.009 V with power factor = 0.7 at 50 Hz with 1A for 100 m long, <0.009 V with power factor = 0.8 at 50 Hz with 1A for 100 m long, <0.009 V with power factor = 0.9 at 50 Hz with 1A for 100 m long, <0.008 V with power factor = 1 at 50 Hz with 1A for 100 m long |
| Net weight | 35.5 kg |
| Radiated magnetic field | 1.12 µT |
| Tap-off unit interval | 500 mm |
| [Ui] rated insulation voltage | 690 V |
| Linear resistance | Xb 0.23 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - PE 50/60 Hz, Xb 0.18 mΩ/m 35 °C at Inc and 50 Hz with impedance method L-N 50/60 Hz, Xb 0.13 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - L 50/60 Hz, Rb1 0.39 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 0.32 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 0.25 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 0.28 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 0.23 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 0.18 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 0.56 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 0.43 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 0.35 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 0.45 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, X0 0.31 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 0.32 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, Z1 0.11 mΩ/m 35 °C at Inc L 50/60 Hz, R1 0.09 mΩ/m 35 °C at Inc L 50/60 Hz, R20 0.06 mΩ/m 20 °C L 50/60 Hz |
| Standards | IEC 61439-6, IEC 61439-1 |
| THDI | 33-100 % 500 A, 15-33 % 630 A, 0-15 % 800 A |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Height | 146-146 mm |
| Network frequency | 50/60 Hz |
| [Icw] rated short-time withstand current | 37.4 kA |
| Environment | |
| Ambient air temperature for operation | 55-55 °C (with derating factor), 35-35 °C (without derating) |
| IK degree of protection | IK08 conforming to IEC 62262 |
