Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | modular device |
| Colour | white (RAL 9001) |
| Provided equipment | blanking plate |
| Tap-off unit polarity | 3L+N+PE |
| [Ie] rated operational current | 32 A at 35 °C |
| Range | Canalis |
| Product name | KS |

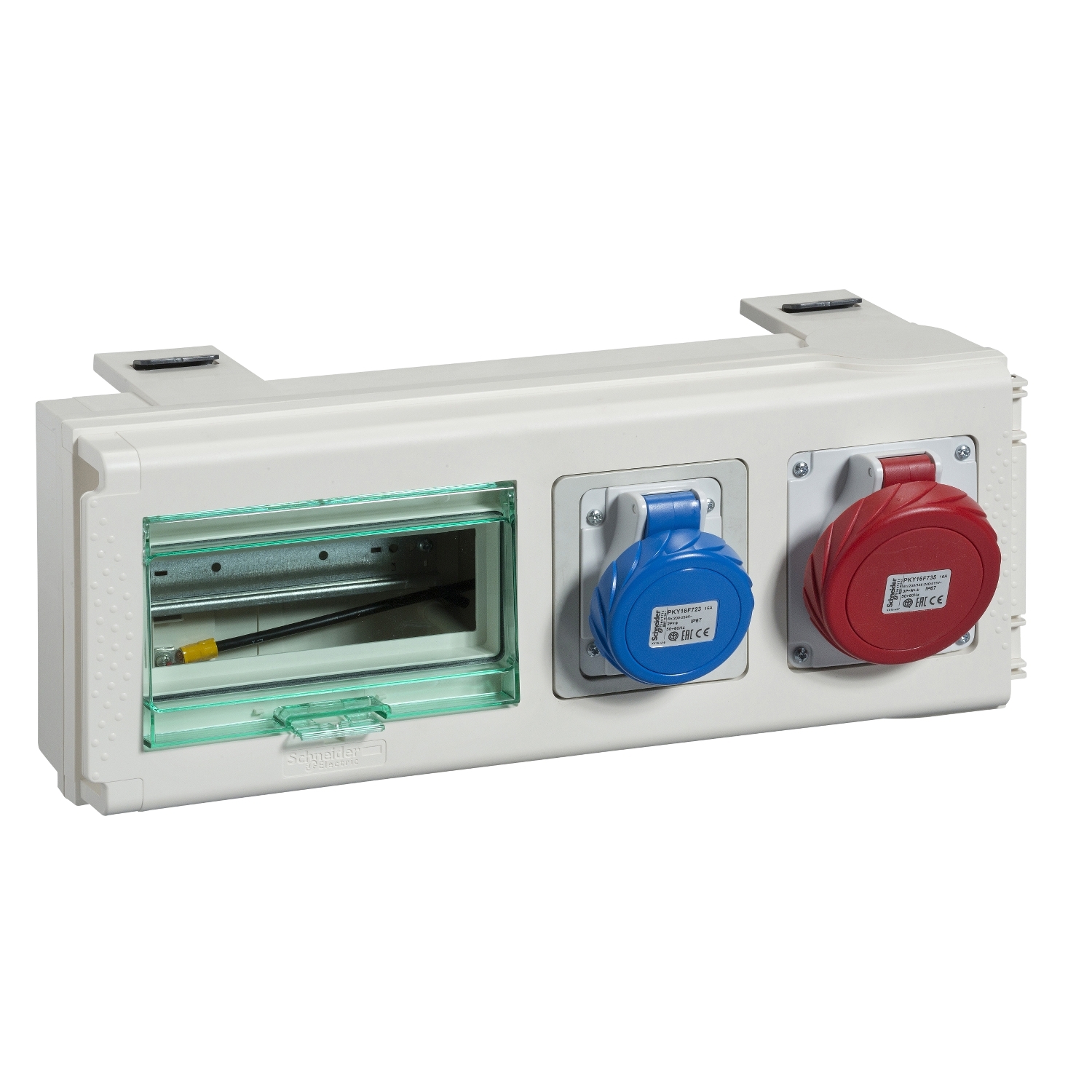

| Product or component type | tap-off unit |
| Tap-off unit socket description | Industrial 16A 2P+T 230V |
| Range of product | Canalis |
| Tap-off unit 2nd socket description | Industrial 16A 3P+N+T 415V |
| Complementary | |
| Device application | low power distribution, power socket distribution |
| [Ui] rated insulation voltage | 690 V depending on protective device, 500 V depending on protective device, 400 V depending on protective device |
| Depth | 108 mm |
| Width | 437.5 mm |
| Protection type | without protection |
| [Ue] rated operational voltage | 230...690 V depending on protective device |
| Body material | plastic |
| Tap-off unit disconnection mode | By drawing out |
| Net weight | 3.1 kg |
| 18 mm pitches | 8 |
| Tap-off unit connector type | with phase selection |
| [Uimp] rated impulse withstand voltage | 6.8 kV |
| Standards | IEC 61439-6, IEC 60439-2 |
| Height | 165 mm |
| Network frequency | 50/60 Hz |
| Environment | |
| Earthing system | TN-S - tap-off unit, TT - tap-off unit, TN-C - busbar trunking, TN-S - busbar trunking, TT - busbar trunking |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
