Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour | white (RAL 9001) |
| Tap-off unit polarity | 3L+N+PE |
| Range | Canalis |

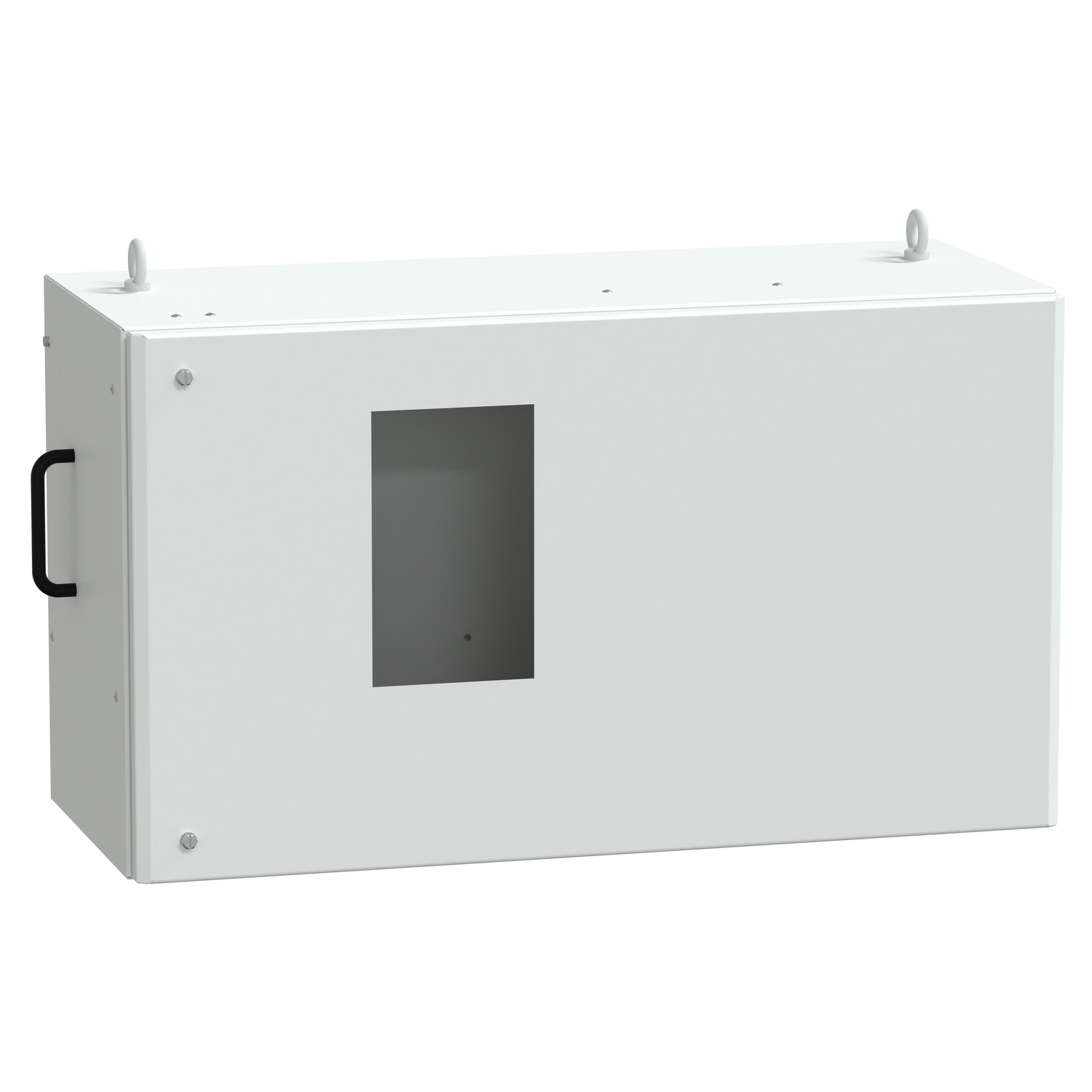

| Product or component type | tap-off unit |
| [Ie] rated operational current | 400-400 A at 35 °C |
| Range compatibility | Canalis KS busbar trunking |
| Offer type | advanced |
| Protection type | circuit breaker: Compact NSX400 |
| Provided equipment | circuit-breaker to be ordered separately |
| Range of product | Canalis |
| Mounting mode | plate with fixed polarity |
| Complementary | |
| Device application | medium power distribution |
| [Ui] rated insulation voltage | 500 V depending on protective device, 400 V depending on protective device |
| Depth | 352 mm |
| Width | 700 mm |
| [Ue] rated operational voltage | 500 V depending on protective device, 400 V depending on protective device |
| Body material | metal |
| Door opening side | right |
| Function available | circuit breaker |
| Control type | motor mechanism |
| Electrical connection | crimp lug - ISO40 70-70 mm² rigid, crimp lug - ISO40 50-50 mm² flexible |
| Tap-off unit disconnection mode | By opening the door |
| Net weight | 16 kg |
| Standards | IEC 61439-1, IEC 61439-6 |
| [Uimp] rated impulse withstand voltage | 6.8 kV |
| Door opening size | 973.5 mm |
| Network frequency | 50/60 Hz |
| Environment | |
| Earthing system | IT, TN-S, TT |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
