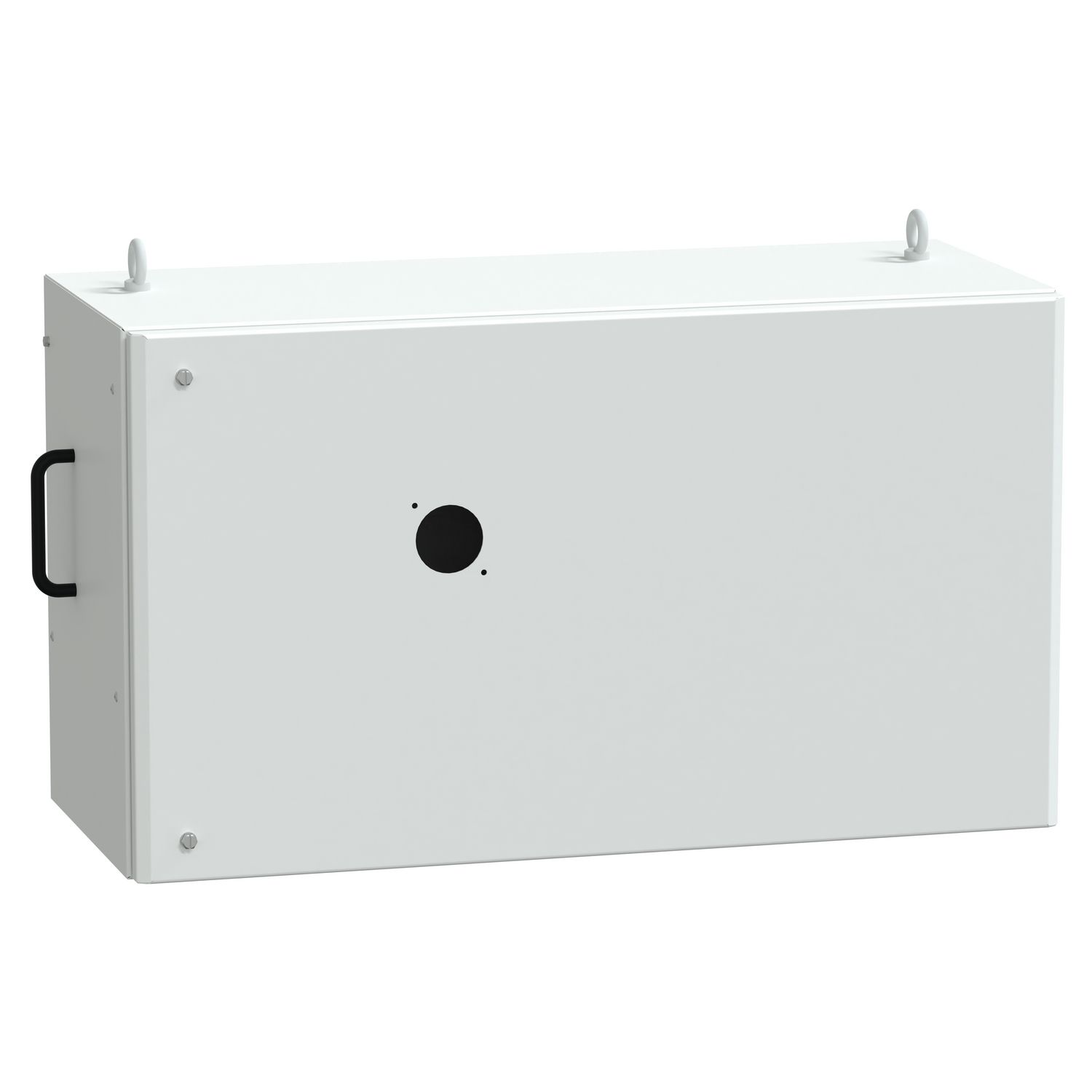

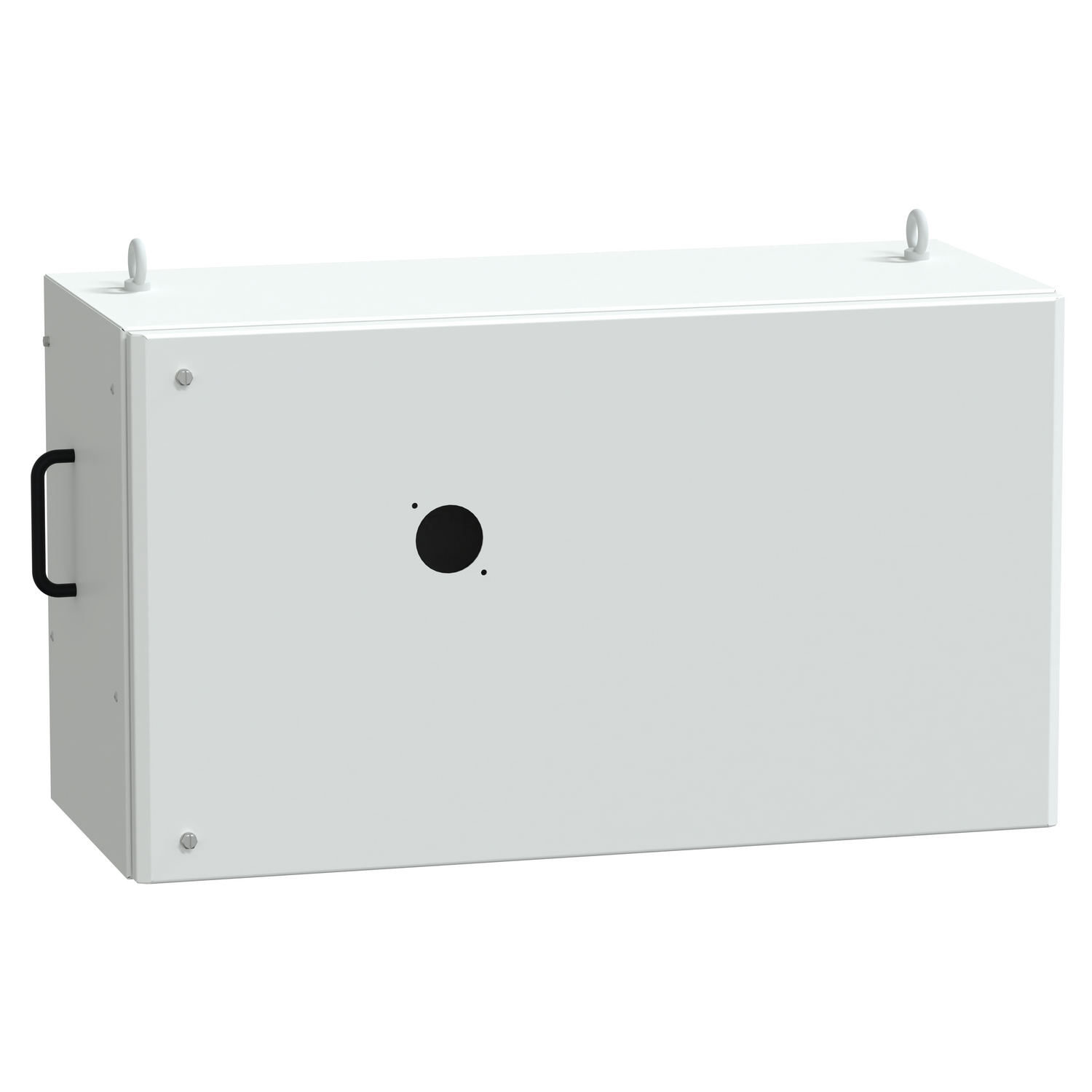

Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TN-C earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 400A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + N + PE. It provided protection for NSX circuit breaker with rotary handle control (circuit breaker to be ordered separately). It provided 2 right openings for FL21 gland plate to tap-off unit disconnection by opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to EN/IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour | white (RAL 9001) |
| Tap-off unit polarity | 3L+PEN |
| Range | Canalis |
| Product or component type | tap-off unit |
| [Ie] rated operational current | 400-400 A at 35 °C |
| Range compatibility | Canalis KT busbar trunking, Canalis KS busbar trunking |
| Offer type | classic |
| Protection type | circuit breaker: Compact NSX400 |
| Provided equipment | circuit-breaker to be ordered separately |
| Range of product | Canalis |
| Mounting mode | plate with fixed polarity |
| Complementary | |
| Device application | medium power distribution |
| [Ui] rated insulation voltage | 500 V depending on protective device, 400 V depending on protective device |
| Depth | 350 mm |
| Width | 700 mm |
| [Ue] rated operational voltage | 500 V depending on protective device, 400 V depending on protective device |
| Body material | metal |
| Door opening side | right |
| Function available | circuit breaker |
| Control type | extended rotary handle |
| Electrical connection | crimp lug - ISO50 240-240 mm² rigid, crimp lug - ISO50 240-240 mm² flexible |
| Tap-off unit disconnection mode | By opening the door |
| Net weight | 20 kg |
| Number of openings | 2 openings for FL21 gland plate |
| Standards | IEC 61439-1, IEC 61439-6 |
| [Uimp] rated impulse withstand voltage | 6.8 kV |
| Door opening size | 976.5 mm |
| Height | 400 mm |
| Network frequency | 50/60 Hz |
| Environment | |
| Earthing system | TN-C |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
