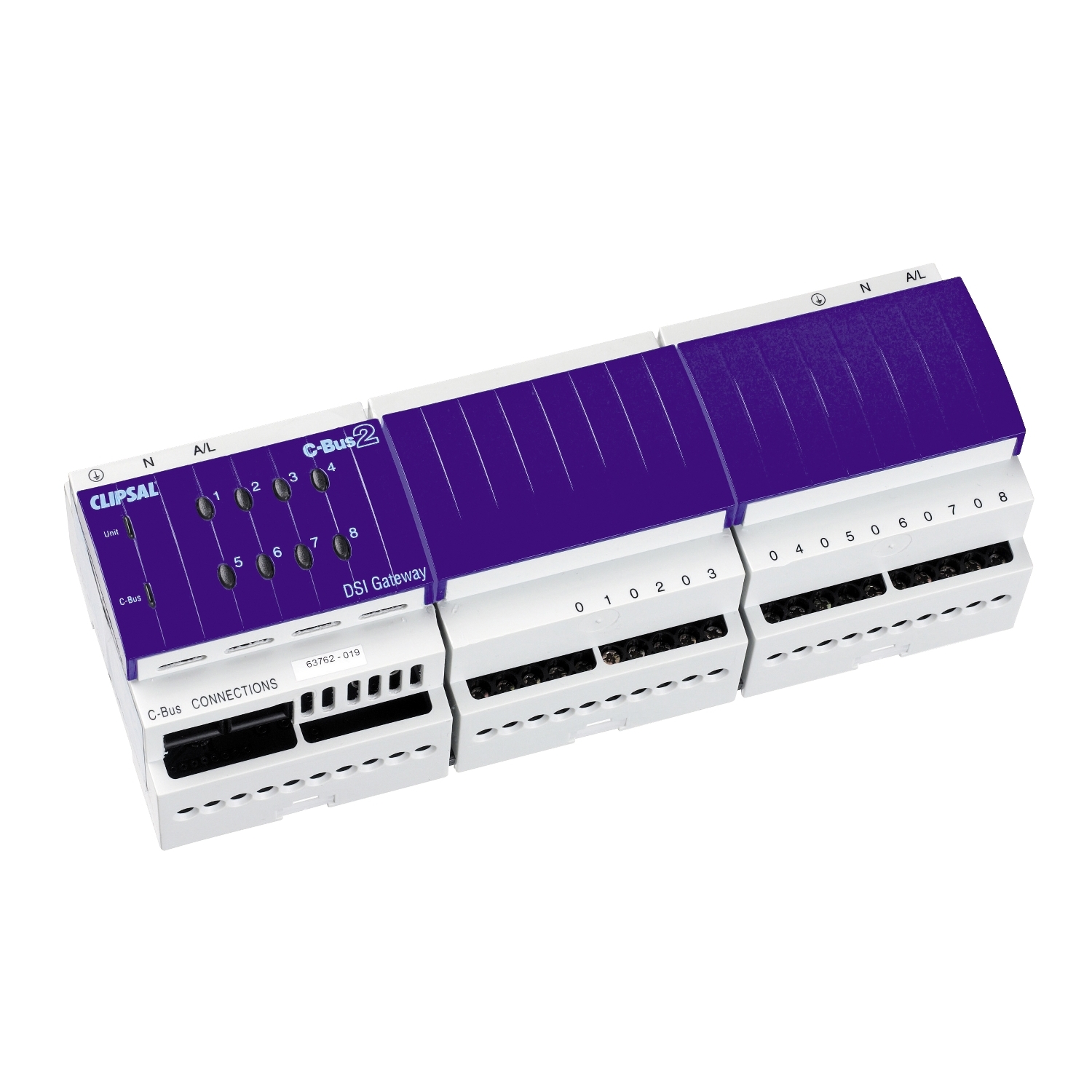

DIN Rail Mounted, C-Bus, Dsi Gateway, 8 Channel, 12M Modules

Manufacturer: Clipsal

SKU: L5508DSI

GTIN: 9311554528003

User guide

Environmental Disclosure

Circularity Profile

Declaration of conformity

Catalog

CAD

Brochure

Old price: $2,004.20 inc GST

Price: $2,886.05 inc GST

Qty:

Supported cards

Products specifications

Attribute name	Attribute value
Main
Device application	control
Load current	270 mA total, 200 mA per channel
Device presentation	basic element
Range	C-Bus
Provided equipment	300 mm patch cable
Product or component type	dimmer
Load type	DSI ballast
Product brand	Clipsal
Complementary
Depth	65 mm
Width	215 mm
Local signalling	LED
Control type	local control push-button per channel
Value of setting	0...100 %
Number of channels	8
Communication interface	digital serial interface
Software function	select time delay range, select network burden, select network clock
Connector type	RJ45 for remote override, RJ45 for C-Bus
Isolation voltage	3.75 kV from C-Bus to mains
Input impedance	50 kOhm at 1-1 kHz
Maximum number of supported devices	10 per network
Mounting support	DIN rail
Number of outputs	100 per channel
Clamping connection capacity	2 x 1.5 mm², 1 x 2.5 mm²
Number of modules	12
Height	85 mm
Output voltage	11...13 V high, 0...0.8 V high, 0...0.8 V low, low
Network frequency	57...63 Hz, 47...53 Hz
Communication network type	C-Bus
Environment
Relative humidity	10-95 %
Ambient air temperature for operation	0-45 °C
