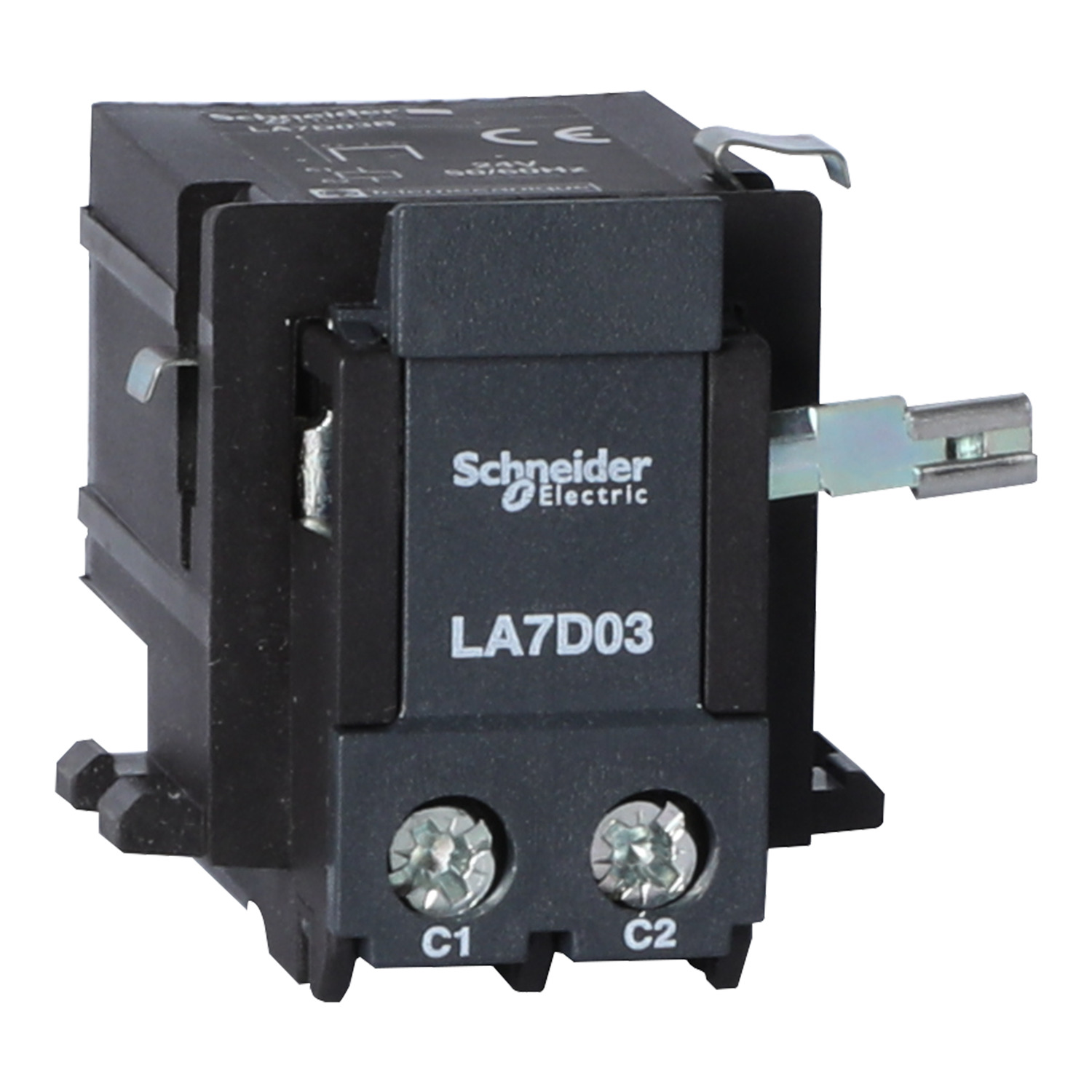

TeSys LRD remote control device for thermal overload relays LRD15../LR2D/LR3D15../LR3D35../LR3D33../LRD33../LRD43../LR3D43.. It provides a 24V AC/DC control circuit to perform a remote tripping and electrical reset. Sustainability compliant.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA7D |
| Product compatibility | LR3D43.., LRD43.., LRD33.., LR3D33.., LR3D35.., LR3D15.., LR2D, LRD15.. |
| Range | TeSys |
| Product or component type | electrical remote tripping |
| Accessory / separate part category | electrical accessory |
| [Uc] control circuit voltage | 24 V DC, 24 V AC 50/60 Hz |
| Complementary | |
| Compatibility code | LA7D |
| Inrush power in W | 0-100 W |
| Net weight | 0.09 kg |
| Maximum inrush power in VA | 100 VA |
