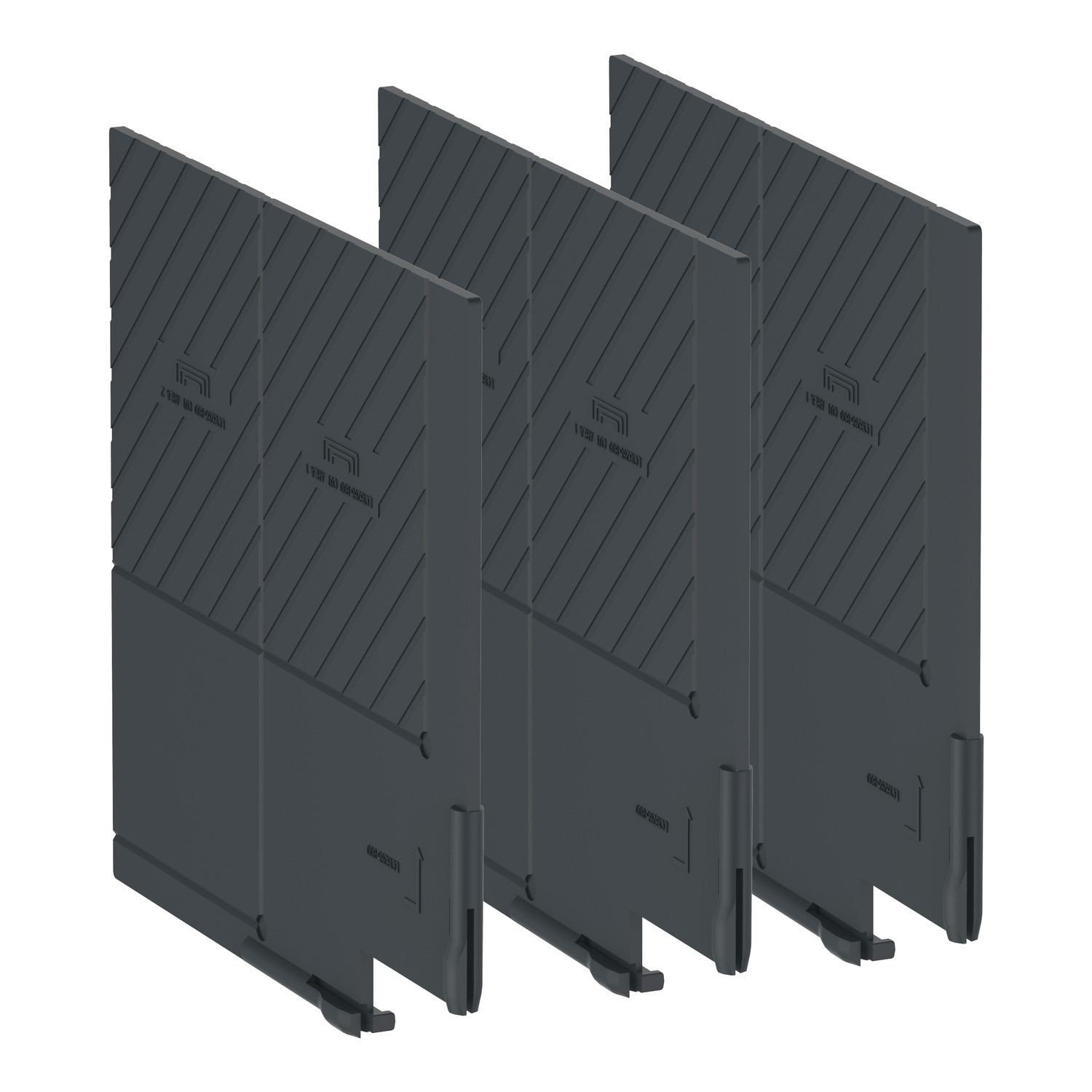

These accessories are phase separator for TeSys Giga 115-500 contactor. It is used to 4 Poles electrical circuit. These phase barriers are accessories used to reinforce insulation at the power connection points. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9G |
| Quantity per set | set of 3 |
| Poles description | 4P |
| Range | TeSys |
| Product or component type | phase barrier |
| Accessory / separate part category | installation accessories |
| Range of product | TeSys G |
| Complementary | |
| Product compatibility | LC1G265...800, LC1G115...225 |
| Depth | 81.2 mm |
| Width | 117.6 mm |
| Net weight | 0.06 kg |
| [Ui] rated insulation voltage | 1000 V |
| Height | 2 mm |
| Environment | |
| Operating altitude | 5000 m with derating factor, 3000 m without derating |
| Ambient air temperature for storage | -60-80 °C |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Product certifications | RMRoS, RINA, RCM, LROS (Lloyds register of shipping), KC, EAC, DNV-GL, CE, cUL, CCS, CCC, CB, BV, ABS |
| Standards | GB/T 14048, CSA C22.2 No 60947-1, UL 60947-1, EN/IEC 60947-1 |
| Ambient air temperature for operation | -40-60 °C |
