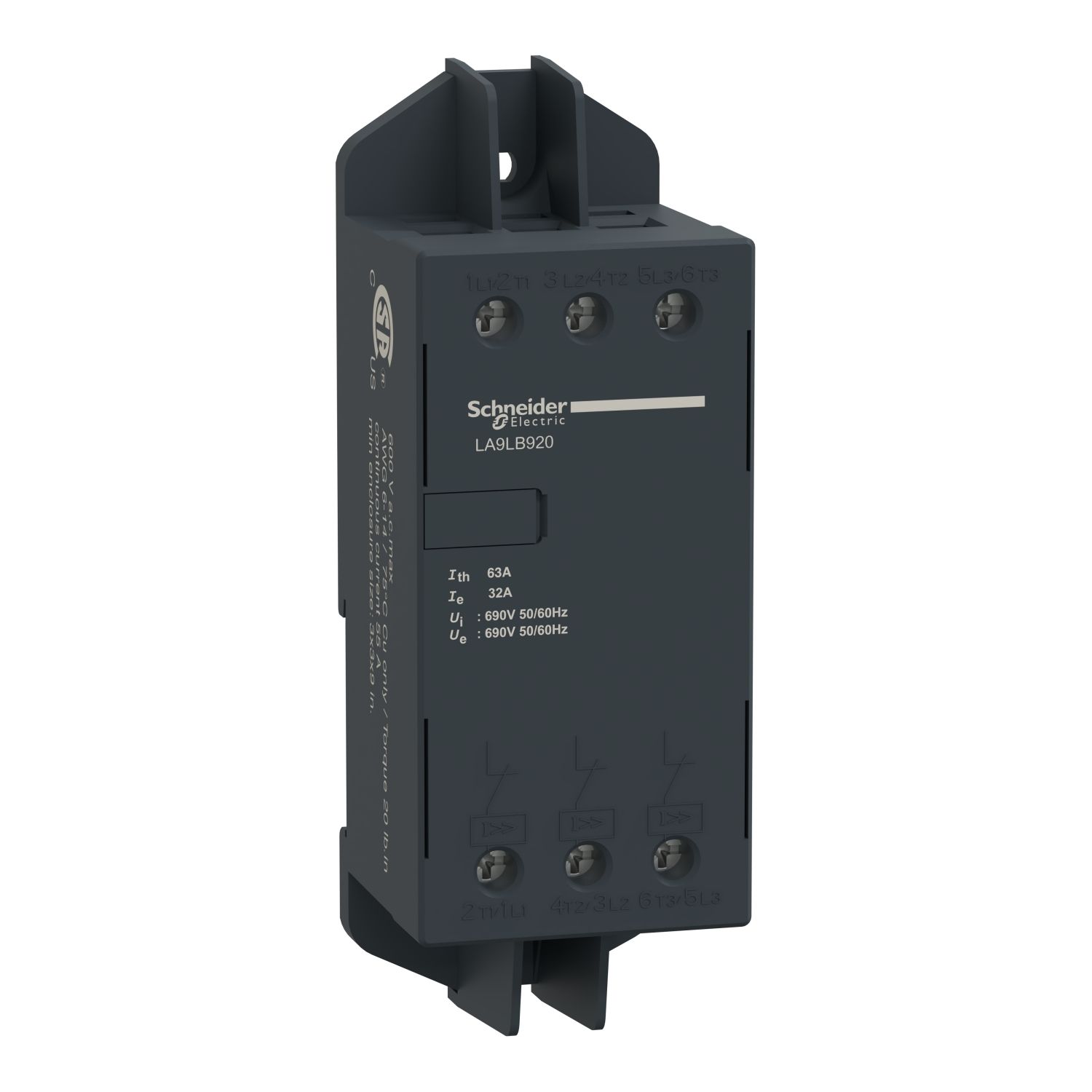

TeSys Integral short circuit current limiter block for contactor breakers Integral 63, motor circuit breakers TeSys GV2, starter controllers TeSys U. It increases the ability of the circuit breaker to withstand a short circuit current from 50 kA to 100/130kA@400 V. To be connected upstream of one or multiple circuit breakers with a total motor nominal current of 32A. For clipping on a 35mm DIN rail or screw fixing, independant mounting from the protection device. It conforms to RoHS/REACh regulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | GV2ME, GV2RT, GV2L, GV2P, LU2B, LUB |
| Function of module | increasing the breaking capacity of a circuit breaker |
| Activation threshold | 1000 A |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-1 |
| [Ie] rated operational current | 32 A |
| Breaking capacity | <= 100 kA depending on protective device |
| Mounting location | 35 mm DIN rail |
| Range | TeSys |
| Product or component type | current limiting module |
| [Ith] conventional free air thermal current | 63 A conforming to IEC 60947-1 |
| Accessory / separate part category | protection accessory |
| Range compatibility | TeSys TeSys GV2, TeSys TeSys U |
| Range of product | TeSys GV2, TeSys U |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Complementary | |
| Tightening torque | 2.2 N.m |
| Connections - terminals | screw clamp terminals 2 x 1.5-4 mm² flexible with cable end, screw clamp terminals 1 x 1.5-16 mm² flexible with cable end, screw clamp terminals 2 x 1.5-10 mm² flexible without cable end, screw clamp terminals 1 x 1.5-25 mm² flexible without cable end, screw clamp terminals 2 x 1.5-10 mm² rigid, screw clamp terminals 1 x 1.5-25 mm² rigid |
| Net weight | 0.32 kg |
