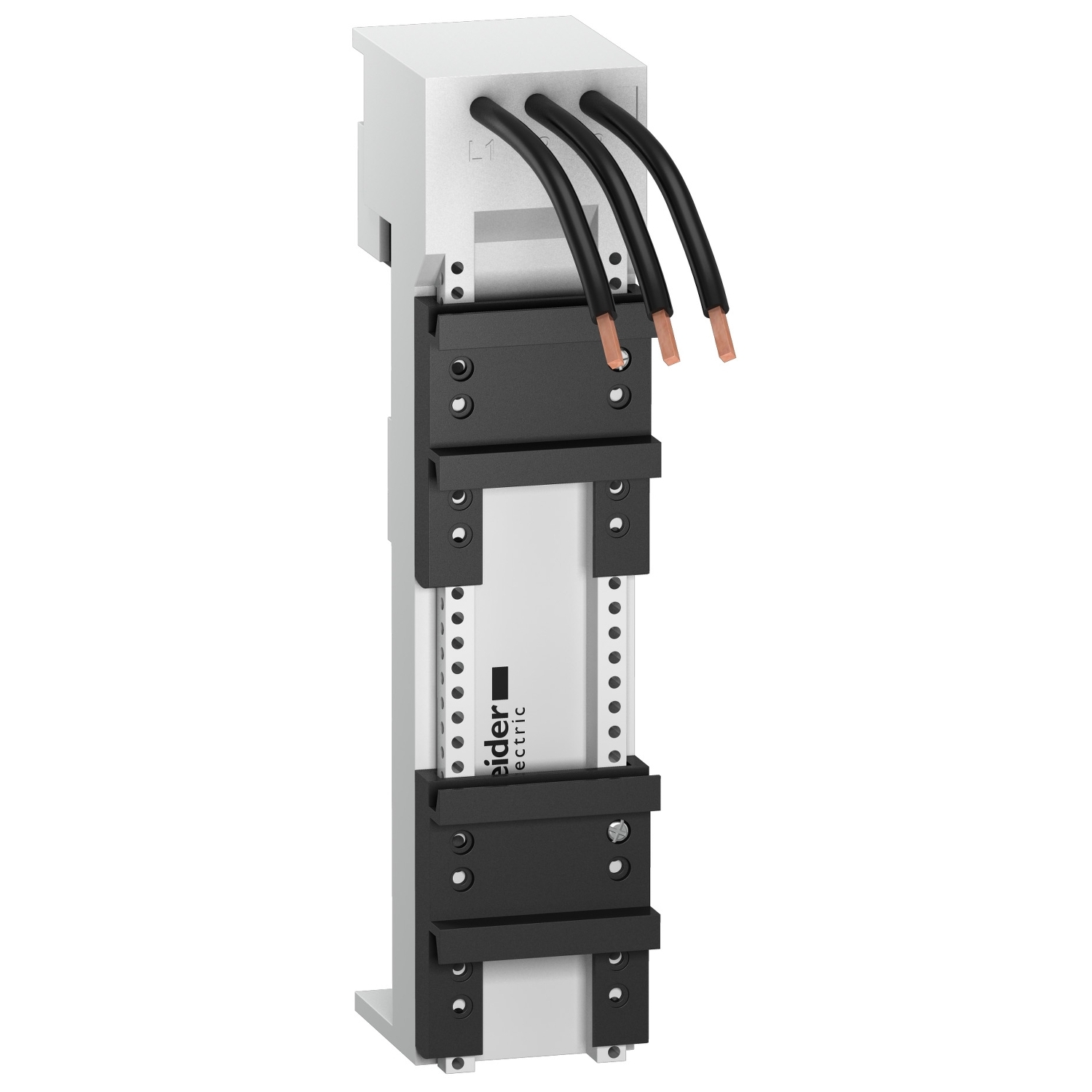

Linergy busbar systems adaptors for TeSys U LUB12 and TeSys U LUB32. It applied to 6 mm² cable cross section and 1x3 Poles. The rated insulation voltage is 690V. The permissible current is 32A. It has grey surface treatment. It is compatible with LC1D, GV2LE, GV2ME,GV2P for Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, TeSys-GV2, TeSys-D. Sold in lots of 4 units. IP20 conforming to IEC 60529. It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9Z |
| Quantity per set | set of 4 |
| Number of ways | 1 way |
| Range | Linergy |
| Product name | BZ |
| Product or component type | adaptors for busbar systems |
| Range of product | TeSys |
| Complementary | |
| Product compatibility | GV2ME, LC1D, GV2P, GV2LE |
| Depth | 63 mm |
| Range compatibility | Spacial, TeSys D, TeSys GV2, Prisma Pack, Prisma PH, Prisma P, Prisma G |
| Width | 45 mm |
| Colour | grey |
| Poles description | 3P |
| [Ui] rated insulation voltage | 690 V |
| Permissible current | 32 A |
| Cable cross section | 6-6 mm² - AWG 10 |
| Height | 200 mm |
| Busbar pitch | 60 mm |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
