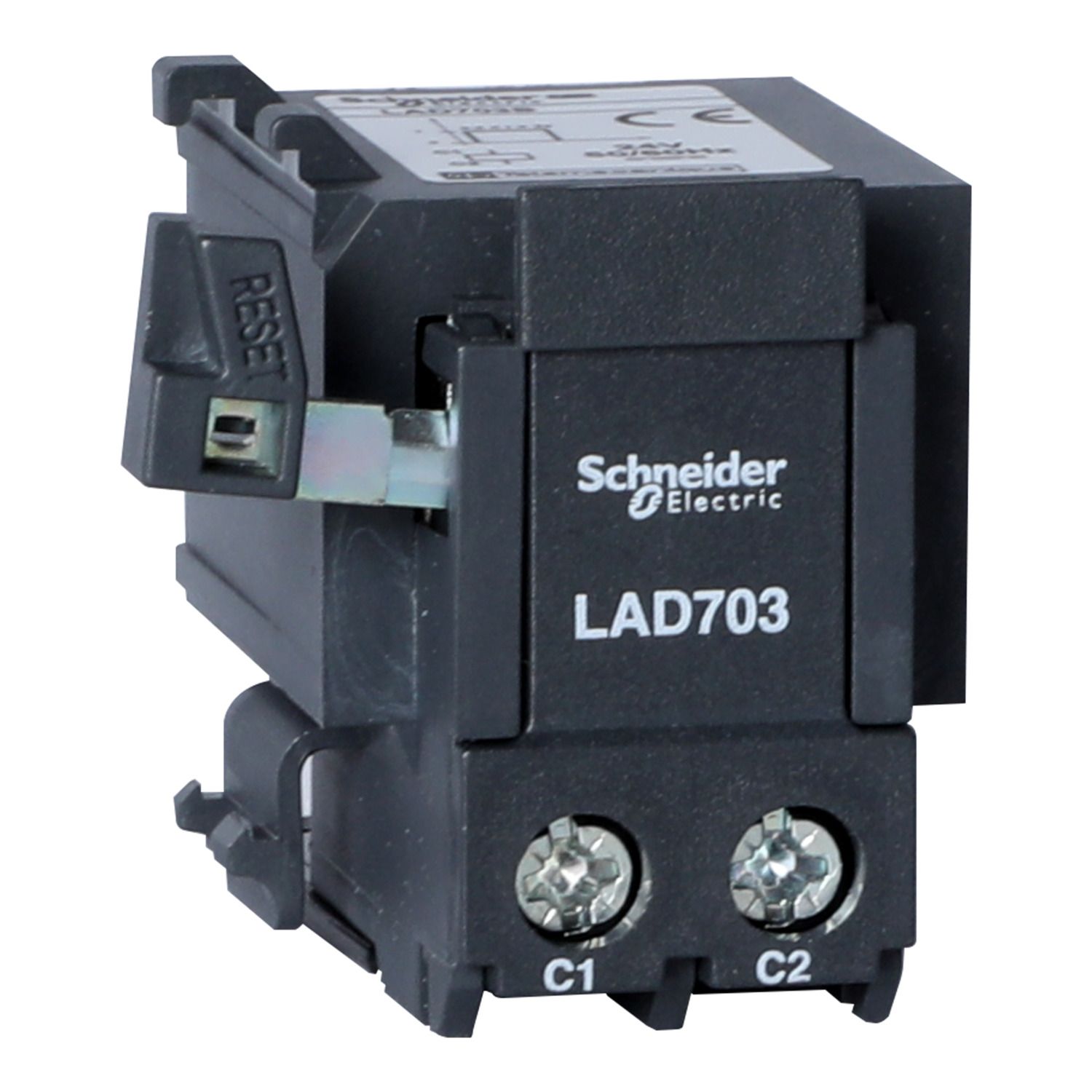

TeSys LRD remote control device for thermal overload relays LRD/LR3D D01-D35, D04L-D32L, D313-D380 and D313L-D365L. It provides a 110V AC/DC control circuit to perform a remote tripping and electrical reset. Left-hand side mounting on the thermal overload relay by clip-on. Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LAD |
| Product compatibility | LR9G, LRD313...LRD365, LRD01...35, LR3D313...LR3D365, LR3D01...D35 |
| Range | TeSys |
| Product or component type | electrical remote stop |
| Accessory / separate part category | electrical accessory |
| [Uc] control circuit voltage | 110 V DC, 110 V AC 50/60 Hz |
| Complementary | |
| Compatibility code | LAD |
| Inrush power in W | 0-100 W |
| Net weight | 0.09 kg |
| Maximum inrush power in VA | 100 VA |
