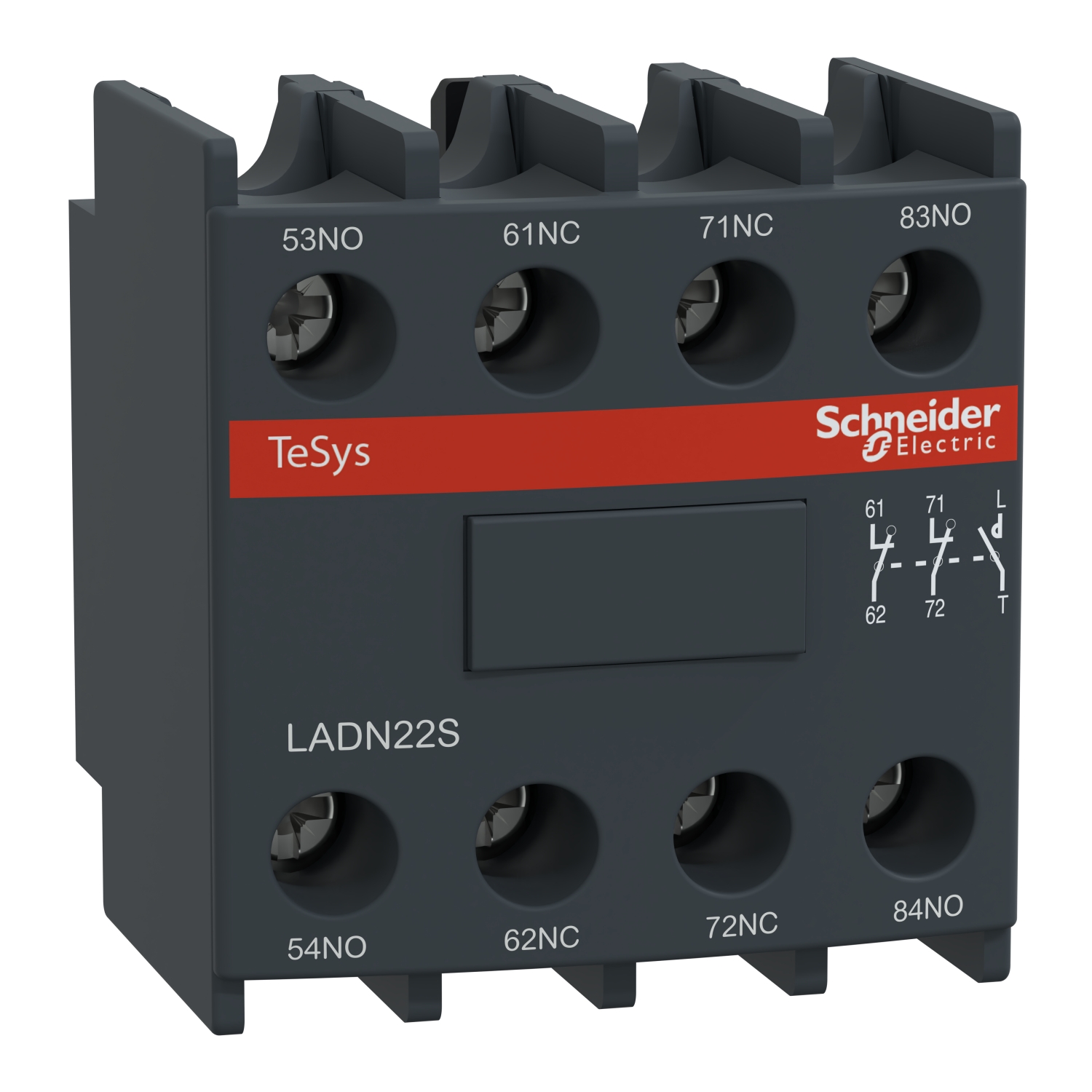

TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals, and is used as safety chain indication thanks to its red front face. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LADN |
| Auxiliary contacts operation | instantaneous |
| Range | TeSys Deca, TeSys |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Range of product | TeSys Deca |
| Specific use | safety chain indication |
| [Ie] rated operational current | 0.1 A at 600 V DC-13, 0.55 A at 125 V DC-13, 1.04 A at 690 V AC-15, 6 A at 120 V AC-15 |
| [Ui] rated insulation voltage | 600 V conforming to CSA, 600 V conforming to UL, 690 V conforming to IEC 60947-5-1 |
| Pole contact composition | 2 NO + 2 NC |
| Mounting location | front |
| Product name | TeSys Deca |
| Product or component type | auxiliary contact block |
| Range compatibility | TeSys Deca LC1D, TeSys Deca CAD, TeSys F CR1F, TeSys F LC1F, TeSys D LC1D, TeSys D CAD |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| Standards | EN/IEC 60947-5-1, EN 50012, GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1 |
| Product certifications | UKCA, EAC, CCC, CSA, UL, CB |
| Complementary | |
| Colour | red (RAL 3000) |
| Mechanical durability | 30 Mcycles |
| Tightening torque | 1.7 N.m - with screwdriver pozidriv No 2, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver flat Ø 6 mm |
| Minimum switching voltage | 17 V |
| Connections - terminals | screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end |
| Irms rated making capacity | 250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1 |
| Protection type | gG fuse 10 A |
| Height | 48 mm |
| Shielding continuity terminal | without |
| Depth | 42 mm |
| Width | 44 mm |
| Net weight | 0.05 kg |
| Insulation resistance | > 10 MOhm |
| Minimum switching current | 5 mA |
| Permissible short-time rating | 140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s |
| Non-overlap time | 1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact |
| Environment | |
| Protective treatment | TH conforming to IEC 60068 |
| Environmental characteristic | normal environment |
| Ambient air temperature for storage | -60-80 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -5-60 °C |
| Operating altitude | 3000 m |
