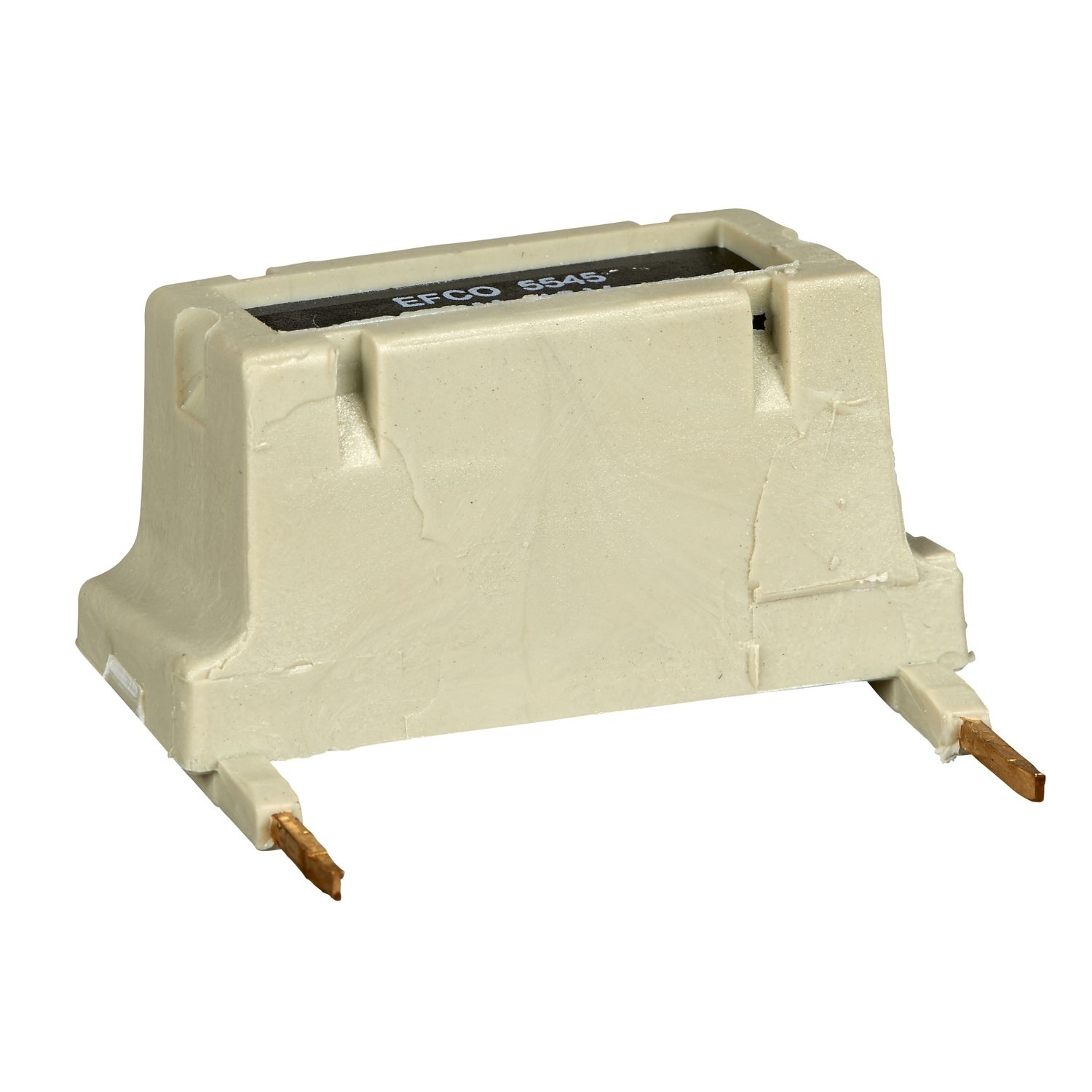

Suppressor module for coil protection of Easy TeSys Control contactors LC1E06 to LC1E95. To be used for 380-415V AC control circuit voltage, it provides RC protection limiting the transient voltage to 3 Uc max. Clip-on mounting on the front of the contactor breaker, connection to the coil screw terminals. It provides IP 20 conforming to IEC 60529 protection degree. Environmental compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LAERC |
| Product compatibility | LC1E06...E95 |
| Range | Easy TeSys |
| Product or component type | suppressor module |
| Range of product | Easy TeSys Control |
| Complementary | |
| Suppressor technology | RC circuit |
| Depth | 33 mm |
| Width | 44 mm |
| Mounting mode | clip-on |
| Maximum peak voltage | 3 Uc <= 400 Hz |
| Mounting location | front |
| Net weight | 0.025 kg |
| [Uc] control circuit voltage | 380...415 V AC 50/60 Hz |
| Environment | |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -60-80 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC 60947-5-1 |
| Product certifications | GOST |
