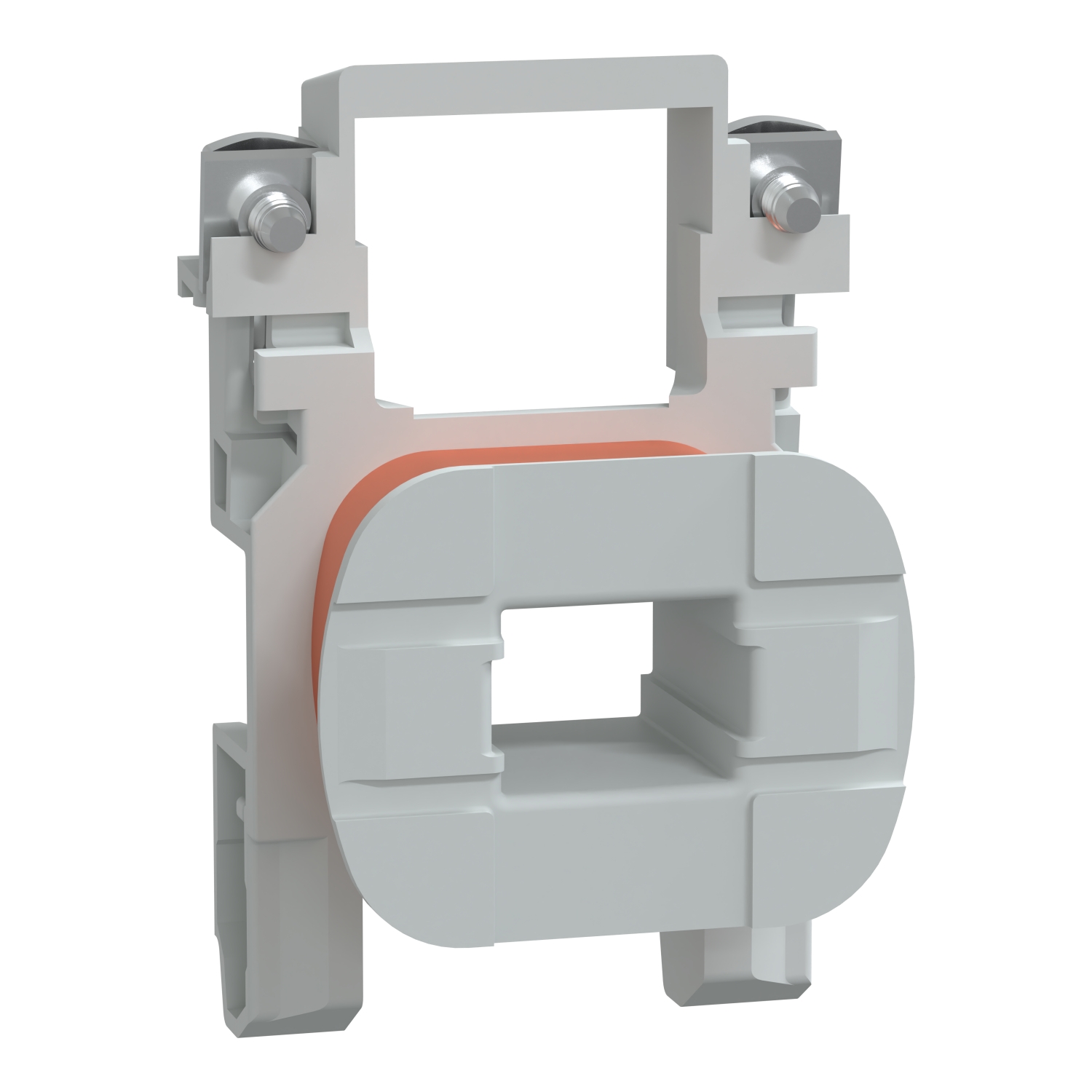

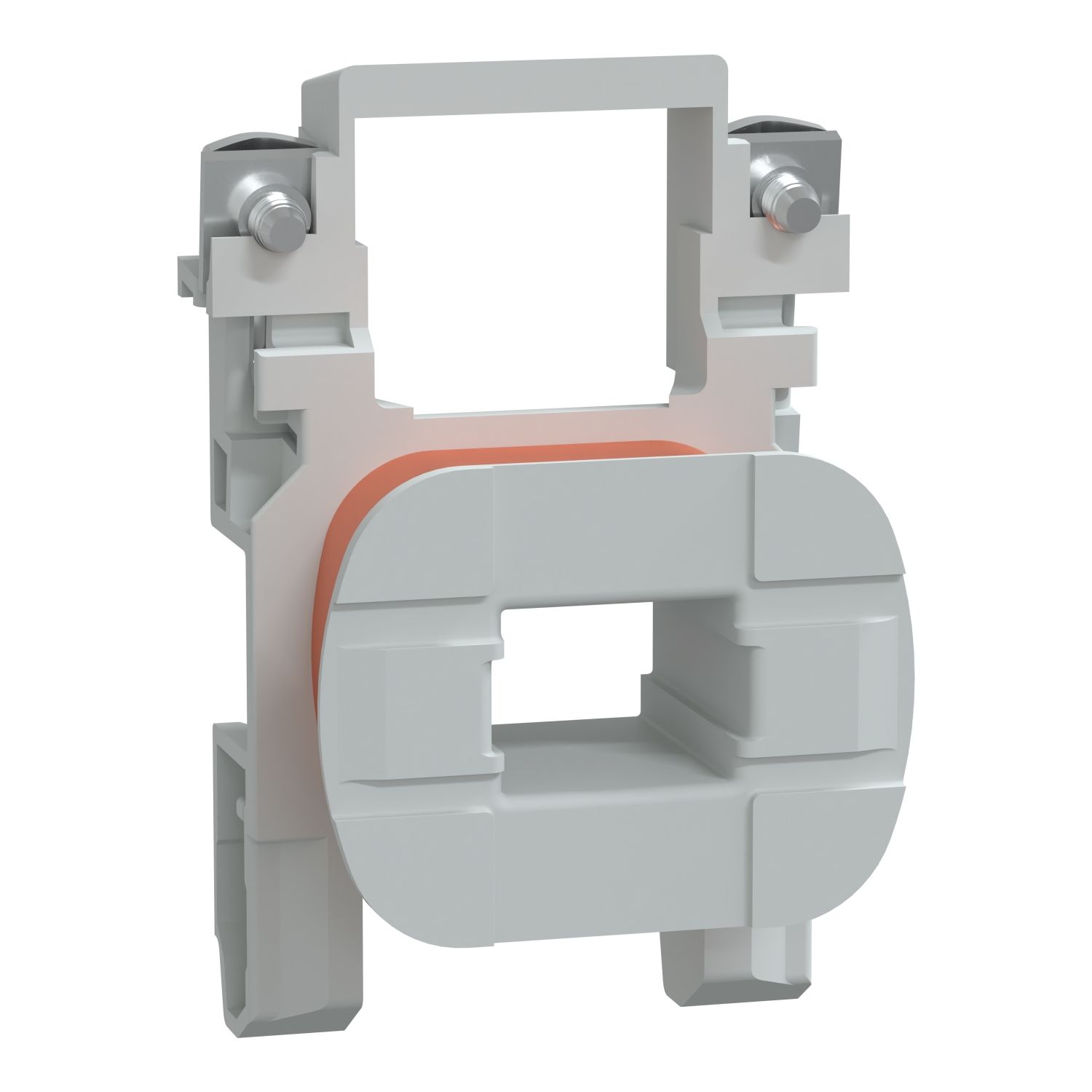

Contactor coil,Easy TeSys Control,110V AC,50Hz,spare part for LC1E06...25

Manufacturer: Schneider Electric

SKU: LAEX12F5

GTIN: 3606480422966

Instruction sheet

Environmental Disclosure

CAD

Circularity Profile

Old price: $25.96 inc GST

Price: $28.62 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

It is a 110V 50Hz AC coil replacement for Easy TeSys Control LC1E06...E25 contactors. Conforming to standard IEC 60947-5-1 It can cover -5°C to 55°C working temperature. Environmental compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LAEX
Product compatibility	LC1E25
Inductance of closed circuit	4.41 H
Range	Easy TeSys
Product or component type	contactor coil
Control circuit type	AC at 50 Hz standard
Range of product	Easy TeSys Control
[Uc] control circuit voltage	110 V AC 50 Hz
Average resistance	124 Ohm at 20 °C
Complementary
Hold-in power consumption in VA	7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Inrush power in VA	70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits	operational: 0.85...1.1 Uc at 50 Hz (at <55 °C)
Environment
Net weight	0.067 kg
Ambient air temperature for operation	-5-55 °C
