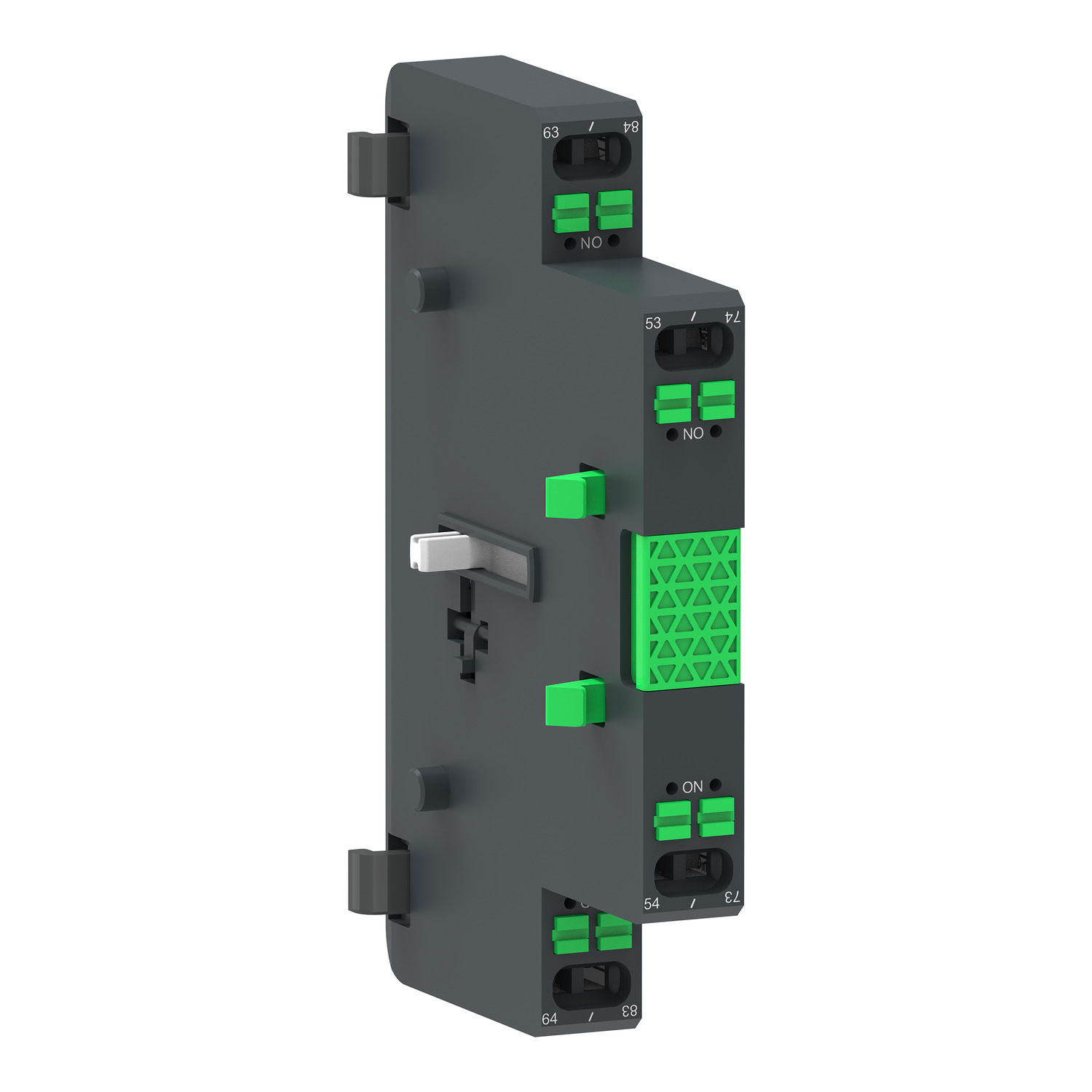

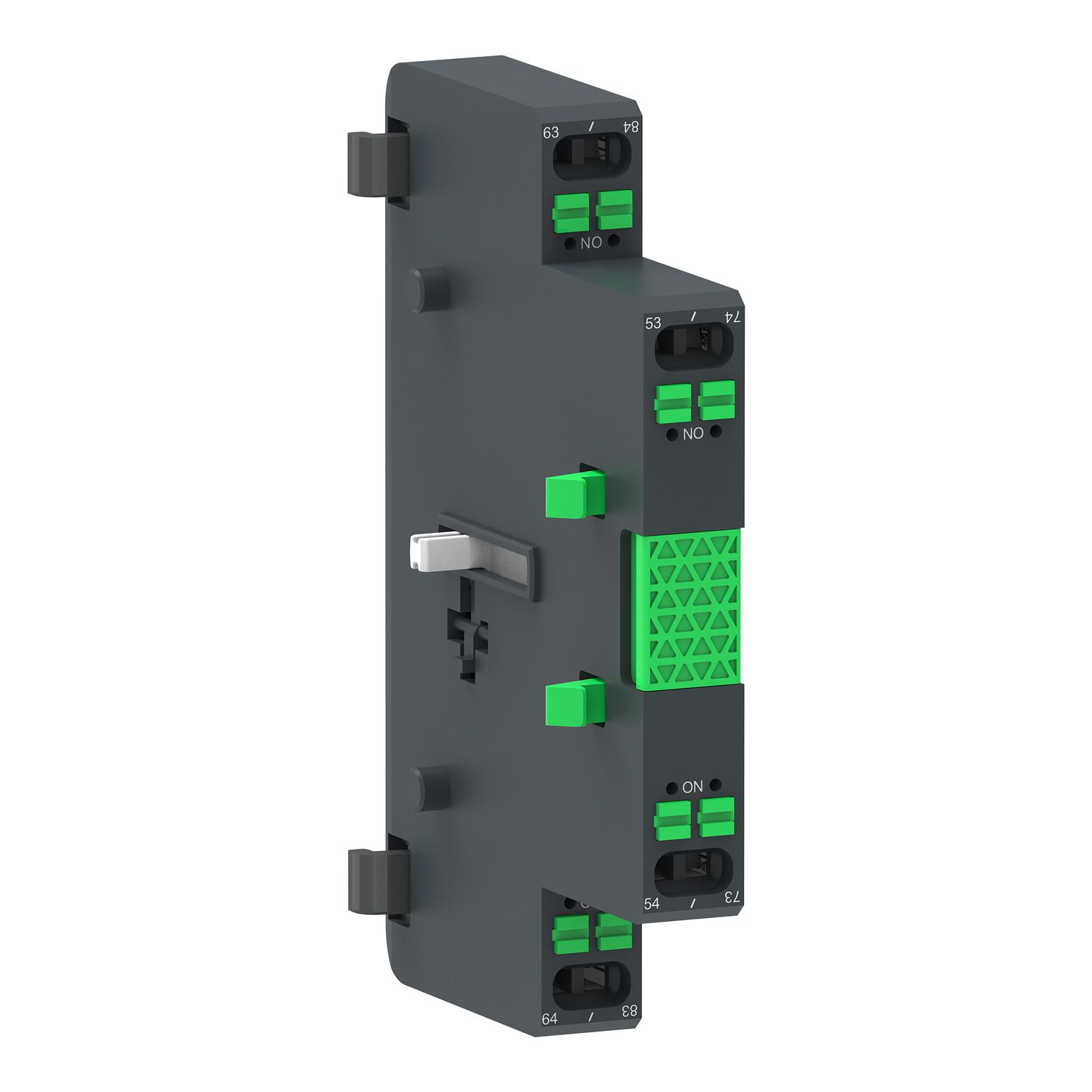

These accessories are auxiliary contact block 2NO for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LAG8N |
| Auxiliary contacts operation | instantaneous |
| Pole contact composition | 2 NO |
| Range | TeSys |
| Connections - terminals | screw clamp terminals0.75-2.5 mm²flexible with cable end, screw clamp terminals0.75-2.5 mm²solid stranded without cable end |
| Product or component type | auxiliary contact block |
| Range compatibility | TeSys G LC1G |
| Range of product | TeSys G |
| Complementary | |
| Depth | 84.8 mm |
| Width | 15.4 mm |
| Mechanical durability | 8 Mcycles |
| Minimum switching voltage | 17 V |
| [Ui] rated insulation voltage | 500 V - certifications UL, 500 V - certifications CSA, 500 V conforming to IEC 60947-5-1 |
| Mounting location | side |
| Net weight | 0.05 kg |
| Irms rated making capacity | 250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1 |
| Insulation resistance | > 10 MOhm |
| Protection type | gG fuse 10 A |
| [Ue] rated operational voltage | 500 V AC 25...400 Hz |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Height | 55.8 mm |
| Minimum switching current | 1 mA |
| Permissible short-time rating | 140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s |
| Non-overlap time | 1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact |
| Environment | |
| Operating altitude | 3000 m |
| Protective treatment | TH |
| Ambient air temperature for storage | -60-80 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | GB 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -25-60 °C |
| Product certifications | EAC, EU-RO-MR by DNV-GL, UKCA, CE, cULus, CCC, CB Scheme |
