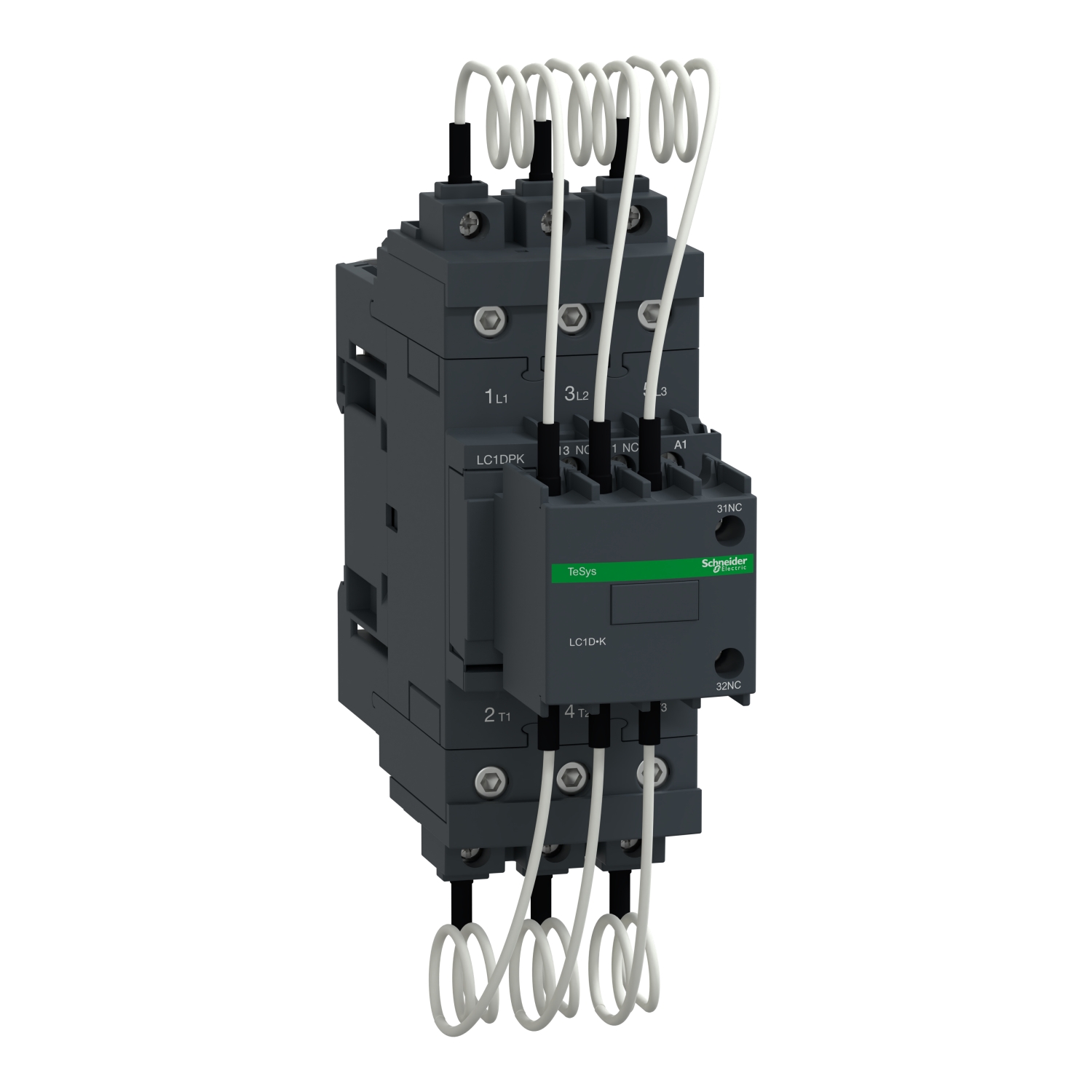

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 30kVAR@400/415V 50Hz (50kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 100 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control |
| Electrical durability | 200000 cycles at Ue 690 V, 300000 cycles at Ue 400 V |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Control circuit type | AC at 50/60 Hz |
| Utilisation category | AC-6b |
| Device location in system | line interruption, inside delta interruption |
| Reactive power rating | 40 kvar at 575-575 V AC 60 Hz 60 °C, 33.3 kvar at 460-460 V AC 60 Hz 60 °C, 16.5 kvar at 230-230 V AC 60 Hz 60 °C, 50 kvar at 690-690 V AC 50 Hz 60 °C, 32 kvar at 440-440 V AC 50 Hz 60 °C, 30 kvar at 400-400 V AC 50 Hz 60 °C, 17 kvar at 230-230 V AC 50 Hz 60 °C |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Product certifications | UKCA, CSA, UL, IECEE CB Scheme |
| Device short name | LC1DPK |
| Tightening torque | power circuit: 8 N.m - on EverLink BTR screw connectors - cable 35-35 mm², power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm², control circuit: 1.7 N.m - on screw clamp terminals |
| Range | TeSys Deca, TeSys |
| Range of product | TeSys Deca |
| Poles description | 3P |
| Maximum operating rate | 240 cyc/h |
| Connections - terminals | power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with or without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with or without cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid |
| Pole contact composition | 3 NO |
| Product name | TeSys Deca, TeSys LC1D.K |
| Product or component type | capacitor duty contactor |
| Contactor application | power factor correction |
| Mounting support | plate, DIN rail |
| Standards | IEC 60335-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1 |
| [Ue] rated operational voltage | power circuit: 690 V AC 50/60 Hz |
| Complementary | |
| Compatibility code | LC1D |
| Auxiliary contacts type | type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
| Environment | |
| Ambient air temperature for storage | -60-80 °C |
| Height | 166 mm |
| Operating altitude | 0...3000 m |
| Net weight | 1.3 kg |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Ambient air temperature for operation | -5-60 °C |
| Depth | 156 mm |
| Width | 55 mm |
