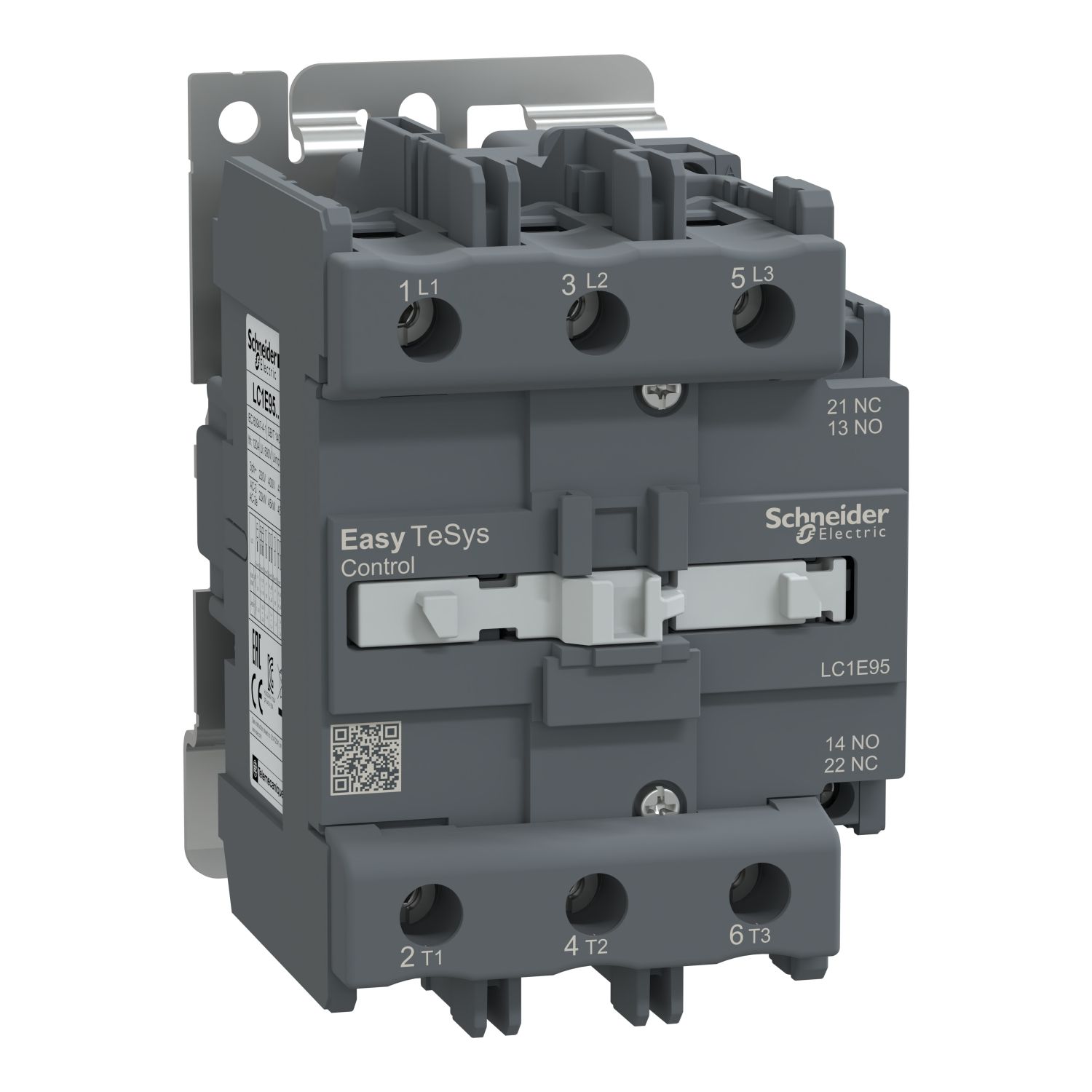

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,95A,240V AC coil,50Hz

Manufacturer: Schneider Electric

SKU: LC1E95U5

GTIN: 3606480339431

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $362.45 inc GST

Price: $399.60 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

Easy TeSys Control contactor 3 poles for motor applications up to 95A 45kW@440V. It provides a 240V 50Hz AC coil, 1NO+1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 85mm width for standard. It provides standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability. Operating rates up to 1200 cycles per hour. It can cover -5°C to 55°C working temperature and mounted by DIN-rail. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).

Products specifications

Attribute name	Attribute value
Main
Device short name	LC1E
Poles description	3P
[Ie] rated operational current	125 A (at <55 °C) at <= 440 V AC AC-1 for power circuit, 95 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category	AC-1, AC-3
Range	Easy TeSys
Product or component type	contactor
Contactor application	motor control, resistive load
Range of product	Easy TeSys Control
[Ue] rated operational voltage	power circuit: <= 690 V AC 50/60 Hz
[Uc] control circuit voltage	240 V AC 50 Hz
Complementary
Heat dissipation	6-10 W for control circuit
[Icw] rated short-time withstand current	400 A 40 °C - 60 s for power circuit, 800 A 40 °C - 10 s for power circuit, 135 A 40 °C - 600 s for power circuit
[Ui] rated insulation voltage	690 V conforming to IEC 60947-4-1
Motor power kW	55 kW at 660...690 V, 45 kW at 380...400 V, 25 kW at 220...230 V AC 50/60 Hz, 45 kW at 500 V, 45 kW at 440 V, 45 kW at 415 V
Overvoltage category	III
Hold-in power consumption in VA	20-20 VA 50 Hz cos phi 0.3 (at 20 °C), 22-22 VA 60 Hz cos phi 0.3 (at 20 °C)
Mechanical durability	3000000 cycles
Electrical durability	350000 cycles AC-1, 900000 cycles AC-3
Tightening torque	power circuit: 12 N.m, control circuit: 1.2 N.m
Maximum operating rate	1200 cyc/h 60 °C
Minimum switching voltage	17 V for control circuit
Operating time	6...30 ms on opening, 20...35 ms on closing
Connections - terminals	power circuit: screw clamp terminals 2 4-50 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 4-50 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 4-50 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition	3 NO
[Uimp] rated impulse withstand voltage	6 kV coil not connected to the power circuit conforming to IEC 60947
Inrush power in VA	220-220 VA 60 Hz cos phi 0.75 (at 20 °C), 200-200 VA 50 Hz cos phi 0.75 (at 20 °C)
Associated fuse rating	160 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
Irms rated making capacity	950 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity	760 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance	> 10 MOhm for control circuit
Pollution degree	3
Control circuit type	AC at 50 Hz
Mounting support	plate, DIN rail
Control circuit voltage limits	0.3...0.6 Uc (-5-55 °C):drop-out 50 Hz, 0.85...1.1 Uc (-5-55 °C):operational 50 Hz
[Ith] conventional free air thermal current	120 A (at 55 °C)
Auxiliary contact composition	1 NO + 1 NC
Average impedance	0.8 mOhm - Ith 120 A 50 Hz for power circuit
Power dissipation per pole	12 W AC-1, 7.2 W AC-3
Minimum switching current	5 mA for control circuit
Non-overlap time	1.5 ms on de-energisation guaranteed between NC and NO contact, 1.5 ms on energisation guaranteed between NC and NO contact
Environment
Permissible ambient air temperature around the device	-5-55 °C operation, -60-80 °C storage, -20-70 °C at Uc
Depth	121 mm
Width	85 mm
Fire resistance	850 °C conforming to IEC 60695-2-1
Operating altitude	3000 m without derating
Mechanical robustness	shocks contactor closed (7 Gn for 11 ms) , shocks contactor open (6 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (1.5 Gn, 5...300 Hz)
IP degree of protection	IP2X conforming to IEC 60529
Protective treatment	TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Net weight	1.52 kg
Standards	IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1
Height	127 mm
Product certifications	CE, EAC
