Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Coil type | standard |
| Device short name | LC1V |
| Poles description | 3P |
| Utilisation category | AC-1, AC-4, AC-3 |
| Pole contact composition | 3 NO |
| Range | TeSys |
| Product name | TeSys V |

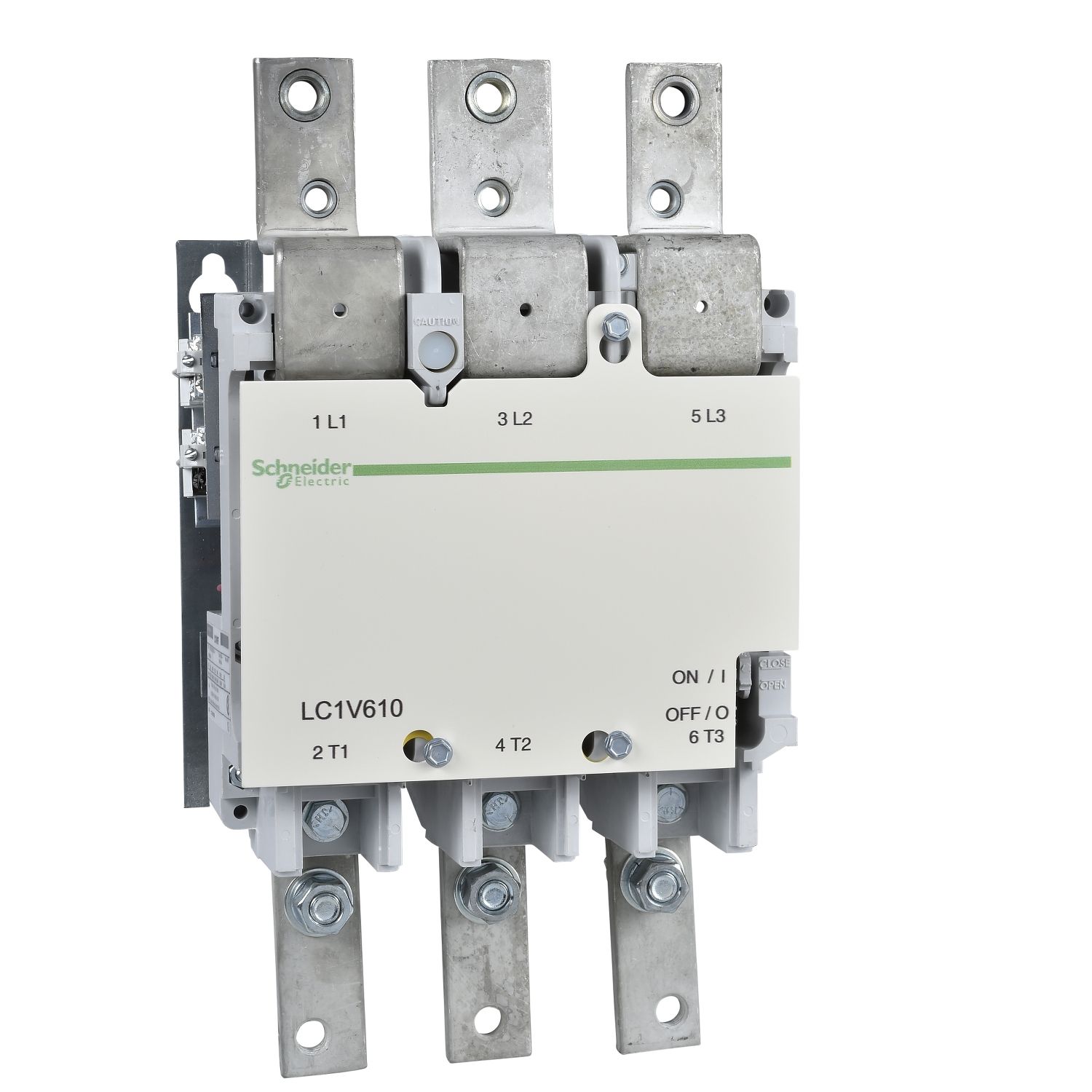

| Product or component type | vacuum contactor |
| Contactor application | motor control, resistive load |
| Range of product | TeSys V |
| Control circuit type | AC |
| Complementary | |
| [Ui] rated insulation voltage | control circuit: 690 V, earth circuit: 2000 V, power circuit: 1500 V |
| Motor power kW | 800 kW at 1000 V AC 50/60 Hz (AC-3), 560 kW at 690 V AC 50/60 Hz (AC-3), 400 kW at 525 V AC 50/60 Hz (AC-3), 300 kW at 400 V AC 50/60 Hz (AC-3), 160 kW at 230 V AC 50/60 Hz (AC-3) |
| Depth | 178 mm |
| Width | 201 mm |
| Operating time | 95...115 ms on opening, 24...32 ms on closing |
| Hold-in power consumption in VA | 28-28 VA |
| Compatibility code | LC1V |
| Mechanical durability | 2000000 cycles |
| Tightening torque | power circuit: 39 N.m - on connector - cable 185-185 mm² hexagonal screw head |
| Maximum operating rate | 1200 cyc/h |
| [Ie] rated operational current | 540 A AC AC-4 for power circuit, 630 A (at <40 °C) AC AC-1 for power circuit, 610 A (at <55 °C) AC AC-3 for power circuit |
| Coil technology | without built-in bidirectional peak limiting diode suppressor |
| Connections - terminals | power circuit: bolted connection, control circuit: connector 1 x 2.5-2.5 mm² |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Inrush power in VA | 1700-1700 VA |
| Net weight | 13 kg |
| Associated fuse rating | 630 A aM at <= 1000 V for power circuit conforming to IEC 60947, 10 A gG for control circuit |
| Irms rated making capacity | 7300 A at 1500 V AC for power circuit conforming to IEC 60947 |
| Rated breaking capacity | 6100 A at 1500 V for power circuit conforming to IEC 60947 |
| Mounting support | rail, plate |
| [Ith] conventional free air thermal current | 630 A for power circuit, 10 A for control circuit |
| Control circuit voltage limits | 0.8...1.1 Uc at 50/60 Hz |
| Auxiliary contact composition | 1 NO + 1 NC |
| Motor power hp | 700 hp at 800 V AC 50/60 Hz conforming to CSA, 500 hp at 600 V AC 50/60 Hz conforming to CSA, 400 hp at 480 V AC 50/60 Hz conforming to CSA, 300 hp at 380 V AC 50/60 Hz conforming to CSA, 200 hp at 240 V AC 50/60 Hz conforming to CSA, 150 hp at 200 V AC 50/60 Hz conforming to CSA, 1300 hp at 1500 V AC 50/60 Hz conforming to CSA, 1000 hp at 1000 V AC 50/60 Hz conforming to CSA |
| Height | 356 mm |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| [Ue] rated operational voltage | power circuit: <= 1000 V AC 50/60 Hz |
| Environment | |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Operating altitude | 3600...4500 m |
| IP degree of protection | IP00 conforming to IEC 60529 |
| Ambient air temperature for storage | -40-80 °C |
| Vibration resistance | 2 gn 10-500 Hz |
| Shock resistance | 10 gn contactor opened, 10 gn contactor closed |
| Standards | IEC 60947-4-1, EN 60947-4-1 |
| Ambient air temperature for operation | -5-55 °C |
