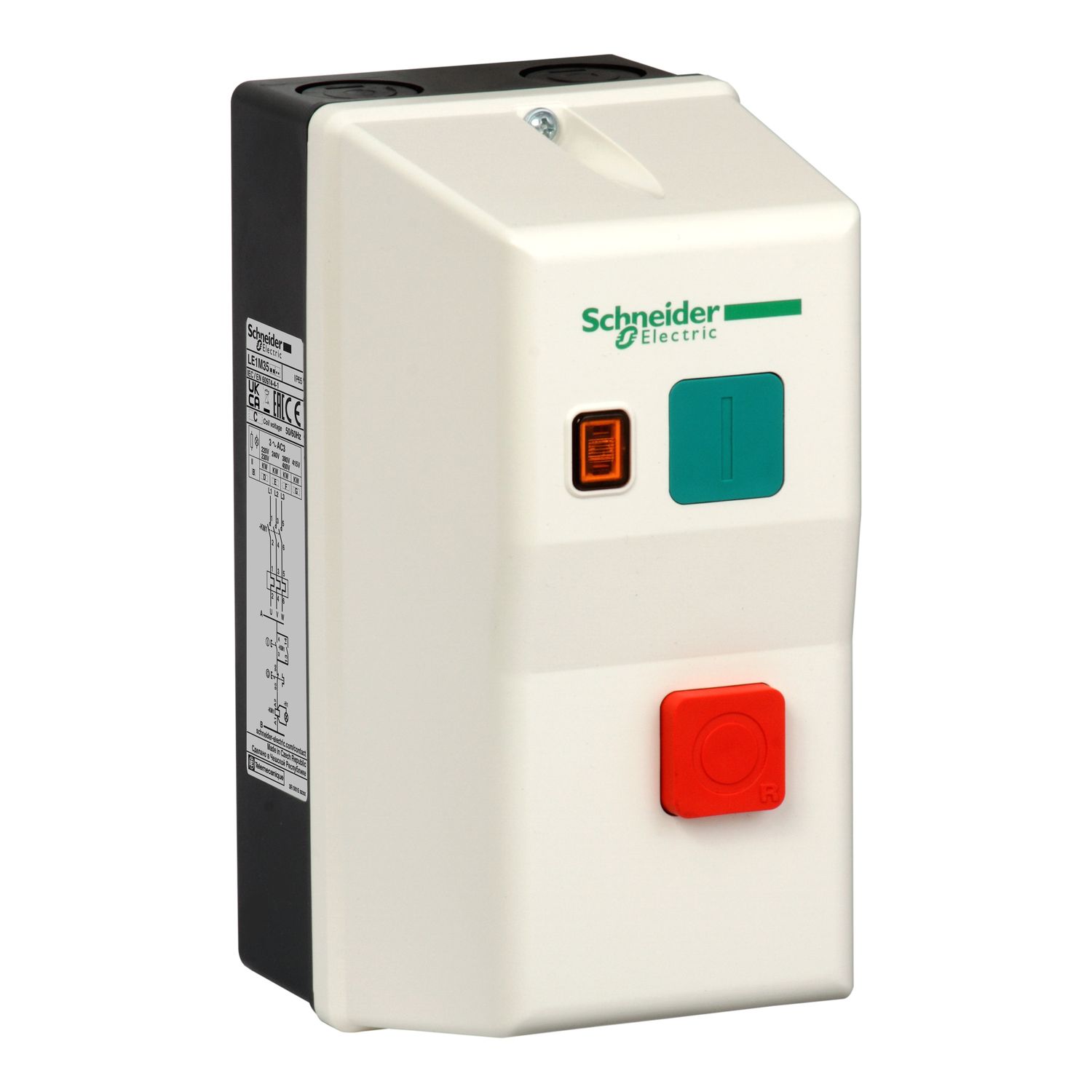

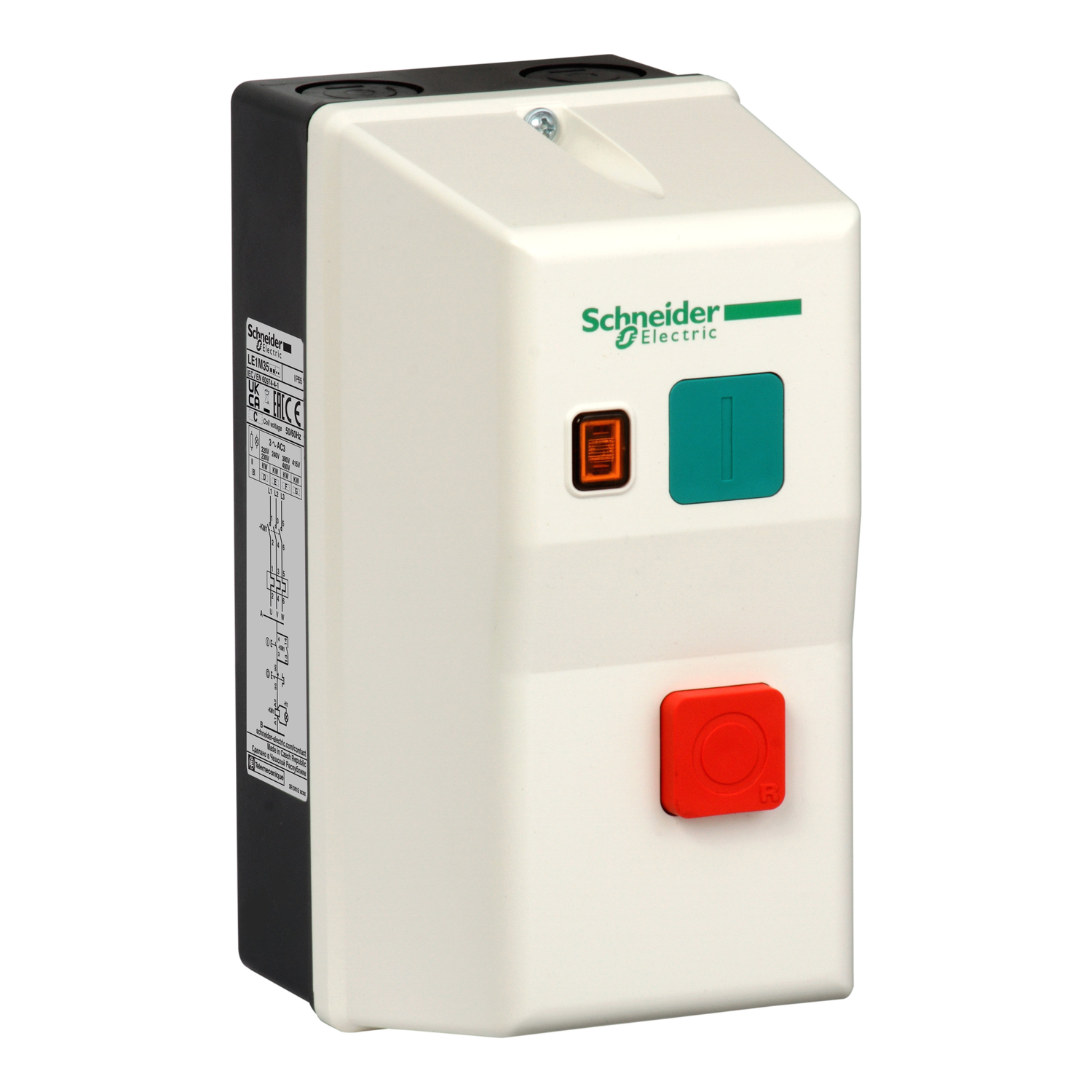

TeSys LE enclosed DOL starter, including 1 LC1K contactor and 1 LR2K thermal overload relay, for 3-phase non-reversing motor control applications up to 2.2kW at 400V. It includes a LC1K contactor with 240V AC control circuit, and a LR2K thermal overload relay with 3.7-5.5A adjust range. ON/OFF motor control by a green push-button start (I) and a red push-button stop/reset (O), with a yellow operating indicator. Self-extinguishing ABS material enclosure with IP65 protection. To be combined with an external short circuit protection component, to reach a type 1 or type 2 coordination. Conforming to IEC 60947-4-1, environmental compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LE1M |
| Device application | standard |
| Motor power kW | 2.2 kW at 380/400 V AC 50/60 Hz, 1.1 kW at 220/230 V AC 50/60 Hz, 2.2 kW at 415 V AC 50/60 Hz, 0.75 kW at 240 V AC 50/60 Hz |
| Control type | push-button stop/reset red O, push-button start green I |
| Utilisation category | AC-3 |
| Device composition | thermal overload relay, neutral terminal, earth terminal, contactor |
| Range | TeSys |
| Product name | TeSys LE |
| Product or component type | enclosed DOL starter |
| Thermal protection adjustment range | 3.7-5.5 A |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Complementary | |
| Depth | 108 mm |
| Width | 78 mm |
| Compatibility code | LE1M |
| Local signalling | operating: LED (yellow) |
| Cable entry number | 2 Pg 16 top, 2 Pg 21 bottom, 2 Pg 13 bottom, 2 ISO25 bottom, 2 ISO20 bottom, 2 Pg 21 top, 2 Pg 13 top, 2 ISO25 top, 2 Pg 16 bottom, 2 ISO20 top |
| Net weight | 0.6 kg |
| Height | 160 mm |
| Environment | |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Environmental characteristic | standard environment |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Standards | IEC 60947-4-1 |
| Ambient air temperature for operation | -5-40 °C |
| Product certifications | UKCA |
