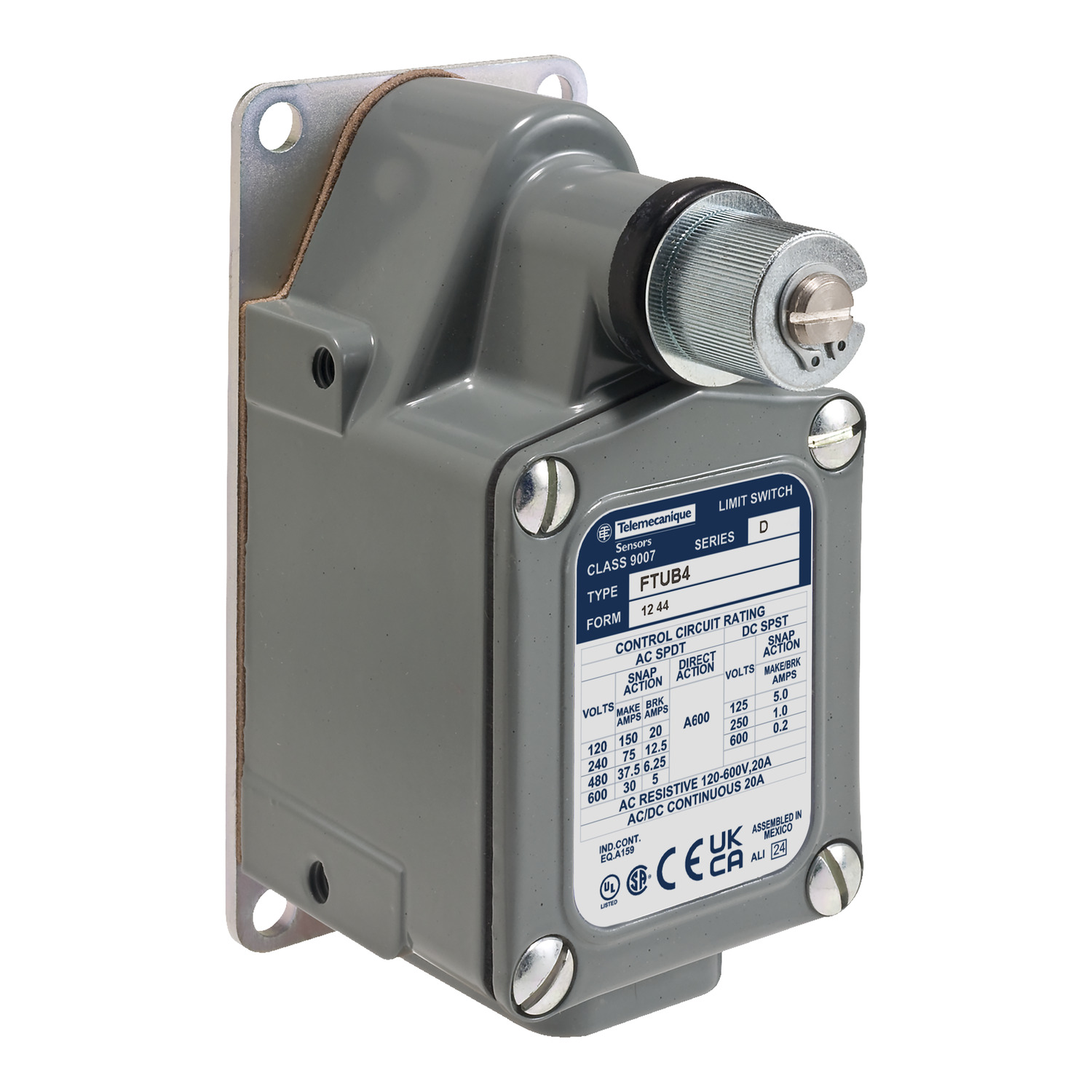

This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has a single pole double throw, double break, form Z, snap action contacts. It provides switch actuation of CW (from left). The limit switch has a spring return without operating lever operator and supports the lateral approach. The movement of operating head is rotary. It is a limit switch with a rated voltage of 600V AC and rated operating current of 20A. It is furnished with screw clamp terminals for electrical connection. It is an IP67 and NEMA 1/2/4/12/13 rated product. This limit switch has a fixed body, made of cast zinc. Its dimensions are 57.15mm (width) x 86.61mm (depth) x 118.36mm (height). It weighs 1.13kg. It is suitable for foundry casting applications. The 9007 T/FT mill and foundry for severe duty applications, convertible sequences, 59mm housing, including spring return, maintained and neutral position versions. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
