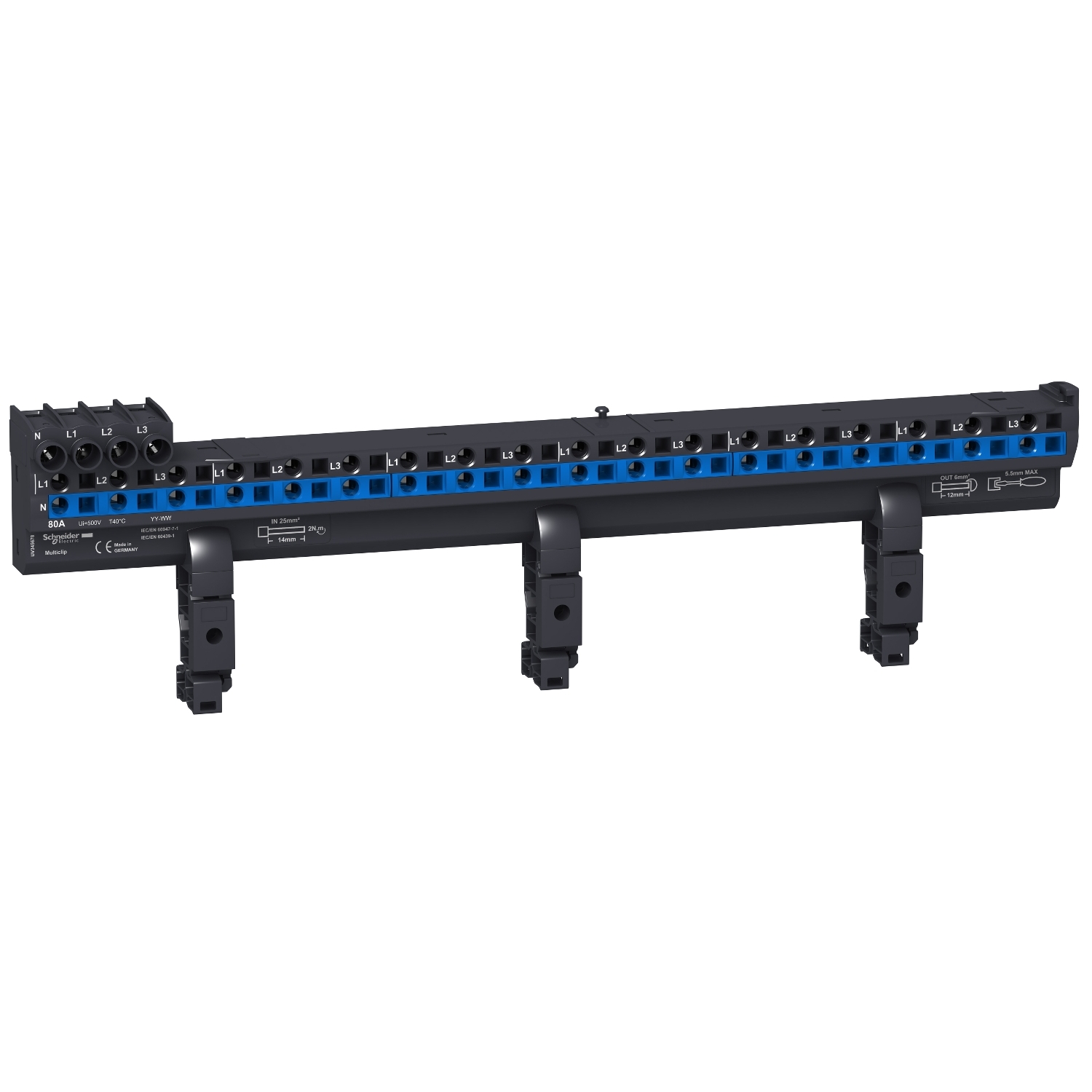

This Linergy FM device feeder can be installed on a standard DIN rail, on a plain or slotted mounting plate. It is dedicated to 3P+N installations. The total connection capacity is 36 holes (18 for phase and 18 for neutral). The Ie rated operational current is 80A. The Rated peak withstand current Ipk/60ms is 16kÂ. The width in 9mm pitches is 48. The incoming terminals is for cables up to 25mm2. The terminal capacity is 36 x 10mm2 for downstream connections with cables without ferule. The Ui Rated insulation voltage is 500VAC. The Uimp Rated impulse withstand voltage is 6kV. The Ue rated operational operating voltage is 440VAC. The operating frequency is 50Hz or 60Hz. The degree of protection is IP20. The operating temperature is -25°C to + 55°C. It complies with IEC/EN 60947-7-1 and IEC/EN 61439-1 & 2 standards.
