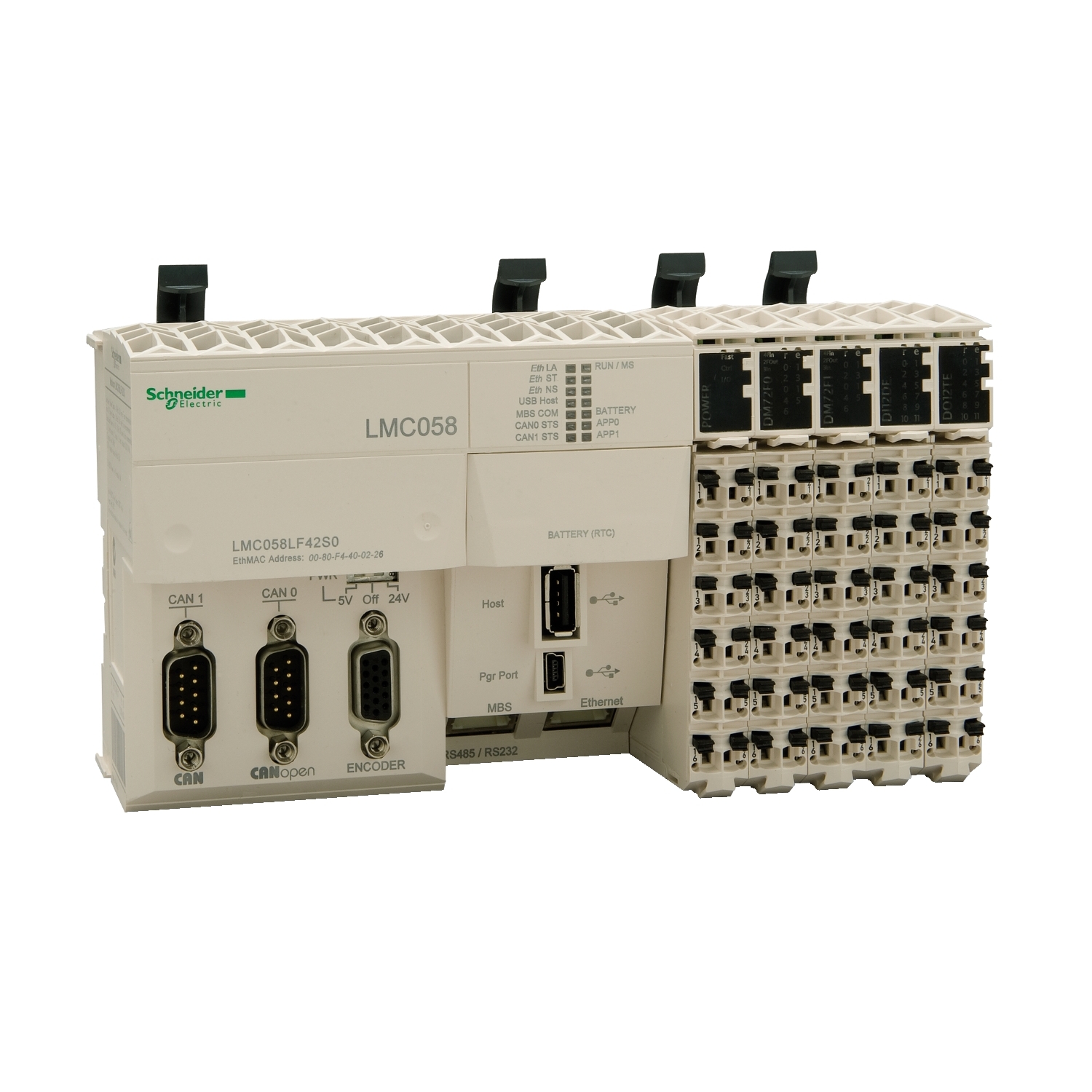

This product is part of the Modicon LMC058 range, an offer of motion controllers for coordinated, synchronised and interpolated motion control. This motion controller provides 42 discrete I/Os and 3V CR2477M lithium battery. It is a compact base with a rated supply voltage of 24V DC and a rated current of 0.04A for embedded expert modules power, 10A for I/O power segment, 0.28A for main supply. It provides 26 totally discrete inputs, 10 for fast input, 12 for input, 4 for regular input and 16 totally discrete outputs, 12 for outputs, 4 for fast outputs. It supports 128MB flash and 64MB RAM memory. It is an IP20 rated product. Its dimensions are 175mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.55kg. This product is certified by CE, CULus, CSA, C-Tick and GOST-R. It meets UL 508, IEC 61131-2, CSA C22.2 No 213 and CSA C22.2 No 142 standards. Compact and totally expandable, the Modicon Motion Controllers offer performant solutions in terms of motion control for synchronized axis, speed control, high speed counting and communication networks for machine builders. A full range of scalable controllers to design all your applications, thanks to a single software suite, SoMachine, including the same Motion Libraries based on PLCopen, Embedded I/O and numerous field buses.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete I/O number | 42 |
| Range of product | Modicon LMC058 |
| Product specific application | - |
| Battery type | 3 V CR2477M lithium battery |
| Product or component type | motion controller |
| Complementary | |
| Insulation | non-insulated between channels, between channels and internal logic at 500 V AC |
| Discrete input number | 4 for regular input, 12 for input, 10 for fast input |
| Battery life | 1.5 year(s) |
| Supply voltage limits | 20.4-28.8 V |
| Discrete output voltage | 24 V DC |
| Configurable filtering time | 4 ms for fast input/regular input and fast output, 12 ms for fast input/regular input and fast output, 1.5 ms for fast input/regular input and fast output, 0 ms for fast input/regular input and fast output |
| Voltage state 0 guaranteed | <= 5 V for regular input, <= 5 V for fast output, <= 5 V for fast input |
| Discrete output current | 4 mA for fast output |
| Marking | CE |
| Transmission rate | 800 kbit/s for bus length of 25-25 m for CANopen, 500 kbit/s for bus length of 100-100 m for CANopen, 50 kbit/s for bus length of 1000-1000 m for CANopen, 250 kbit/s for bus length of 250-250 m for CANopen, 20 kbit/s for bus length of 2500-2500 m for CANopen, 125 kbit/s for bus length of 500-500 m for CANopen, 1000 kbit/s for bus length of 4-4 m for CANopen, 10 kbit/s for bus length of 5000-5000 m for CANopen |
| Discrete output number | 4 fast output, 12 output |
| Discrete output logic | source |
| Height | 99 mm |
| Maximum cable distance between devices | <30 m for fast input |
| Data backed up | battery variables of type retain and retain persistent |
| Counting input number | 8 counting input(s) at 200 kHz |
| [Us] rated supply voltage | 24 V DC for embedded expert modules power |
| Depth | 85 mm |
| Realtime clock | with user calibration clock, clock drift <= 6 s/month, without any user calibration clock, clock drift < 30 s/month at 25-25 °C |
| Width | 175 mm |
| Discrete input current | 4 mA for regular input, 4 mA for fast input |
| Peak current | 100 kA (duration = <= 70 s) for main supply, 1.2 A (duration = > 70 s) for main supply, 50 kA (duration = <= 150 s) for embedded expert modules power, 25 kA (duration = <= 500 s) for I/O power segment |
| Output voltage limits | 19.2...28.8 V |
| Memory type | 64 MB RAM, 128 MB flash |
| Voltage state 1 guaranteed | >= 15 V for regular input, >= 15 V for fast output, >= 15 V for fast input |
| Net weight | 0.55 kg |
| Local signalling | 1 LED red for APP1, 1 LED per channel for APP0, 1 LED green/yellow for MBS COM, 1 LED green/red for CAN1 STS, 1 LED for CAN0 STS |
| Power consumption in W | 13.03 W |
| Discrete input voltage type | DC |
| Mounting support | symmetrical DIN rail |
| Integrated connection type | 1 isolated serial link with USB type A connector, transmission rate: 480 Mbit/s, 1 isolated serial link with mini B USB connector, transmission rate: 480 Mbit/s, 1 isolated serial link with female RJ45 connectorEthernet Modbus TCP/IP with slave, physical interface: 10BASE-T/100BASE-TX, 1 encoder with female SUB-D 15 connector, 1 CAN port with male SUB-D 9 connectorCANopen with master, 1 CAN port with male SUB-D 9 connectorCANmotion bus or CANopen with master, 1 isolated serial link with female RJ45 connectorModbus with master/slave RTU/ASCII or character mode ASCII, physical interface: RS232/RS485, transmission rate: 300...115200 bps |
| Discrete input voltage | 24 V |
| [In] rated current | 10 A for I/O power segment, 0.28 A for main supply, 0.04 A for embedded expert modules power |
| Input impedance | 6 kOhm for regular input, 6 kOhm for fast input |
| Anti bounce filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
| Discrete input logic | source for input, sink for regular input, sink for fast input |
| Environment | |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 conforming to IEC 60664 |
| Disturbance radiated/conducted | CISPR 11 |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
| Electromagnetic compatibility | conducted and radiated emissions conforming to CISPR 11, conducted RF disturbances conforming to IEC 61000-4-6, surge immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 1 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 4 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (on contact) conforming to IEC 61000-4-2 |
| Ambient air temperature for operation | 0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation) |
| Operating altitude | 0...2000 m |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail |
| Storage altitude | 0-3000 m |
| Standards | IEC 61131-2, UL 508, CSA C22.2 No 213, CSA C22.2 No 142 |
| Product certifications | GOST-R, CSA, cULus, C-Tick |
