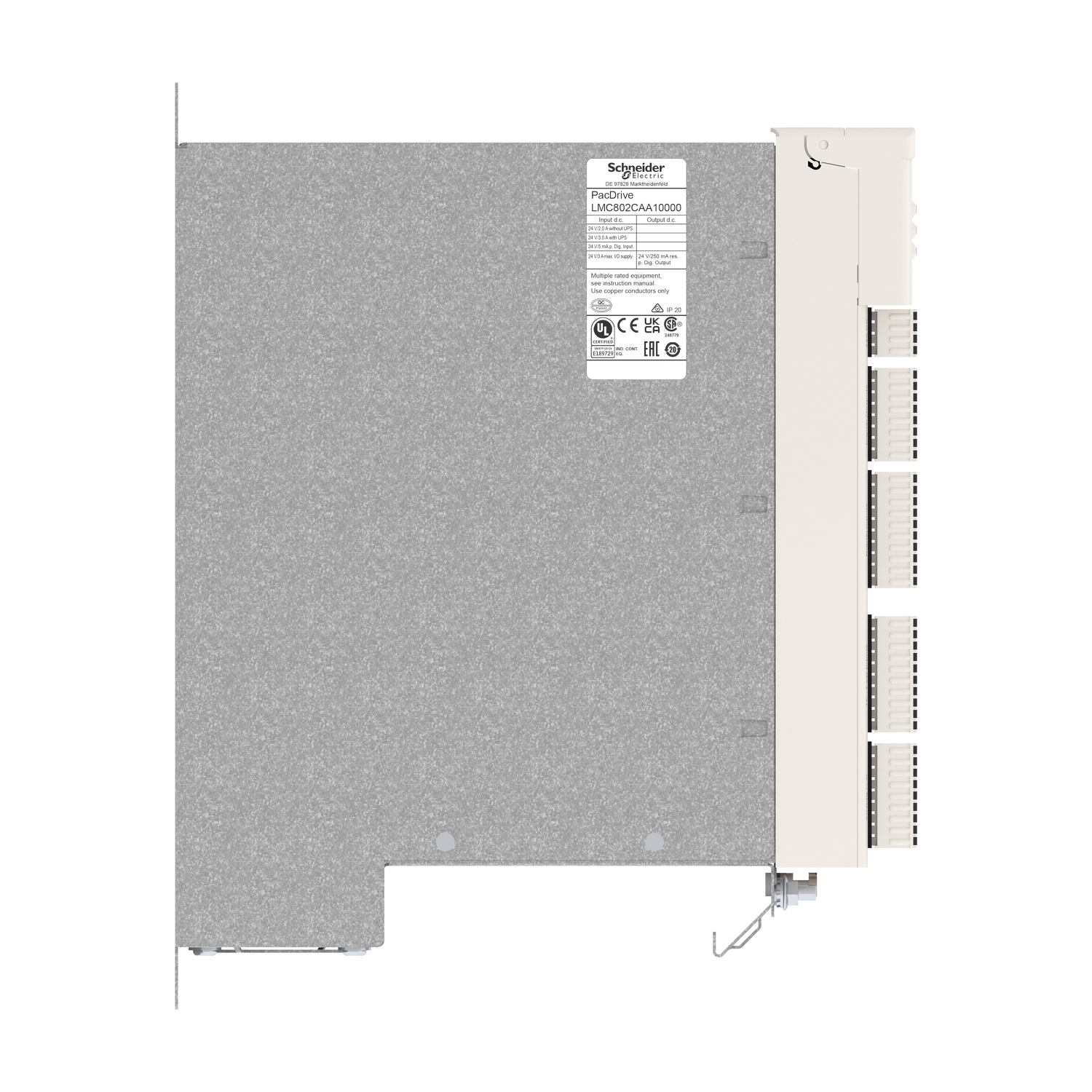

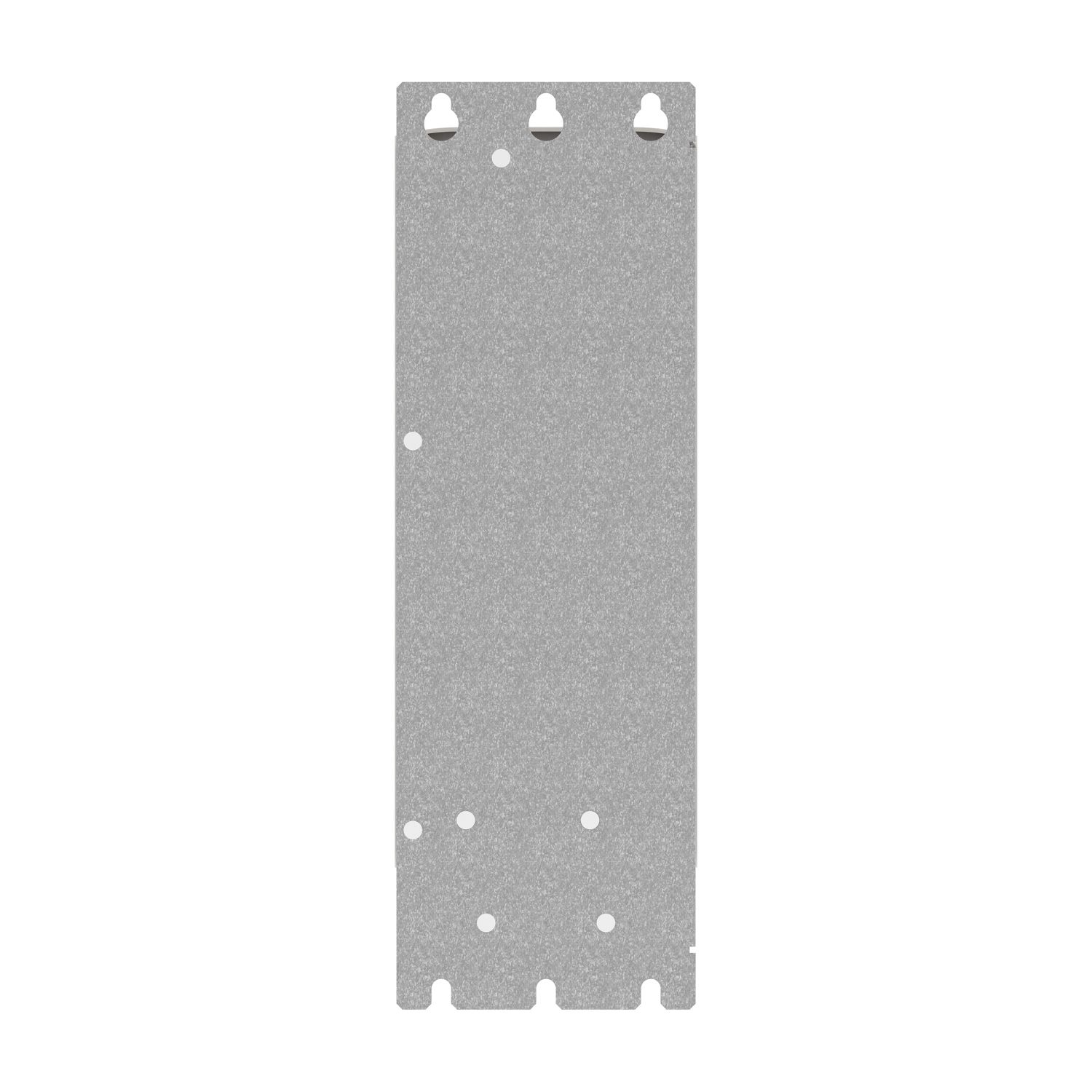

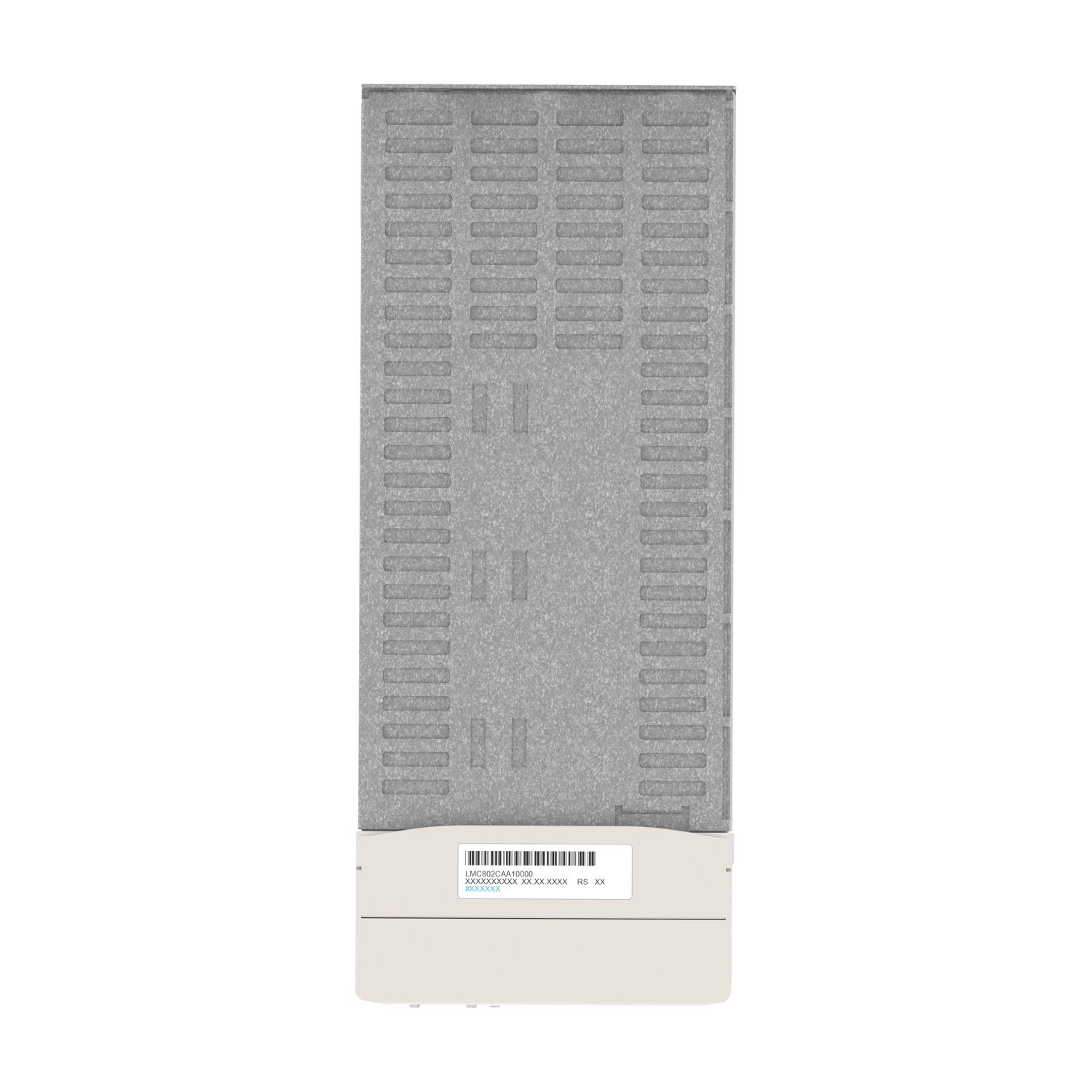

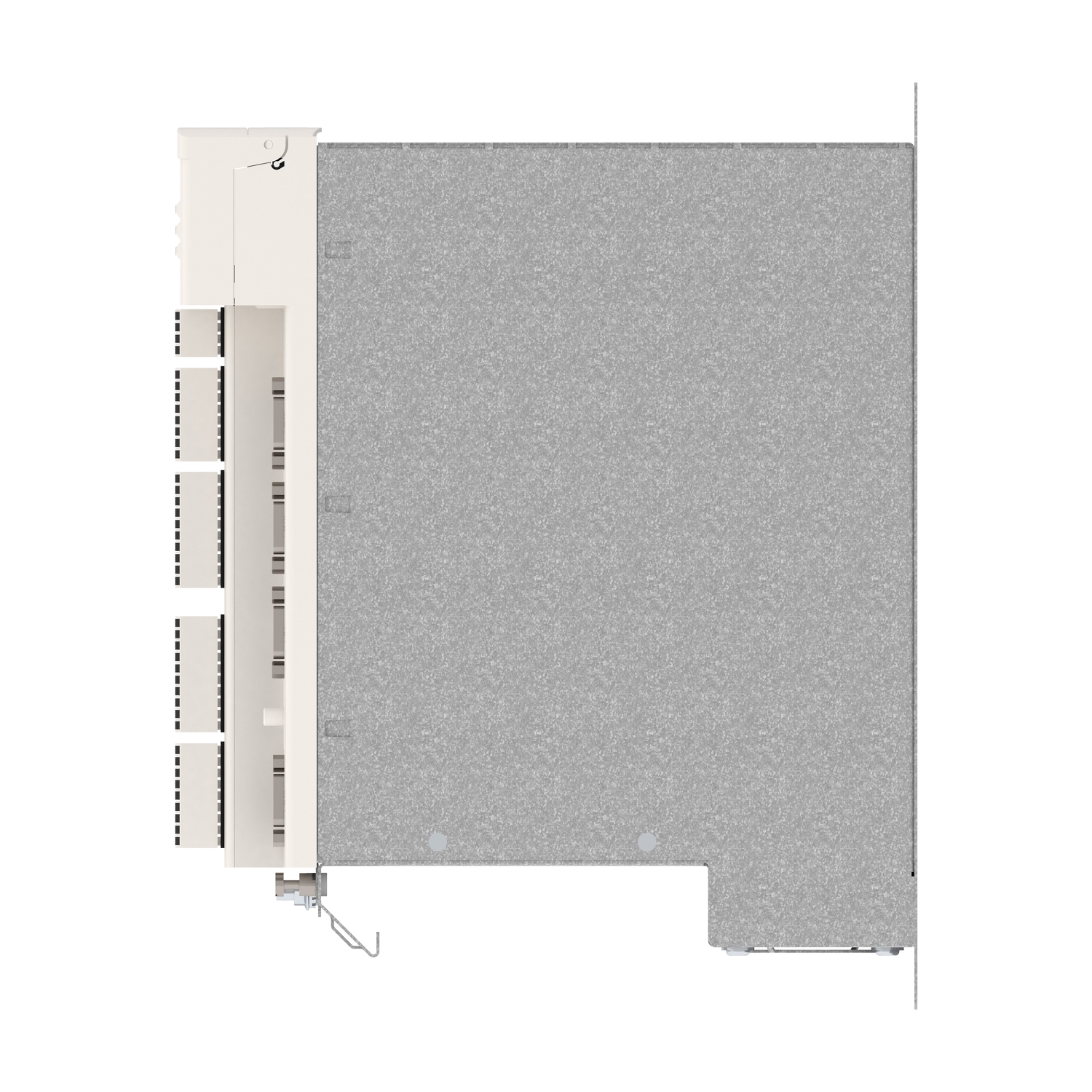

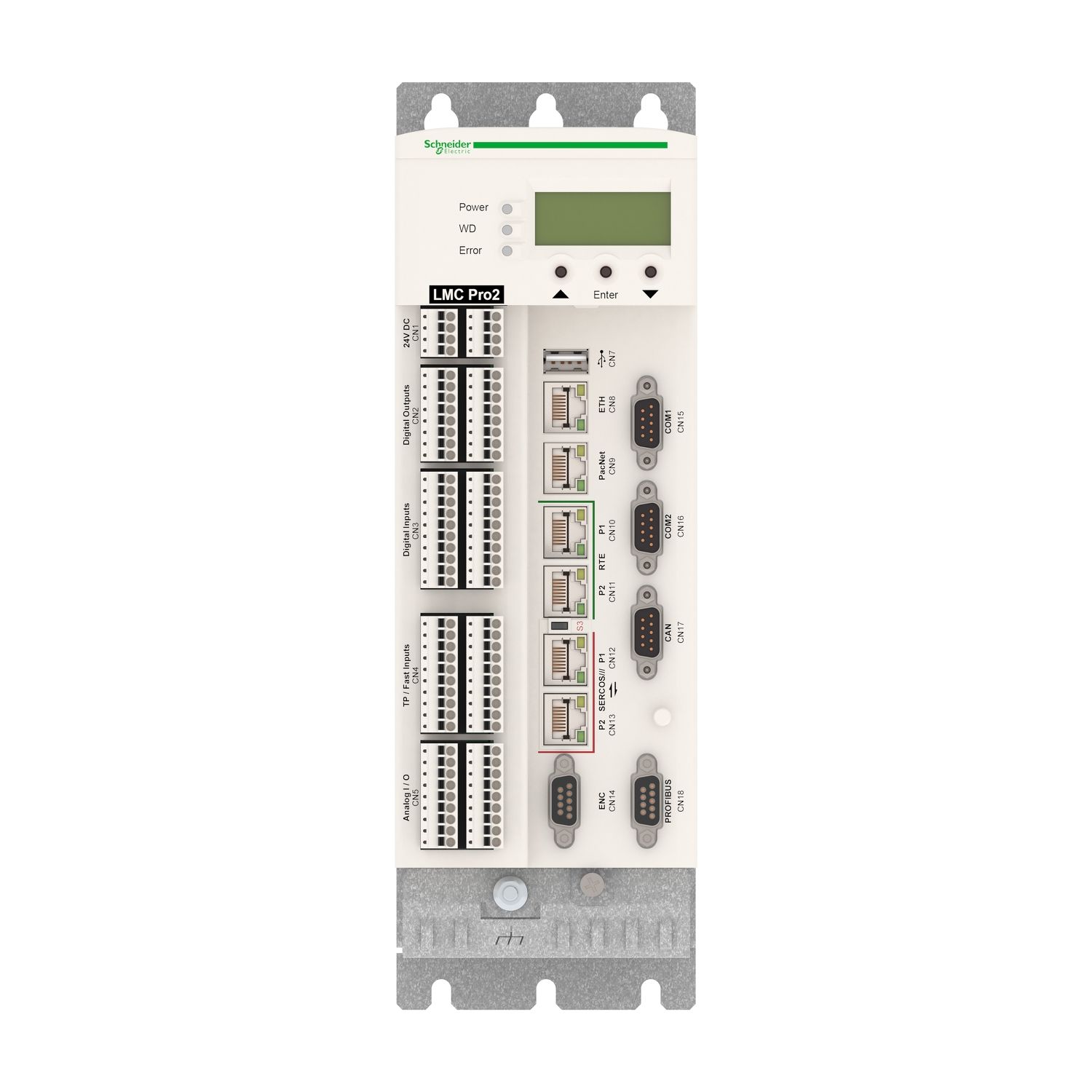

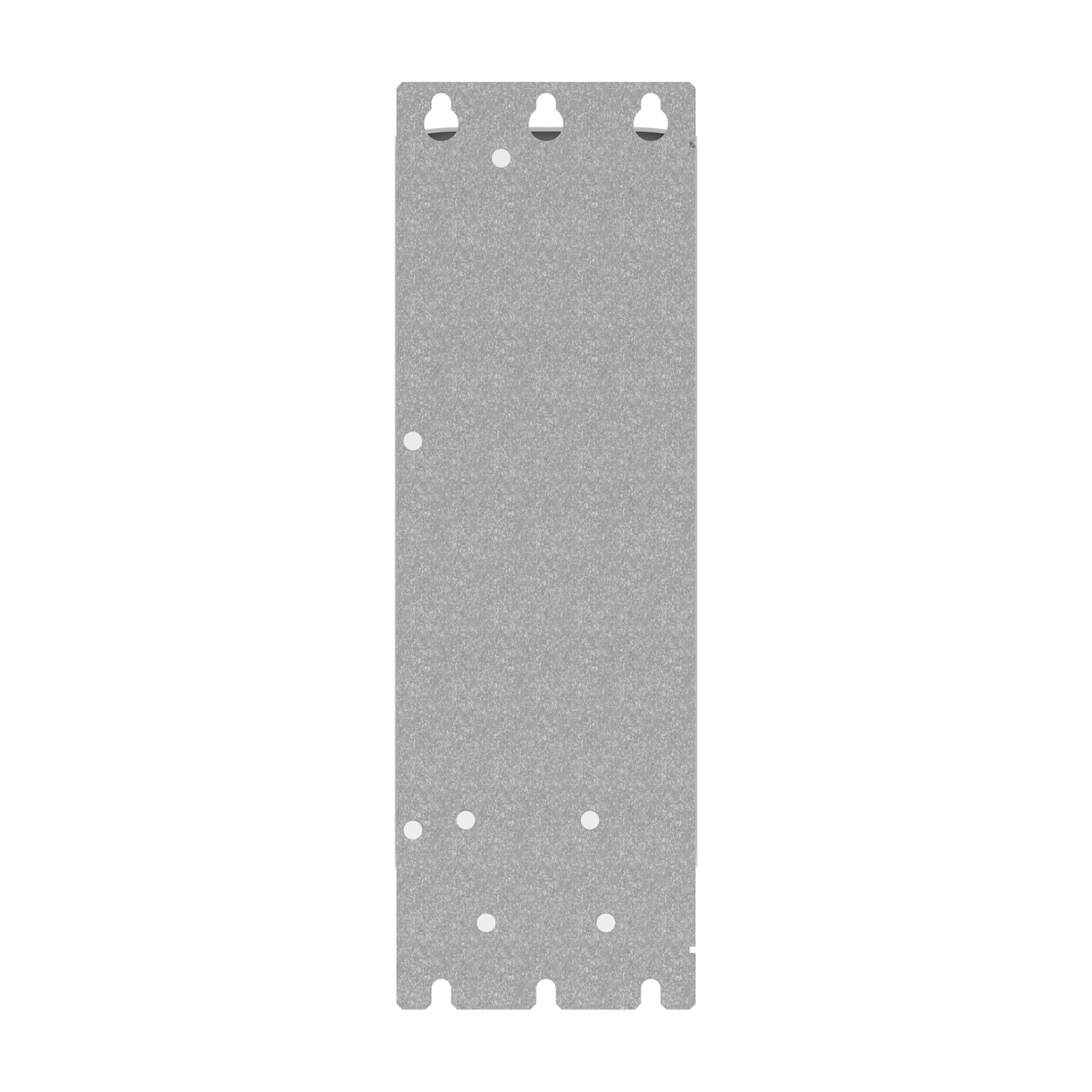

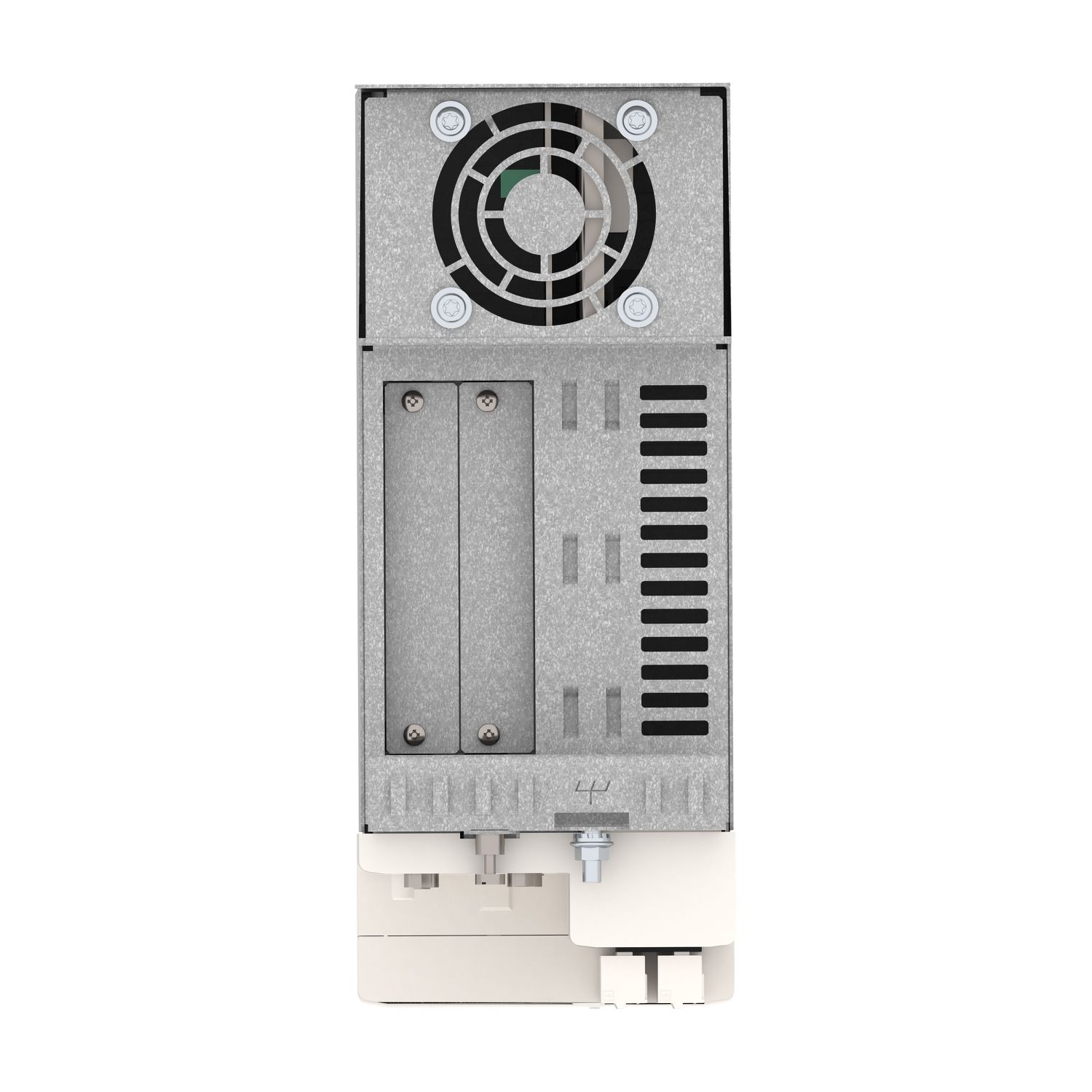

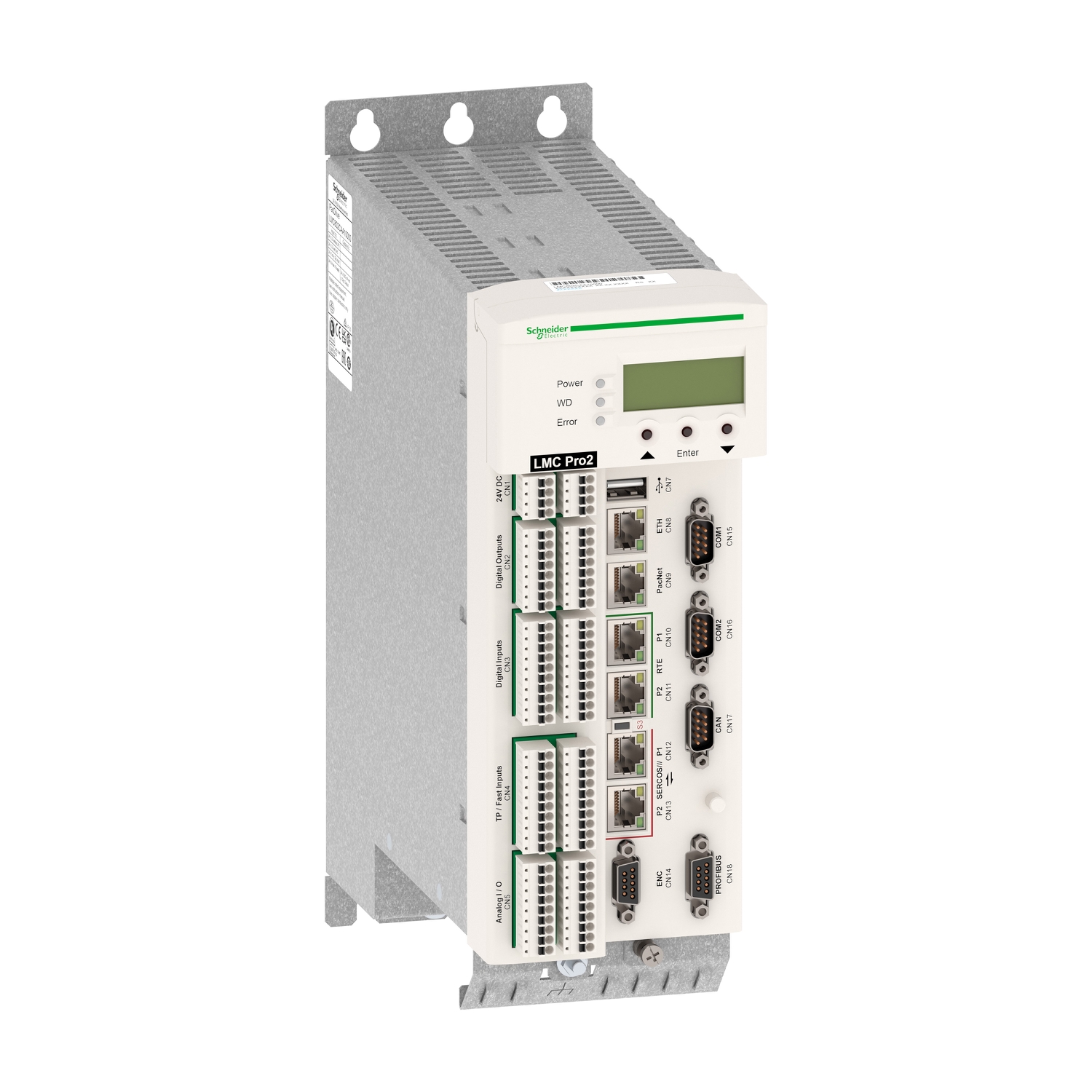

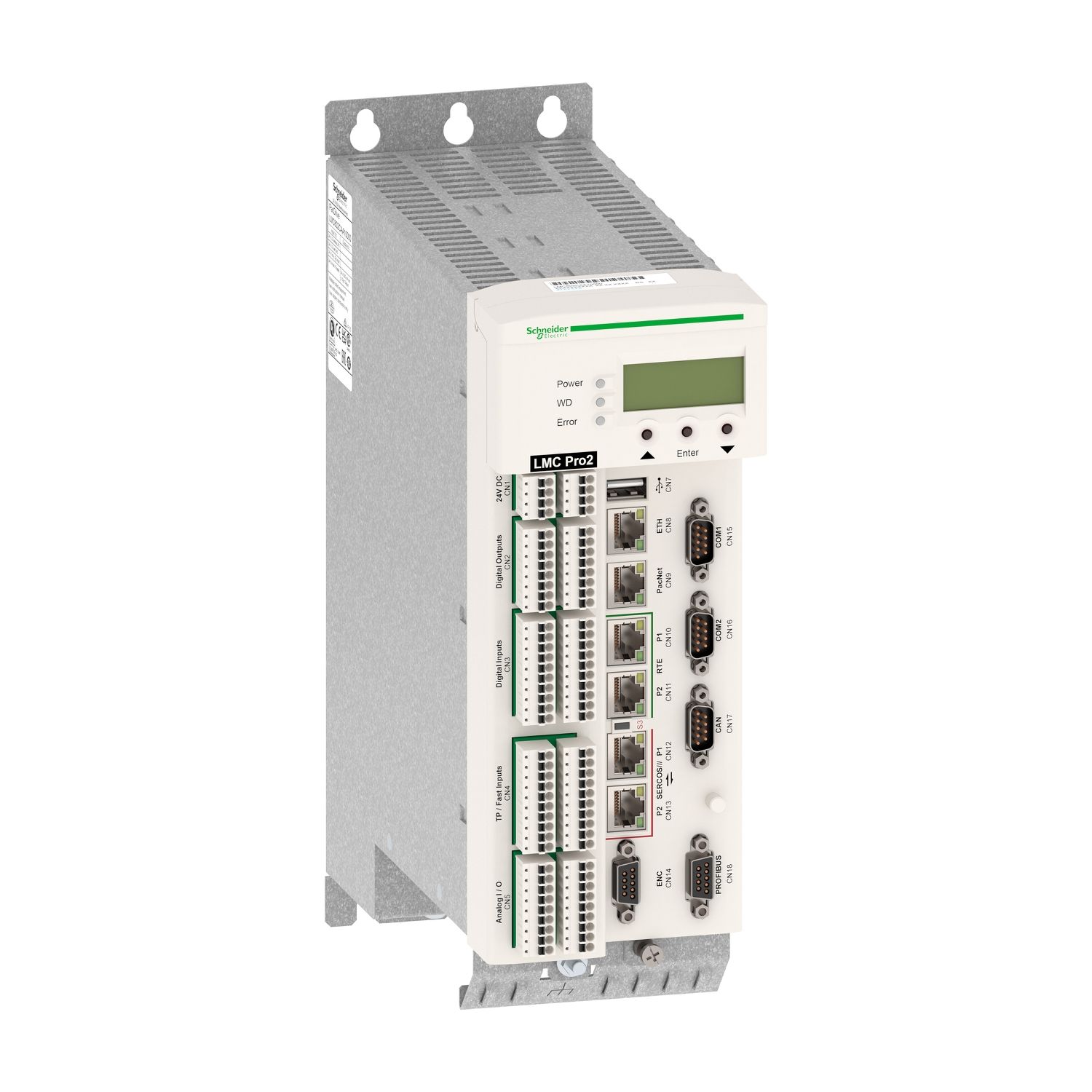

Motion controller LMC802 130 axis - Acc kit - Basic

Manufacturer: Schneider Electric

SKU: LMC802CAA10000

GTIN: 3606485458441

Catalog

User guide

Environmental Disclosure

Instruction sheet

Circularity Profile

Declaration of conformity

Availability: Out of stock

Old price: $11,218.90 inc GST

Price: $16,155.22 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 130 axis, 20 discrete inputs, 4 for interrupt input and 16 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 250mA and a power consumption of 36W. It is an IP20 rated product. Its dimensions are 100mm (width) x 243mm (depth) x 310mm (height). It weighs 3.5kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.

Products specifications

Attribute name	Attribute value
Main
Range of product	PacDrive 3
Product or component type	motion controller
Complementary
Maximum number of I/O expansion module	2
Discrete input number	16 for touch probe input conforming to IEC 61131-2 Type 1, 4 for interrupt input conforming to IEC 61131-2 Type 1, 20 for digital input conforming to IEC 61131-2 Type 1
Supply	power supply: 24 VDC, <1 A
Number of axis	130
Product compatibility	LMC802
Analogue input resolution	12 bits
[Us] rated supply voltage	24 V DC
Discrete output current	250 mA for digital output
Discrete output number	2 analog output, 16 digital output
Power consumption in W	36 W
Height	310 mm
Maximum leakage current	0.4 mA
Analogue input type	current analog input: - 20...20 mA, voltage analog input: - 10...10 V
Depth	243 mm
Width	100 mm
Discrete input current	5 mA for touch probe input, 5 mA for interrupt input, 5 mA for digital input
Integrated connection type	1 Ethernet port, connector RJ45 for protocol Ethernet 10/100/1000BASE-T, FTP/HTTP, 1 port, connector SUB-D 9 for master encoder, 1 COM2 serial link, connector SUB-D 9 for protocol RS422/RS485, 1 COM1 serial link, connector SUB-D 9 for protocol RS232, 1 port, connector SUB-D 9 for protocol Profibus DP, 1 Ethernet port, connector RJ45 for protocol PacNet, 2 Ethernet port, connector RJ45 for protocol RT-Ethernet (real-time), 1 USB port, connector USB type A, 1 CAN port, connector SUB-D 9 for protocol CANopen, 2 Ethernet port, connector RJ45 for protocol Sercos
Memory type	1 GB RAM DDR3L, 256 kB NVRAM
Analogue input number	2
Net weight	3.5 kg
Discrete input voltage type	DC
Programming language	LD (ladder), ST (structured text), CFC (continuous function chart), IL (instruction list), FBD (function block diagram), SFC (sequential function chart)
Discrete input voltage	20...33 V, 0...6 V
Input impedance	500 Ohm, 100000 Ohm for analog input
Anti bounce filtering	0.1 ms or 1 ms configurable interrupt input, 100 µs touch probe input, 1 ms or 5 ms configurable digital input
Environment
Relative humidity	5-95 % without condensation
Pollution degree	2 conforming to IEC 61131-2
IP degree of protection	IP20 conforming to EN/IEC 60529
Ambient air temperature for operation	5-55 °C
Shock resistance	150 m/s² for 6 ms (operation) conforming to EN/IEC 60721-3-3
Vibration resistance	10 m/s² at 8.4-150 Hz, 3.5 mm at 5-8.4 Hz
Standards	EN/IEC 61131-2, CSA C22.2 No 14, UL 508C, CSA C22.2 No 274
Product certifications	CE, EAC, cULus, CSA
