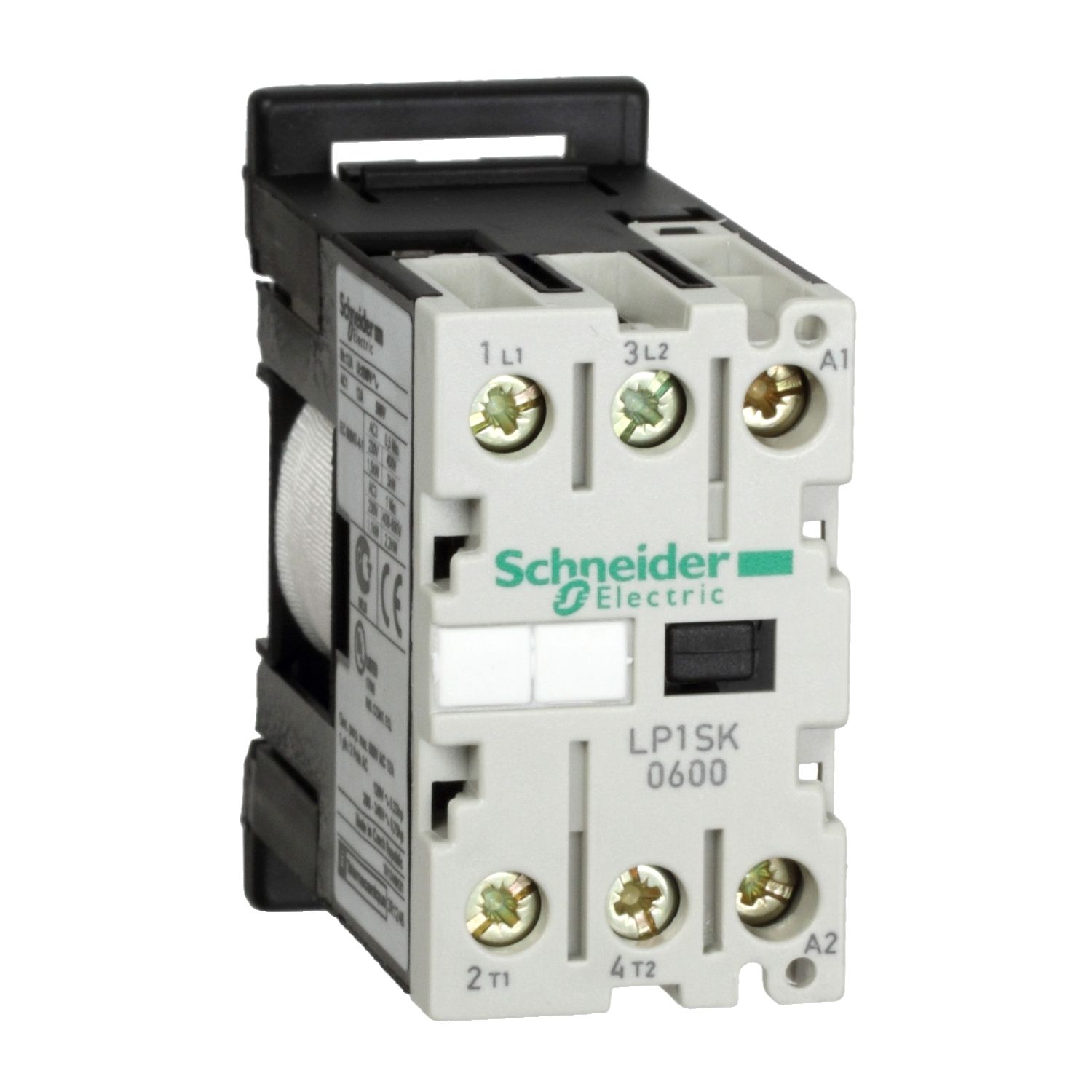

TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 48V DC control circuit with no inrush consumption, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Icw] rated short-time withstand current | 50 A 55 °C for power circuit |
| Device short name | LP1SK |
| [Ui] rated insulation voltage | 690 V conforming to CSA C22.2 No 14, 690 V conforming to UL 508, 690 V conforming to BS 5424, 690 V conforming to VDE 0110 group C, 690 V conforming to IEC 60947 |
| Operating time | 8...12 ms coil energisation and NO closing, 4...6 ms coil de-energisation and NO opening |
| Poles description | 2P |
| Mechanical durability | 10 Mcycles |
| Tightening torque | 0.8 N.m - on connector - with screwdriver pozidriv No 1 |
| Maximum operating rate | 1200 cyc/h |
| [Ie] rated operational current | 12 A (at <55 °C) AC AC-1 |
| Utilisation category | AC-1 |
| Pole contact composition | 2 NO |
| Range | TeSys |
| Connections - terminals | power circuit: connector 2 cable(s) 1.5-4 mm²solid, power circuit: connector 2 cable(s) 0.35-2.5 mm²flexible without cable end, power circuit: connector 2 cable(s) 0.35-1.5 mm²flexible with cable end, power circuit: connector 1 cable(s) 1.5-6 mm²solid, power circuit: connector 1 cable(s) 0.5-6 mm²flexible without cable end, power circuit: connector 1 cable(s) 0.35-6 mm²flexible with cable end |
| Associated fuse rating | 16 A gI at <= 440 V for power circuit conforming to IEC 60947 |
| Irms rated making capacity | 66 A at 690 V AC conforming to NF C 63-110, 66 A at 690 V AC conforming to IEC 60947 |
| Product or component type | mini contactor |
| Rated breaking capacity | 52 A at <= 400 V for power circuit conforming to IEC 60947, 52 A at <= 400 V for power circuit conforming to NF C 63-110 |
| Contactor application | resistive load |
| Control circuit type | DC standard |
| Mounting support | rail |
| Standards | CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1 |
| [Ith] conventional free air thermal current | 12 A (at 55 °C) for power circuit |
| Range of product | TeSys SK |
| Average impedance | 4 mOhm - Ith 12 A 50 Hz |
| [Ue] rated operational voltage | power circuit: 690 V AC 50/60 Hz |
| [Uc] control circuit voltage | 48 V DC |
| Product certifications | cULus, EAC, UKCA, CE, CB Scheme |
| Complementary | |
| Heat dissipation | 2.2-2.2 W |
| Compatibility code | LP1SK |
| Inrush power in W | 2.2-2.2 W (at 20 °C) |
| Hold-in power consumption in W | 2.2-2.2 W at 20 °C |
| Control circuit voltage limits | drop-out: 0.1...0.75 Uc (at <50 °C), operational: 0.85...1.1 Uc (at <50 °C) |
| Environment | |
| Depth | 55.5 mm |
| Width | 27 mm |
| Operating altitude | 2000 m without derating |
| IP degree of protection | IP2X conforming to VDE 0106 |
| Protective treatment | TC conforming to DIN 50015, TC conforming to IEC 60068 |
| Ambient air temperature for storage | -50-70 °C |
| Net weight | 0.132 kg |
| Ambient air temperature for operation | -20-50 °C |
| Height | 56 mm |
