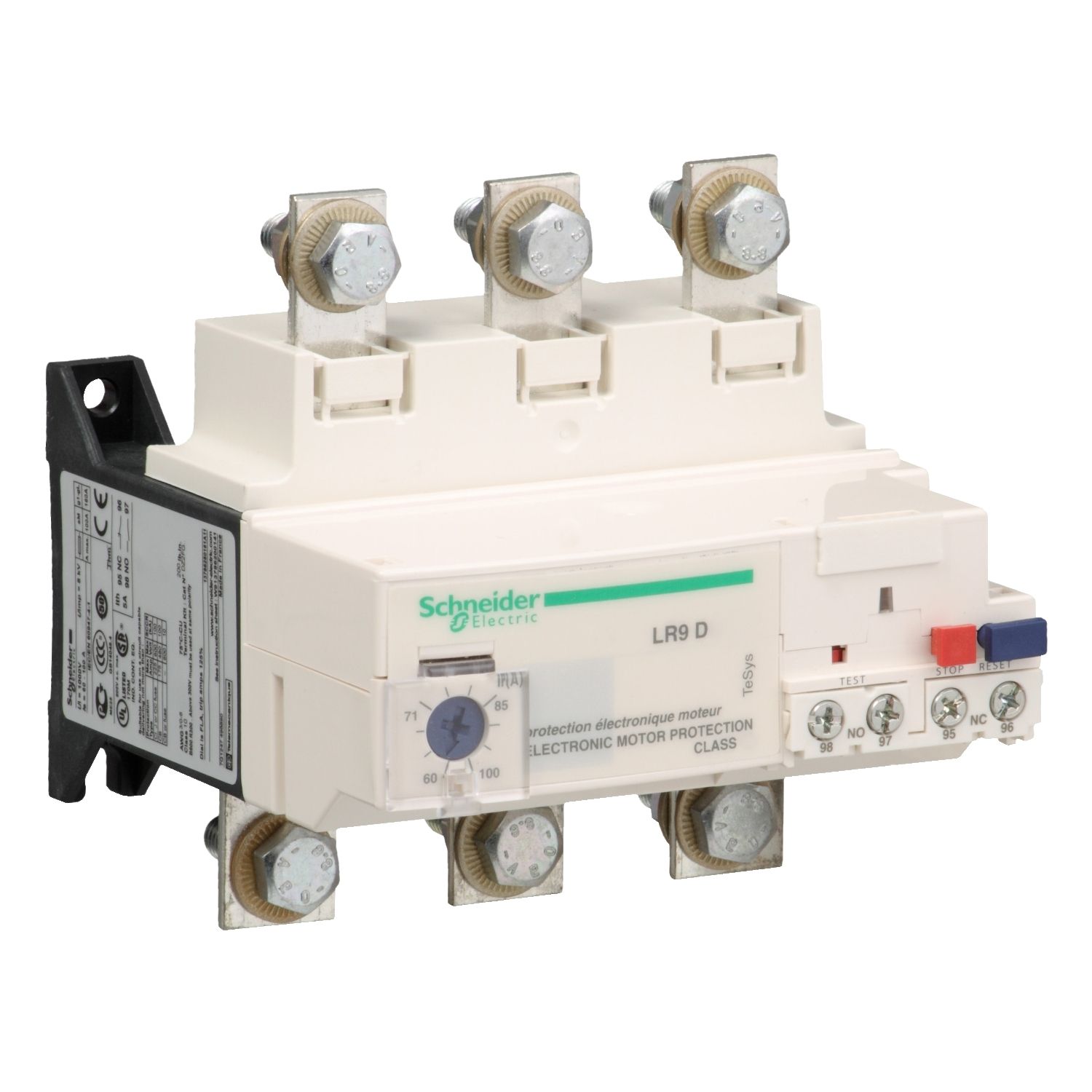

Thermal Overload Relays, TeSys LR.D, TeSys Deca, 60...100A, class 10

Manufacturer: Schneider Electric

SKU: LR9D5367

GTIN: 3389110113099

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $1,177.00 inc GST

Price: $467.15 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys LR9D electronic overload relay, 100A/1000V, thermal setting range 60-100A, tripping class 10, for protection of 3-phase motors 37-45kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by bolt terminals for bars or cables with lugs, it connects directly to the bottom terminals of 3-pole contactors LC1D115, D150. Mounting on DIN rail or screw fixing, separated from contactor, can be done without accessories. Multi-standards certified (IEC, UL, CSA, CCC, Marine).

Products specifications

Attribute name	Attribute value
Main
Device short name	LR9D
Product compatibility	NSX circuit breaker, LC1D150, LC1D115
[Ui] rated insulation voltage	power circuit: 600 V conforming to UL, power circuit: 600 V conforming to CSA, power circuit: 1000 V conforming to IEC 60947-4-1
Range	TeSys
Thermal overload class	class 10 conforming to IEC 60947-4-1
Product name	TeSys Deca, TeSys LRD
Product or component type	electronic thermal overload relay
Relay application	motor protection
Network type	AC
Thermal protection adjustment range	60-100 A
Signalling function	alarm
Complementary
Temperature compensation	-20-60 °C
[Us] rated supply voltage	24 V DC
Depth	125 mm
Width	115 mm
Compatibility code	LR9D
Mounting support	rail, under contactor
Control type	blue push-button: reset, red push-button: stop
Tightening torque	control circuit: 1.2 N.m - on screw clamp terminals, power circuit: 18 N.m - on bars M8, alarm circuit: 0.45 N.m - on screw clamp terminals
Tripping threshold	1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1, 1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1
Supply voltage limits	17-32 V
Maximum voltage drop	<2.5 V closed state
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Net weight	0.885 kg
Associated fuse rating	4 A BS for signalling circuit, 4 A gG for signalling circuit
Switching capacity in mA	0...150 mA
[Ue] rated operational voltage	690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Phase failure sensitivity	tripping in 4 s +/- 20 % conforming to IEC 60947-4-1
Connections - terminals	alarm circuit: screw clamp terminals 1 cable(s) 0.5-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 0.5-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.5-1.5 mm² flexible without cable end, power circuit: bars
[Ith] conventional free air thermal current	5 A for signalling circuit
Auxiliary contact composition	1 NO + 1 NC
Height	118 mm
Network frequency	50...60 Hz
Environment
Operating altitude	<= 2000 m without derating
Ambient air temperature for storage	-60-70 °C
IP degree of protection	IP20 conforming to IEC 60529
Dielectric strength	1.89 kV at 50 Hz conforming to IEC 60947-1
Ambient air temperature for operation	-20-60 °C without derating conforming to IEC 60947-4-1
Climatic withstand	conforming to IACS E10
Standards	GB/T 14048.5, GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Mechanical robustness	shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7, vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Product certifications	UKCA, CCC, CSA, UL
