Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Poles description | 3 x 4P: fixed INS100...160 vertical installation, 3 x 3P: fixed INS100...160 vertical installation, 4 x 4P: fixed INS40...80 vertical installation, 4 x 3P: fixed INS40...80 vertical installation, 4 x 3P or 4P: fixed Vigi NSXm vertical installation, 4 x 4P: fixed NSXm vertical installation, 5 x 3P: fixed NSXm vertical installation |
| Device application | modular distribution application |
| Type of rail | adjustable |
| Range | Prisma |

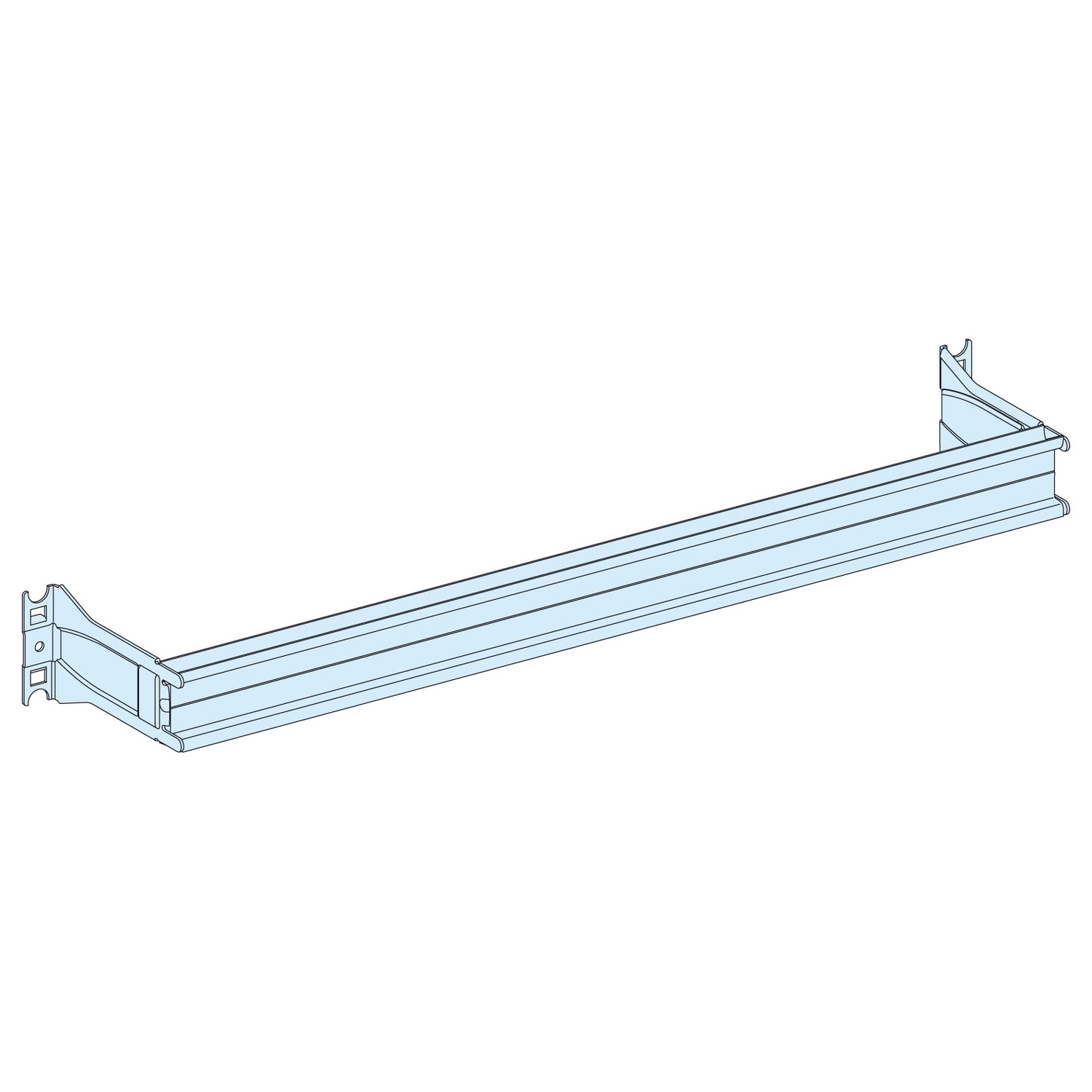

| Product or component type | rail |
| Accessory / separate part category | installation accessory |
| Installed device | EasyPact: TVS GZ1E + LC1E09...E32 - vertical installation, TeSys: GV2 + LC1D09...D40 - vertical installation, TeSys: LC1D09...D95 - vertical installation, EasyPact: TVS <= 95 A - vertical installation, ComPact: fixed INS100...160 - control: direct front rotary handle - vertical installation, ComPact: fixed INS40...80 - control: direct front rotary handle - vertical installation, ComPact: fixed Vigi NSXm with earth leakage protection - control: toggle - vertical installation, ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation |
| Range compatibility | Prisma Prisma iPM M framework |
| Range of product | Prisma iPM |
| Complementary | |
| Enclosure/cubicle width | 600 mm Prisma iPM M floor-standing enclosure ComPact Vigi NSXm with fixed toggle vertical 3P or 4P 4 direct 8 225 mm, 600 mm Prisma iPM M floor-standing enclosure ComPact NSXm without fixed toggle vertical 4P 4 direct 8 225 mm, 600 mm Prisma iPM M floor-standing enclosure ComPact NSXm without fixed toggle vertical 3P 5 direct 8 225 mm |
| Material | sheet metal |
| Length | useful: 432 mm |
| Depth | 400 mm maximum depth adjustment: |
| Number of vertical modules [50 mm] | 5 module(s): GV2 + LC1D09...D40, direct in floor-standing enclosure, 3 module(s): TVS <= 95 A, direct in floor-standing enclosure, 3 module(s): LC1D09...D95, direct in floor-standing enclosure, 8 module(s): Vigi NSXm with earth leakage protection, direct in floor-standing enclosure, 8 module(s): NSXm without earth leakage protection, direct in floor-standing enclosure, 5 module(s): INS100...160, connection block in floor-standing enclosure, 4 module(s): INS100...160, direct in floor-standing enclosure, 4 module(s): INS40...80, connection block in floor-standing enclosure, 5 module(s): TVS GZ1E + LC1E09...E32, direct in floor-standing enclosure, 3 module(s): INS40...80, direct in floor-standing enclosure |
| 9 mm pitches | 48 |
| Offer type | standard |
| Enclosure/cubicle description | floor-standing enclosure - width 600 mm |
| Environment | |
| Product certifications | ASEFA |
| Standards | IEC 61439-2 |
